CASE DESIGN, CONT’D: REAR VIEW OF SLIDE-IN, DRY (AMBIENT) SERVICE MERCHANDISERS

2. Case Design: Rear View Of Slide-In, Service Merchandisers

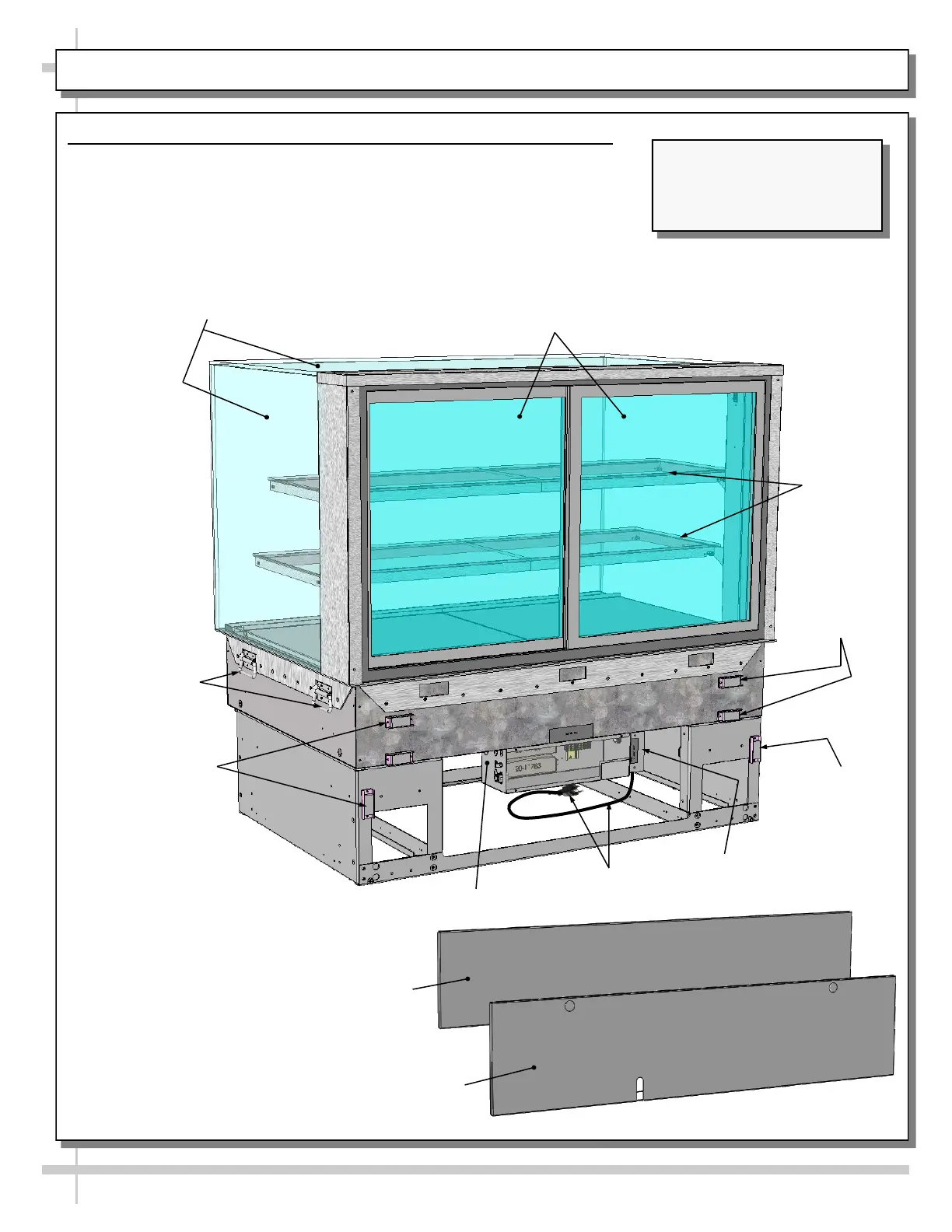

• Model NE4827DSV slide-in unit is illustrated below.

• Handles (at both ends of case) are for pushing/pulling into position.

• See previous page for front view of merchandiser.

Rear Sliding (And

Removable) Doors

Glass

Shelving

UV-Bonded Glass

Enclosure

Handles Are For

Pushing or

Pulling Unit Into

Position.

Model NE4827DSV Is Shown.

It May Not Exactly Reflect

Every Feature or Option Of

Your Particular Case.

Magnets For

Rear Panel

Upper Rear Panel

Magnet For

Lower Rear

Panel (Typ.)

Lower Rear Panel

Power Cord

And Plug

Field Access

Box

Electrical Box

Magnets For

Rear Panel
