7

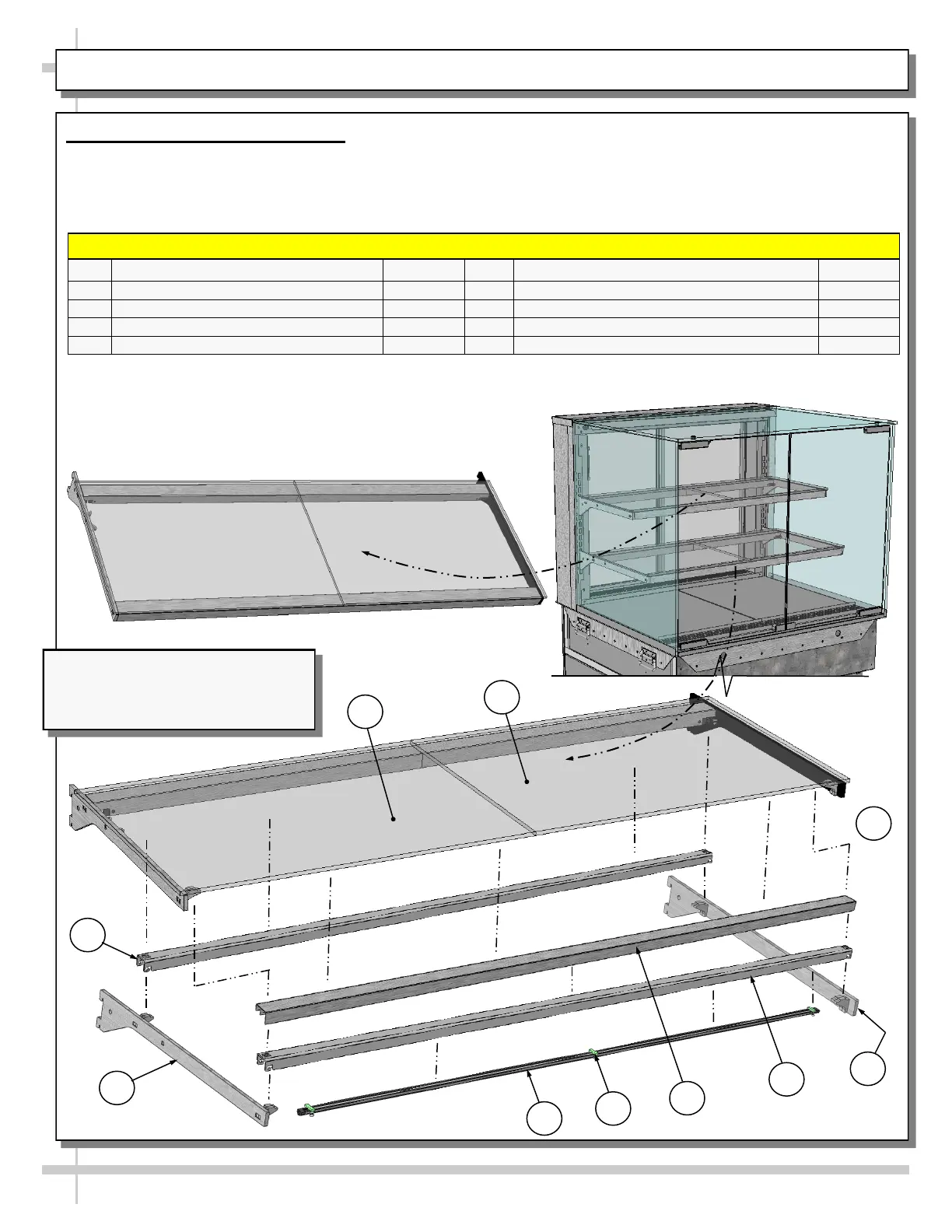

INSTALLATION, CONT’D: SHELVING ASSEMBLY COMPONENTS
3. Shelf Assembly Components
• Check that glass shelving is in proper position before
placing product in case
• Shelves may be adjusted vertically or entirely removed
from merchandiser.
5
7
8
6
• Metal shelving brackets ARE NOT able to be angled.
They are at a fixed 90° position.
• These components comprise EACH shelf assembly.
SHELF ASSEMBLY COMPONENTS
P/N COMPONENT NAME AMOUNT P/N COMPONENT NAME AMOUNT
1 GLASS, LEFT HAND* 1 5 BRACKET, RIGHT HAND 1
2 GLASS, RIGHT HAND* 1 6 LIGHT, LED 1
3 REAR/FRONT SHELF SUPPORT RAIL 2 7 CLIP, LED 2-3*
4 BRACKET, LEFT HAND 1 8 FRONT COVER~ 1
3
*Assembled with rear cover (to rest on rear support rail) before leaving factory.
**Number of LED clips depends upon case length.
~To rest on front shelf support rail.
1
4
Fully Assembled Shelf Assembly
(For Illustrative Purposes Only)
4
2
3
Model NE3627HSV Slide-In Unit
(Shown) May Not Exactly Reflect
Every Feature or Option of Your
Particular Case.
