10

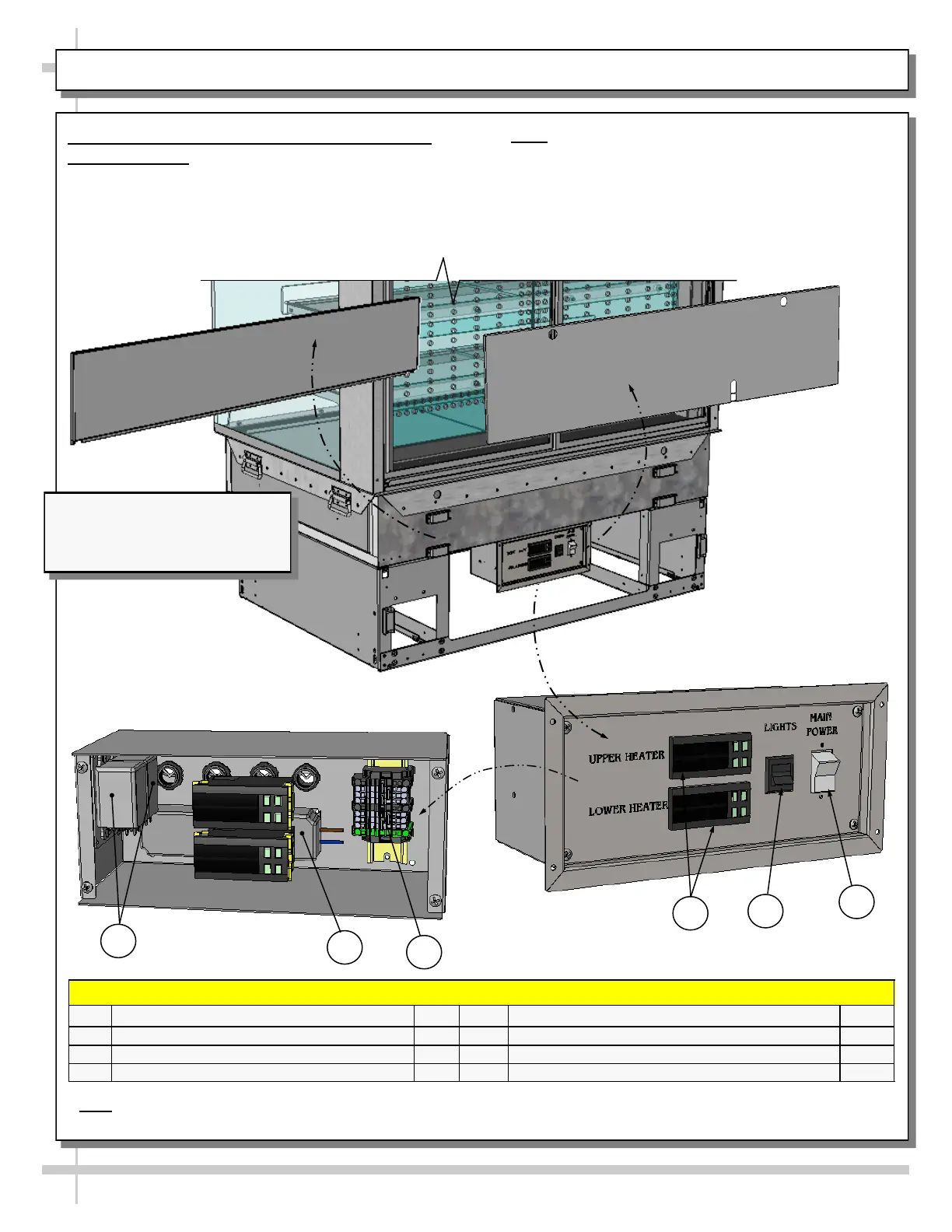

CASE DESIGN & FIELD SERVICE PARTS LIST, CONT’D: ELECTRICAL BOX COMPONENTS
2. Thermostat / LED Driver / Lights / Main
Power Switch
• Remove rear lower panel by lifting up and off; no
screw removal is required.
• Remove 4 screws from the controller/DC driver
box cover to access electrical components.
* Note: Only taller models have upper AND lower heaters (requiring two programmable controllers). All others have
only ONE heater (with ONE programmable controller).
Electrical Box
(With Faceplate Attached)
Electrical Box
(With Faceplate Removed)
• Note: Only certified electricians are to access
electrical components in case.
• After accessing controller, return components to
case in reverse order they were removed.
Model NE4835HSSV Slide-In Unit
(Shown) May Not Exactly Reflect
Every Feature or Option of
Your Particular Case.
FIELD SERVICE PARTS LIST: ELECTRICAL BOX COMPONENTS
P/N COMPONENT NAME AMT P/N COMPONENT NAME AMT
6 RELAYS 2 9 PROGRAMMABLE CONTROLLERS 2*
7 DRIVER 1 10 LIGHTS SWITCH 1
8 TERMINAL STRIP 1 11 MAIN POWER SWITCH 1
6
7
10
11
9
8
