11. Plug Case In / Case Will Energize
• Power cord with plug is factory-supplied.
• Plug case into customer-supplied electrical outlet.
Case will energize.
• Turn on LED light switch at rear-right upright.
• See illustration at right.
12. Slide-In Units: Reattach Upper and Lower
Rear Panels
• Rear panels are held in place by magnets.
• Lower rear panel has a slot for power cord.
• See illustration below.
10
INSTALLATION, CONT’D: PLUG IN UNIT / CASE ENERGIZING / UPPER & LOWER REAR PANELS
LED Light
Switch

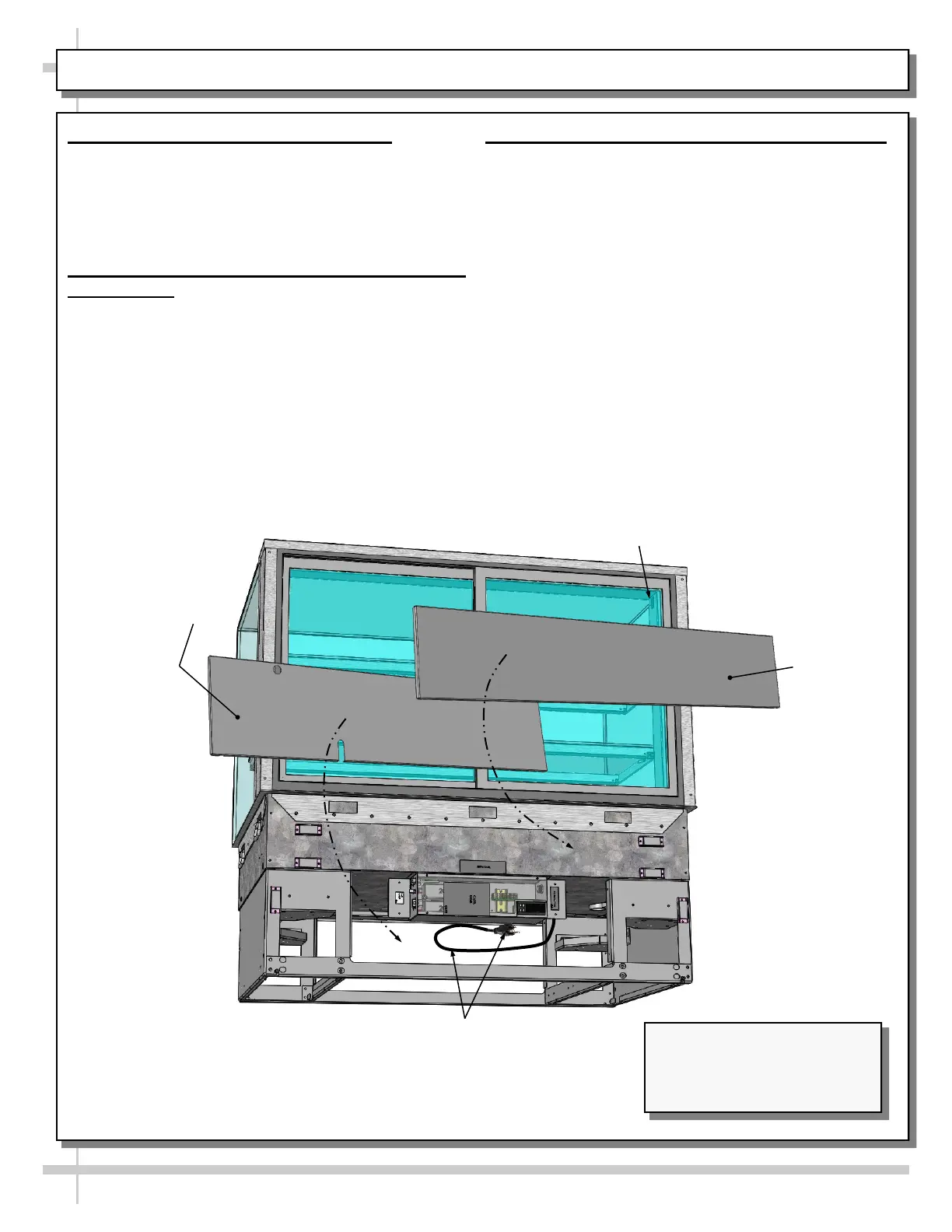

Model NE4827DSV Slide-In
Units (Shown) May Not Exactly
Reflect Every Feature or
Option of Your Particular Case.
Lower Rear
Panel
Upper Rear
Panel
Power Cord
And Plug
13. Drop-In Units: Reattach Lower Rear Panel
• Lower rear panel may be attached to case after it
has been dropped in countertop.
• If lower magnets have been removed from case
(for drop-in), you must REATTACH them in same
position for lower attachment to be held in place.
• Do not return upper rear panel to case.
