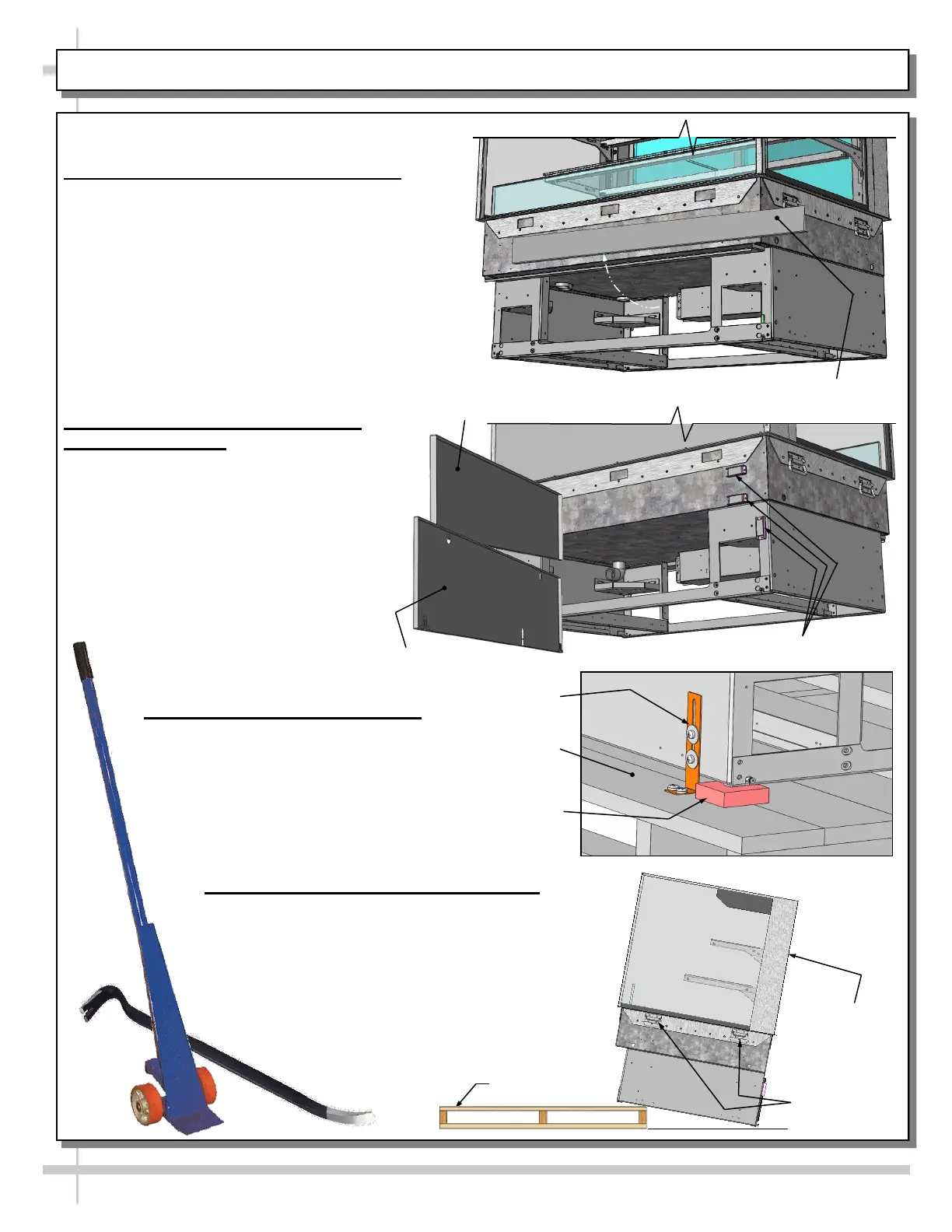

INSTALLATION: TOE-KICK & REAR PANEL REMOVAL / REMOVING CASE FROM PALLET

1. Remove Front Toe-Kick From Case

• To prevent damage to case, remove front

toe-kick from case before removing from

pallet.

• Place front toe-kick in secure location

while removing case from pallet.

2. Remove Lower and Upper Rear

Panels From Case

• Remove lower rear panels to prevent

damage to case during pallet removal.

• Drop-in units (vs. slide-in units) require

that you ALSO remove upper rear panel

to prevent damage to case.

• Also, drop-in units MAY require rear

magnets to be removed from rear for

case to fit into counter.

3. Disconnect Case From Pallet

• Remove screws from shipping

brackets. Remove and discard

shipping brackets from pallet.

• Place J-bar/pry under base frame.

Raise case up from pallet; remove

rubber shipping blocks.

Toe-Kick

Pallet

Support case

while removing

from pallet.

Handles

4. Carefully Remove Case From Pallet

• Use handles to carefully slide case to edge of

pallet (see illustration at right).

• Caution! 4 people are required for this task!

• Carefully lower to floor. Slide pallet from under

case.

• Maintain support of case at all times or case

may fall.

Pallet

Shipping

Bracket

Rubber

Shipping

Block

Upper Rear

Panel

Lower Rear

Panel

Rear Magnets (Typ.)
