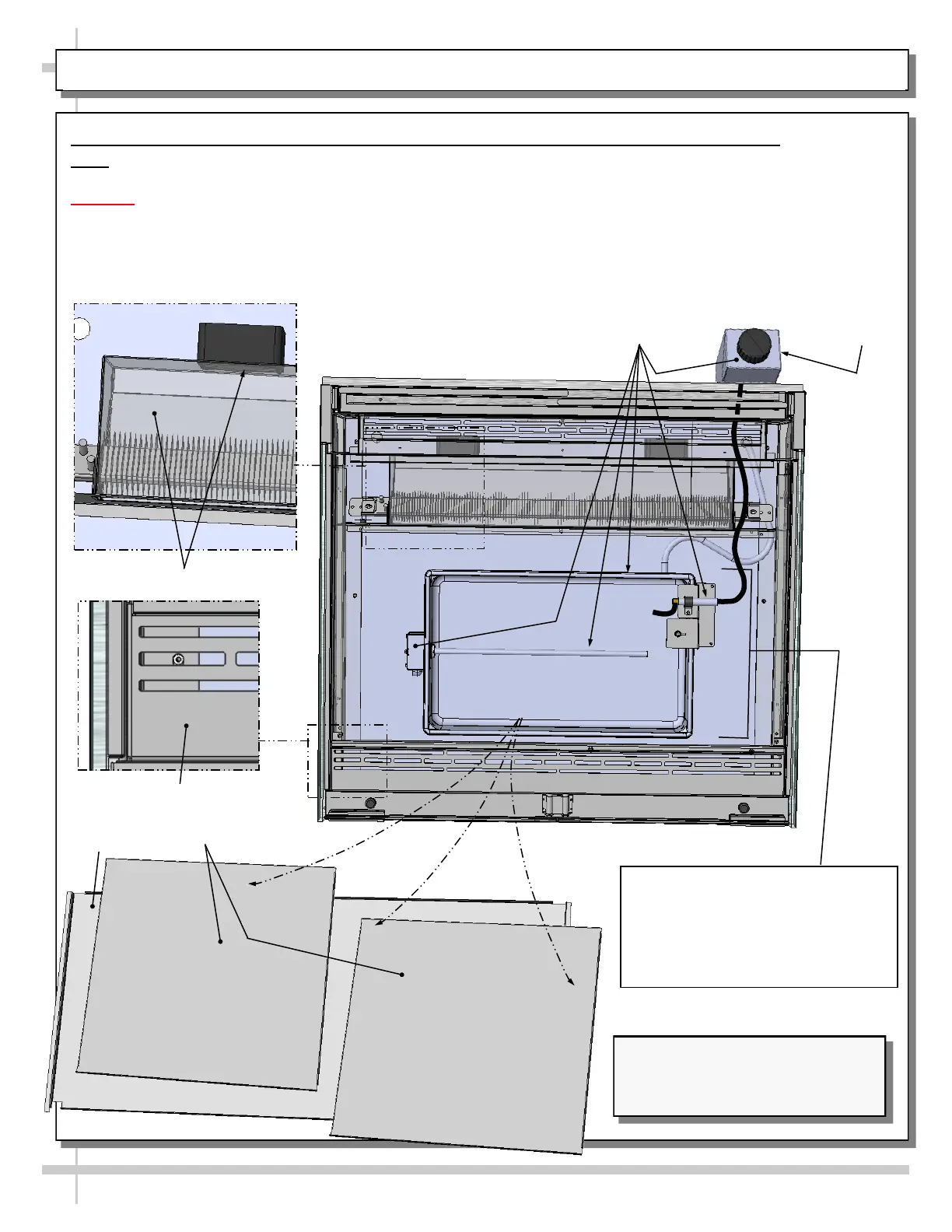

CASE DESIGN, CONT’D: TUB ACCESS / HEATER / POWERED HUMIDIFICATION SYSTEM (OPTIONAL)

4. Tub Area Access / Heater / Powered Humidification System (Optional) Access

Note: Powered humidification system assembly service is to be performed by refrigeration/electrical

contractors only.

Caution! Turn main power off before accessing tub area.

• To access powered humidification system assembly, remove sub-deck and deck pans. No screw removal

is required.

• After cleaning or servicing powered humidification system assembly, return sub-deck & deck pans to case.

• Restore power to case.

Sub-Deck

Deck Pans

Heater/Fan

--- Case Rear ---

Powered Humidification

System Assembly

CAUTION! Powered

Humidification System Poses

An Electric Shock Hazard!

See Next Page

For Specifics.

Water Fill

Funnel

(Optional)

--- Case Front ---

Model NE3635HSV Slide-In Unit

(Shown) May Not Exactly Reflect

Every Feature or Option of Your

Particular Case.

Airflow Baffle
