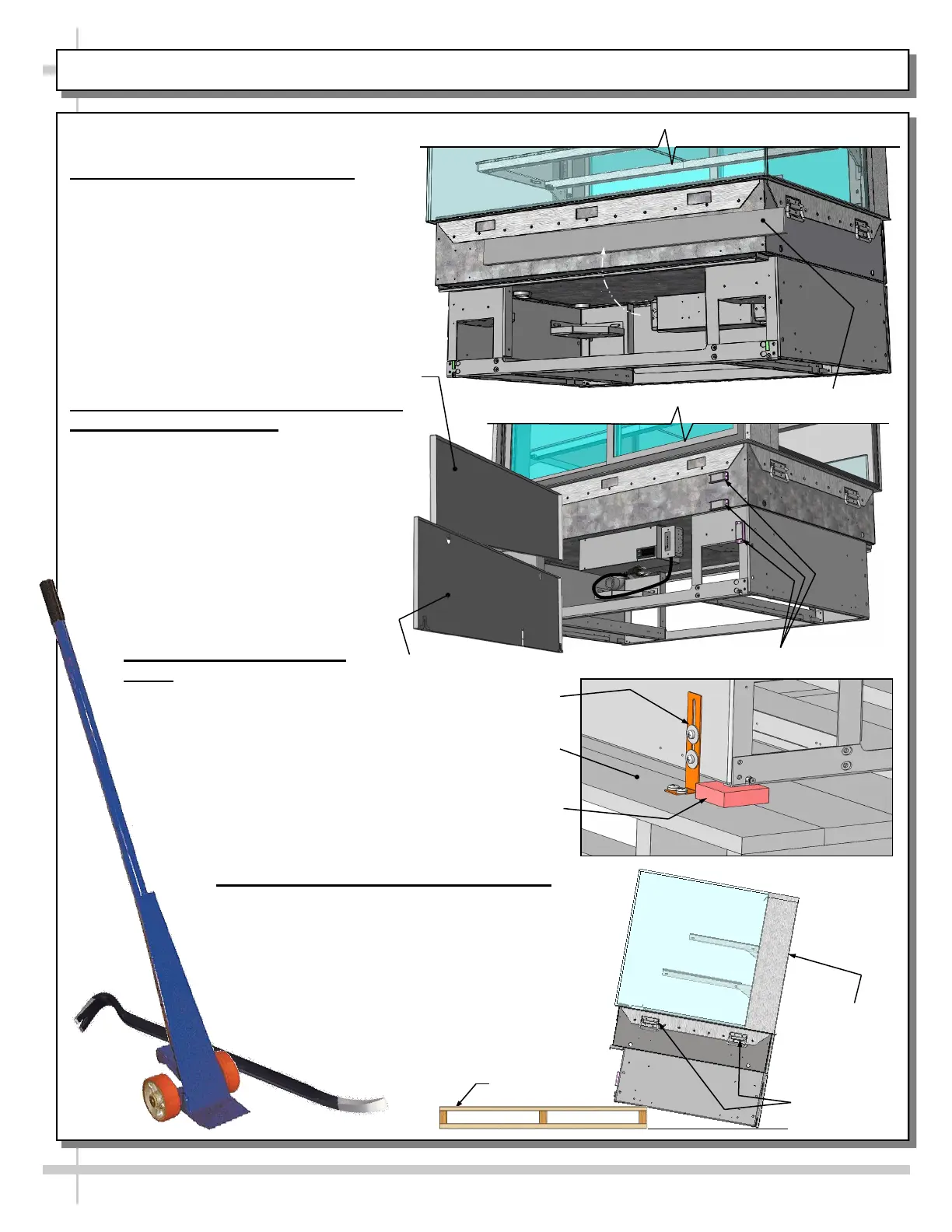

INSTALLATION: TOE-KICK & REAR PANEL REMOVAL / REMOVING CASE FROM PALLET

1. Remove Toe-Kick From Case

• If present, remove and discard front

toe-kick from case before removing from

pallet.

• Toe-kick is held in place by magnets

only. No screw removal is required.

2. Remove Lower and Possibly Upper

Rear Panels From Case

• Remove lower rear panels to prevent

damage to case during pallet removal.

• Drop-in units (vs. slide-in units) require

that you ALSO remove upper rear panel

to prevent damage to case.

• Also, drop-in units MAY require rear

magnets to be removed from rear for

case to fit into counter.

3. Disconnect Case From

Pallet

• Remove screws from

shipping brackets. Remove and

discard shipping brackets from pallet.

• Place J-bar/pry under base frame.

Raise case up from pallet; remove

rubber shipping blocks.

Toe-Kick

4. Carefully Remove Case From Pallet

• Use handles to carefully slide case to rear of

pallet (see illustration at right).

• Caution! 4 people are required for this

task!

• Carefully lower to floor. Slide pallet from

under case.

• Maintain support of case at all times or case

may fall.

Pallet

Support case

while removing

from pallet.

Handles

Pallet

Shipping

Bracket

Rubber

Shipping

Block

Upper Rear Panel

Lower Rear

Panel

Rear Magnets (Typ.)
