CASE DESIGN, CONT’D: PASSIVE HUMIDIFICATION SYSTEM (OPTIONAL) / HUMIDITY CONTROL LEVER

9. Passive Humidification System (Optional)

• Passive Humidification Systems are ONLY ON SMALL

UNITS (NE3613HSV & NE4813HSV).

• Cases with these systems DO NOT have humidity

controlled by thermostat (at case rear).

• Instead, humidity is controlled by sliding the outer

cover’s control lever either left or right (as shown below).

10. Humidity Control Via Lever and Key

> Access the humidity control lever by inserting the control

lever key THROUGH front grille slot and attaching it to outer

cover’s lever.

> Note: Access to humidification cover/lever may ALSO be

gained by opening doors and removing decking (see page

13 for specifics on deck removal).

Passive

Humidification

System

Control Lever

Key

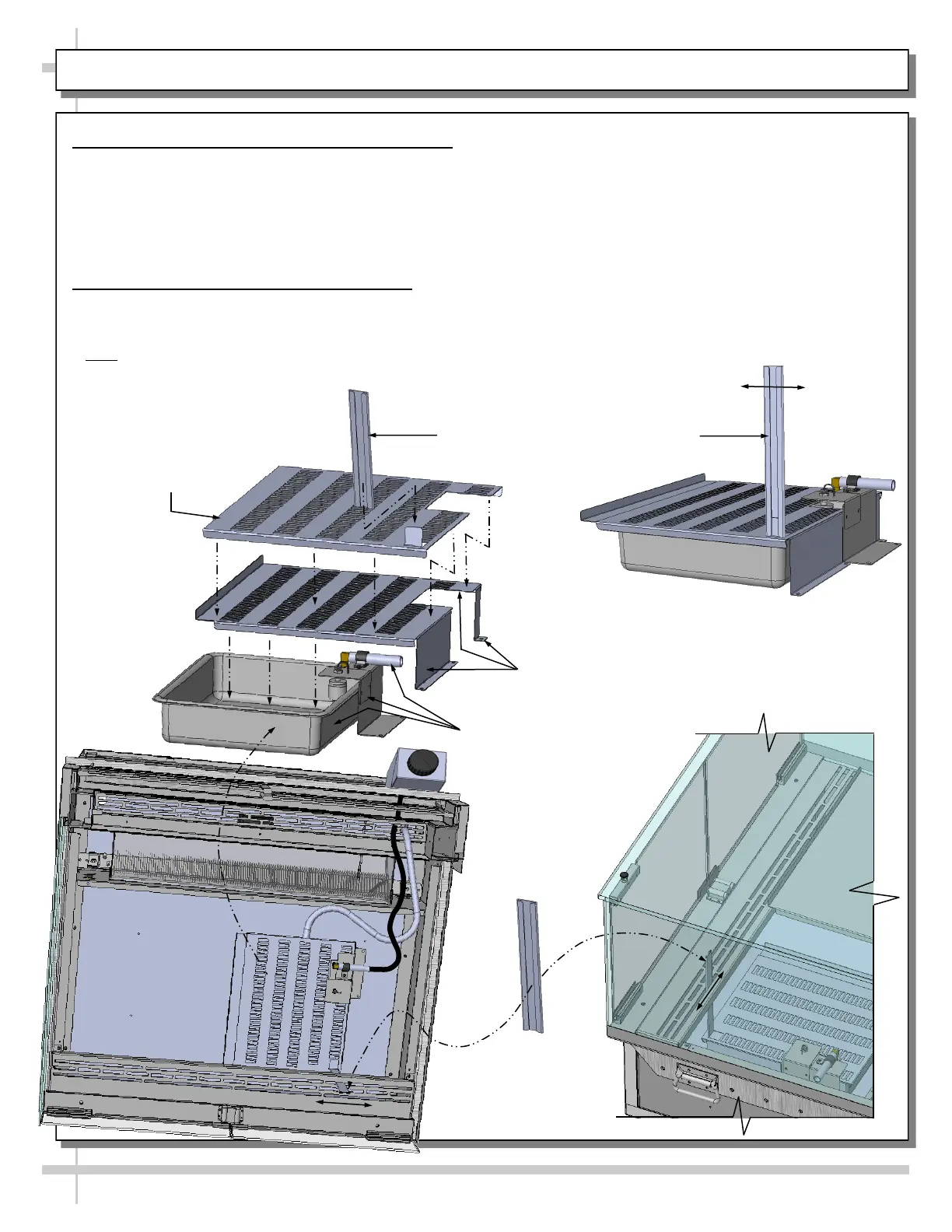

Passive Humidification System

(To Be Attached To Tub)

Passive Humidification System Cover -

Inner (To Be Attached To Tub)

A. If product seems to be drying out, simply slide the lever

to the left (OPEN POSITION); more humidity will fill case,

making product more moist.

B. If product seems to be overly moist, simply slide

lever to the right (CLOSED POSITION); less humidity will

permeate case, making product less moist.

C. Passive Humidification System lever can be

PARTIALLY OPENED (by sliding lever midway along slot) to

incrementally control humidification (and product moist-

ness) in case.

> Caution! The humidification control lever key has

magnet to allow it to be stored/attached at case rear

so it is not lost! See next page for illustration

showing key storage/placement.

Passive Humidification System

Cover - Outer (Controls

Humidity Depending

Upon Its Position)

Humidification Control Lever Key To

Be Attached to Lever (Controls Humidity

Depending Upon Its Position )

Left Right
