CASE DESIGN, CONT’D: FRONT VIEW OF SLIDE-IN, SERVICE HEATED MERCHANDISERS
2. Rear View Of Slide-In, Service Heated Merchandisers

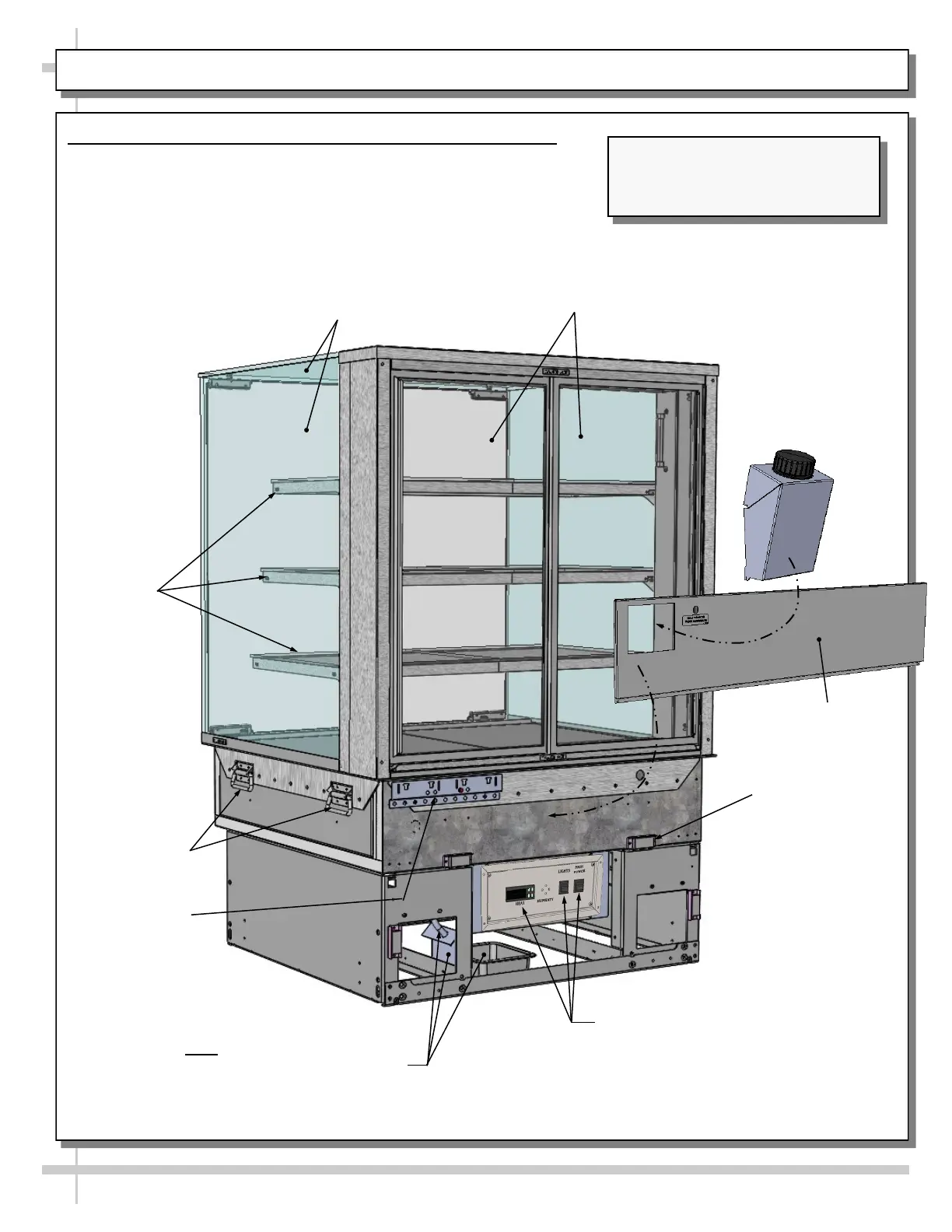

• Model NE3635HSV Slide-In unit is illustrated below.
• See previous page for front view of same model.
Shelving
UV-Bonded Glass
Enclosure (Typ.)
Handles (Typ.)
Thermostat, Lights And
Main Power Switch
Magnet For Rear
Upper Panel (Typ.)
Rear Sliding
Doors
Rear Upper
Panel
Water Fill Funnel
(Optional)
Funnel Bracket
Overflow For Humidification System
(Optional). Note: If Unit Was Ordered With
Optional Humidification System, and This
Component Is Not Present, Contact
Structural Concepts Corporation.
Model NE3635HSV Slide-In Unit
(Shown) May Not Exactly Reflect
Every Feature or Option of Your
Particular Case.
