INSTALLATION, CONT’D: SHELVING ASSEMBLY COMPONENTS

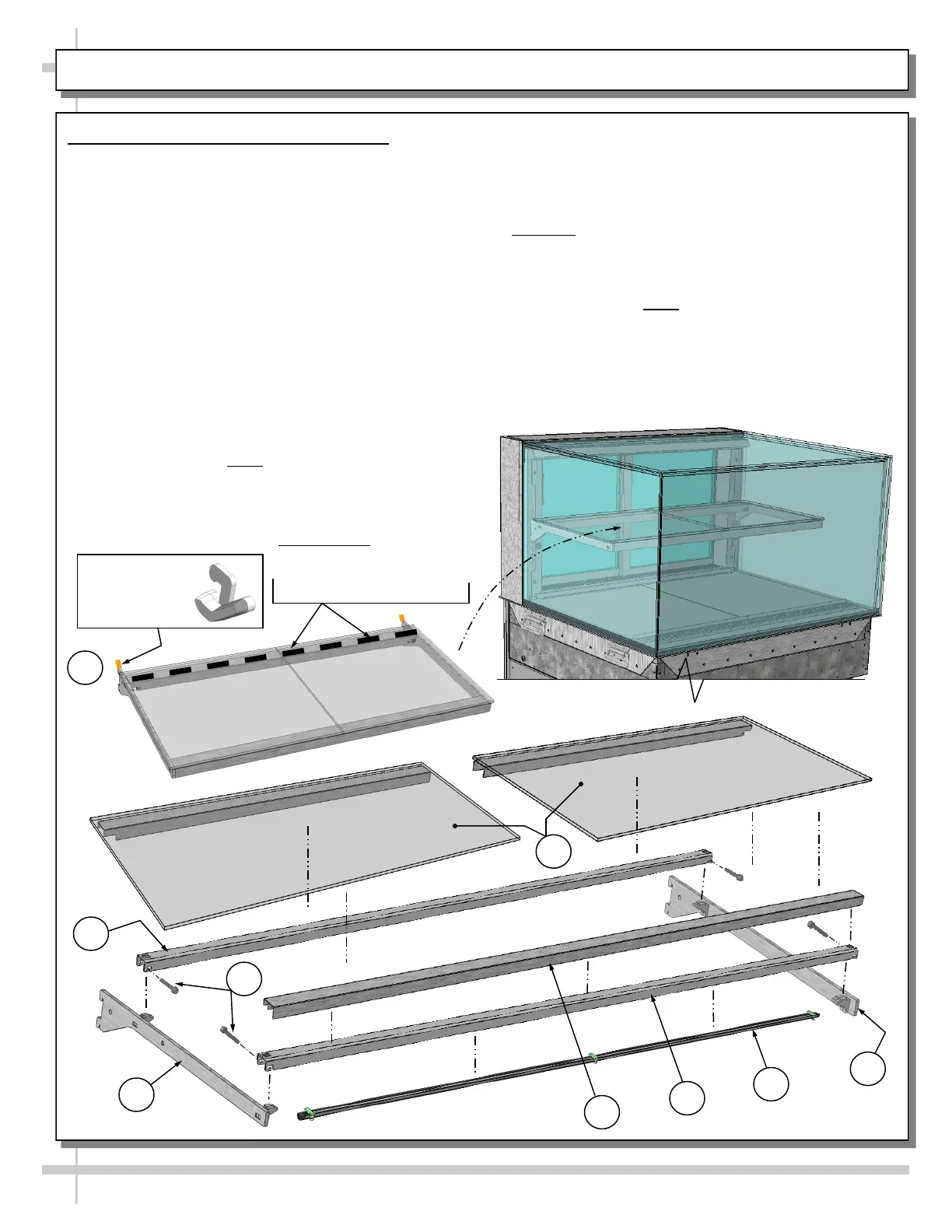

10. Shelving Assembly Components

• Check that glass shelving is in proper position

before placing product in case

• Shelves may be adjusted vertically or entirely

removed from merchandiser.

• Metal shelving brackets ARE NOT able to be

angled. They are at a fixed 90° position.

• There are 12 components comprising each

shelf assembly:

A. Right bracket (with hooks to attach to slots in

upright)

B. LED light with magnets

C. Front shelf support rail (LED light attaches to its

inner cavity via magnets)

D. Cover (rests atop front shelf support rail)

E. Left bracket (hooks to attach to slots in upright)

F. Nylon thumbscrews (4 per shelf) secure shelving

during shipment. Note: Remove (using pliers, if

necessary) and discard thumbscrews after case

is installed so shelves can be disassembled (to

clean or service).

G. Rear shelf support rail

H. Left and right glass shelf/cover assemblies (glass

is affixed to covers with 2-sided tape from factory).

Caution! Glass pieces ARE NOT IDENTICAL!

Notches on underside metal covers determine

placement in case.

I. Nylon retainer clips (2 per shelf) secure brackets

during shipment. Note: To adjust or remove

shelves, you must remove retainers; pliers may be

required to accomplish this task.

Glass Shelving

From Factory: Transparent

2-Sided Tape Holds

Glass To Top Of Rear

Shelf Support Rail

Right Glass

Shelving Piece

Left Glass

Shelving Piece

Nylon Retainer

Clip (Typ.)
