START-UP AND OPERATION, CONTINUED: LOAD LIMITS

PRODUCT PLACEMENT / AIRFLOW CONSIDERATION / LOAD LINES

• See illustration below.

• Caution! For discharged air to reach the return air

grille, you must not block front OR rear grilles with

product.

• Do not place product on front ledge of case.

3. Load Lines

• Load lines represent the limit that product can be

place (either horizontally or vertically) and/or

stacked in case.

• Keep product at or under load lines to assure that

heated airflow is properly cycled from air diffuser

through return air grille.

• Proper product placement will maintain

acceptable product temperature.

• See illustration below.

1. Product Placement

• Product can be placed on decking or steps

(risers) within the service display area.

• A wide range of product may be displayed.

2. Air Diffuser Grille & Return Air Grille

Considerations

• Proper airflow is critical to maintain proper

product temperature.

• Proper product placement will allow discharged

air to flow over (and around) product to the

return air grille (at case rear) AS WELL AS the

upper airflow circulation system. See illustration

below.

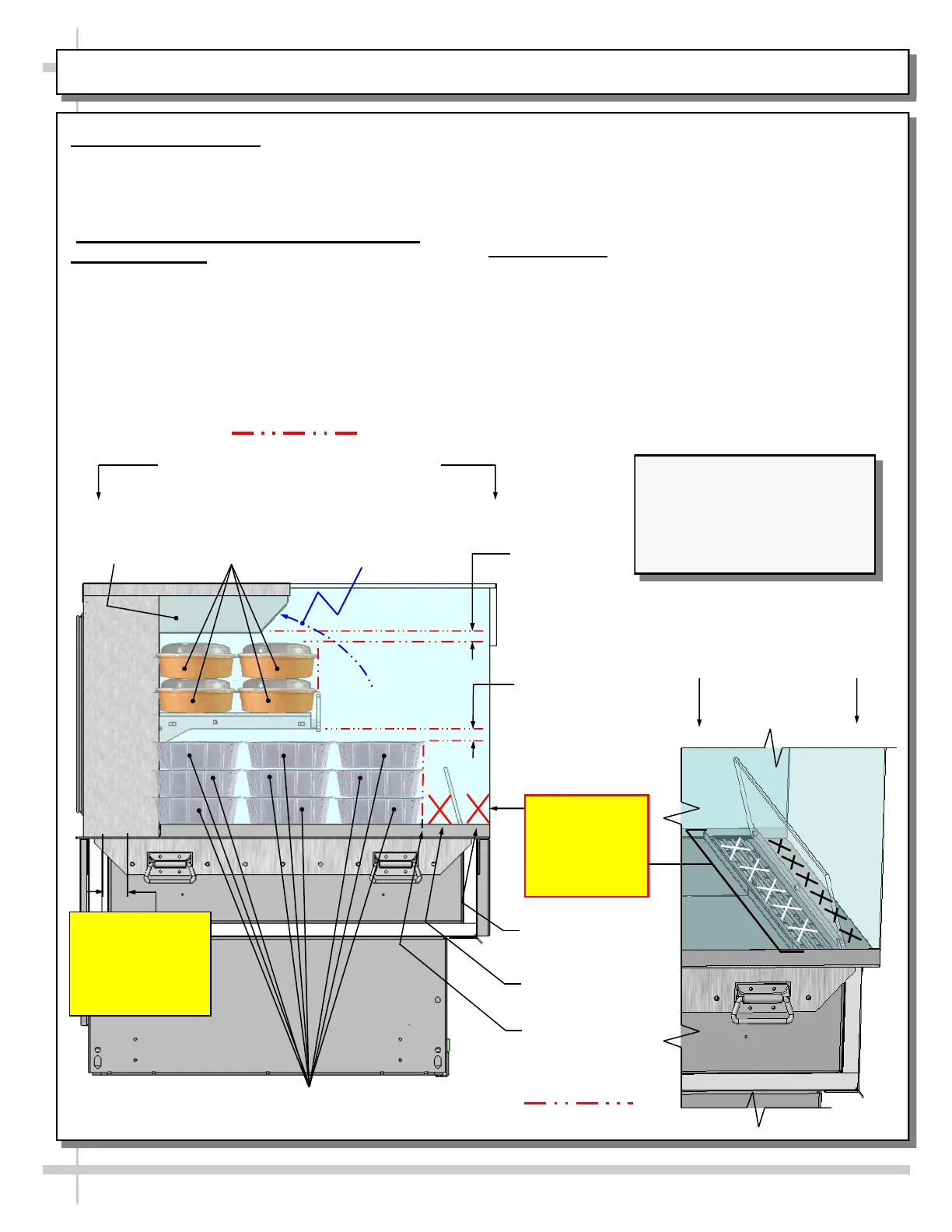

Angled View Of

Discharge Air Grille

Load Lines

1” Minimum

Load Line

1” Minimum

Load Line

Model NE3620HSSV (Shown)

May Not Exactly Reflect Every

Feature or Option of Your

Particular Case. However,

General Airflow Consideration

and Load Line Guidelines Apply.

Caution!

2” Air Return

Grille At Rear

Inner.

Do Not Block!

Model NE3620HSSV Shown Below

Load Lines

Caution!

Do Not Place

Product On

Discharge Air

Grille or Ledge

Product Stop

Sample

Product (Typ.)

Discharge Air

Grille

Ledge

Upper Airflow

Circulation

System

Sample

Product (Typ.)

Airflow Direction of

Upper Airflow

Circulation System
