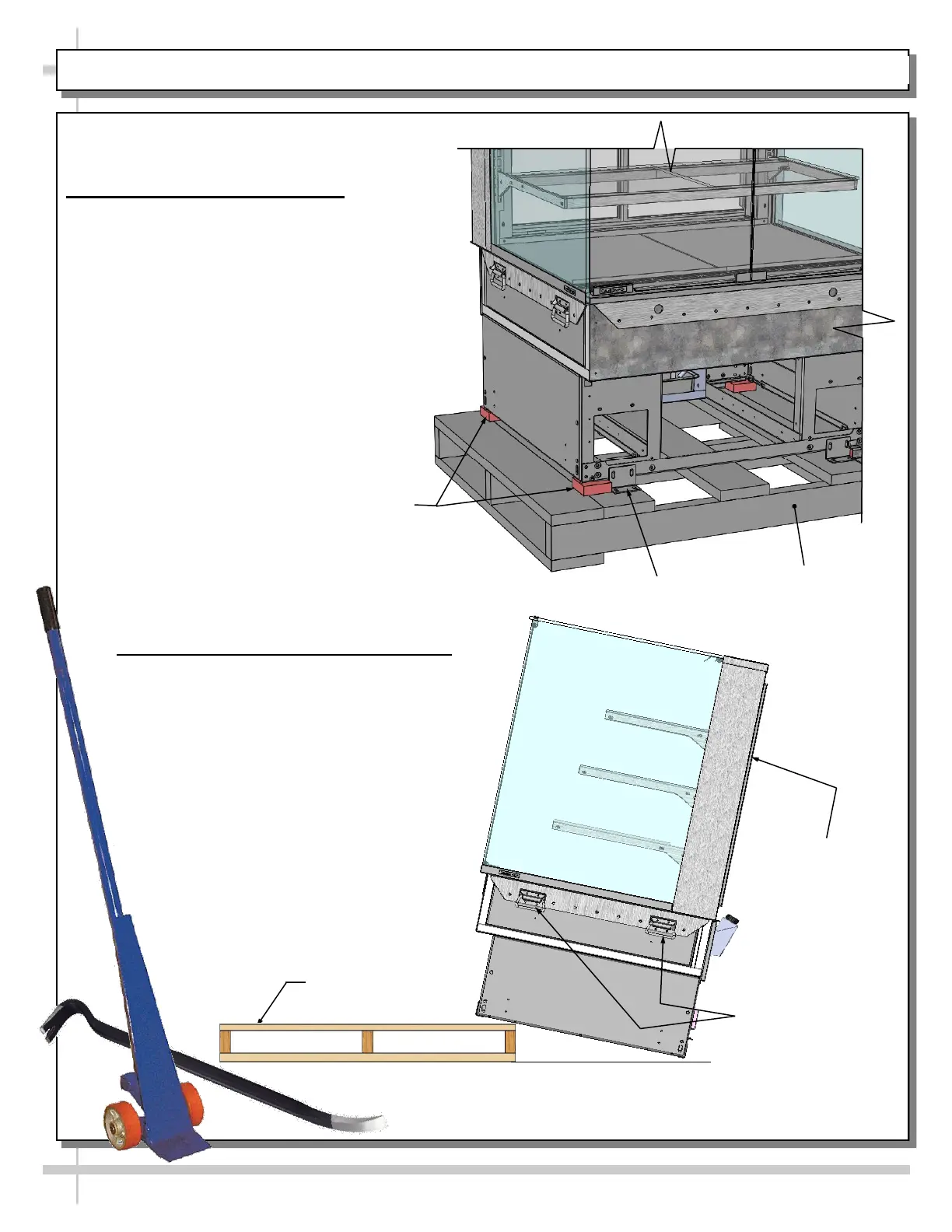

INSTALLATION: DISCONNECTING CASE FROM PALLET / REMOVAL OF CASE FROM PALLET

1. Disconnect Case From Pallet

• Remove screws from shipping brackets.

Remove and discard shipping brackets

from pallet.

• Place J-bar/pry under base frame.

Raise case up from pallet to take weight

off casters.

• With case raised, lower casters all the

way down against pallet (see next step for

detailed instructions on lowering or raising

casters).

• Remove rubber shipping blocks.

Pallet

Support case while

removing from pallet

Handles

2. Carefully Remove Case From Pallet

• Use handles to carefully slide case to rear

of pallet (see illustration at right).

• Caution! 4 people are required for this

task!

• Carefully lower to floor. Slide pallet from

under case.

• Maintain support of case at all times or

center of gravity may cause case to fall.

Pallet

Rubber

Shipping

Blocks (Typ.)

Shipping

Bracket
