CASE DESIGN & FIELD SERVICE PARTS LIST, CONT’D: REAR PIKE DOORS / PERF. PLENUM DOORS

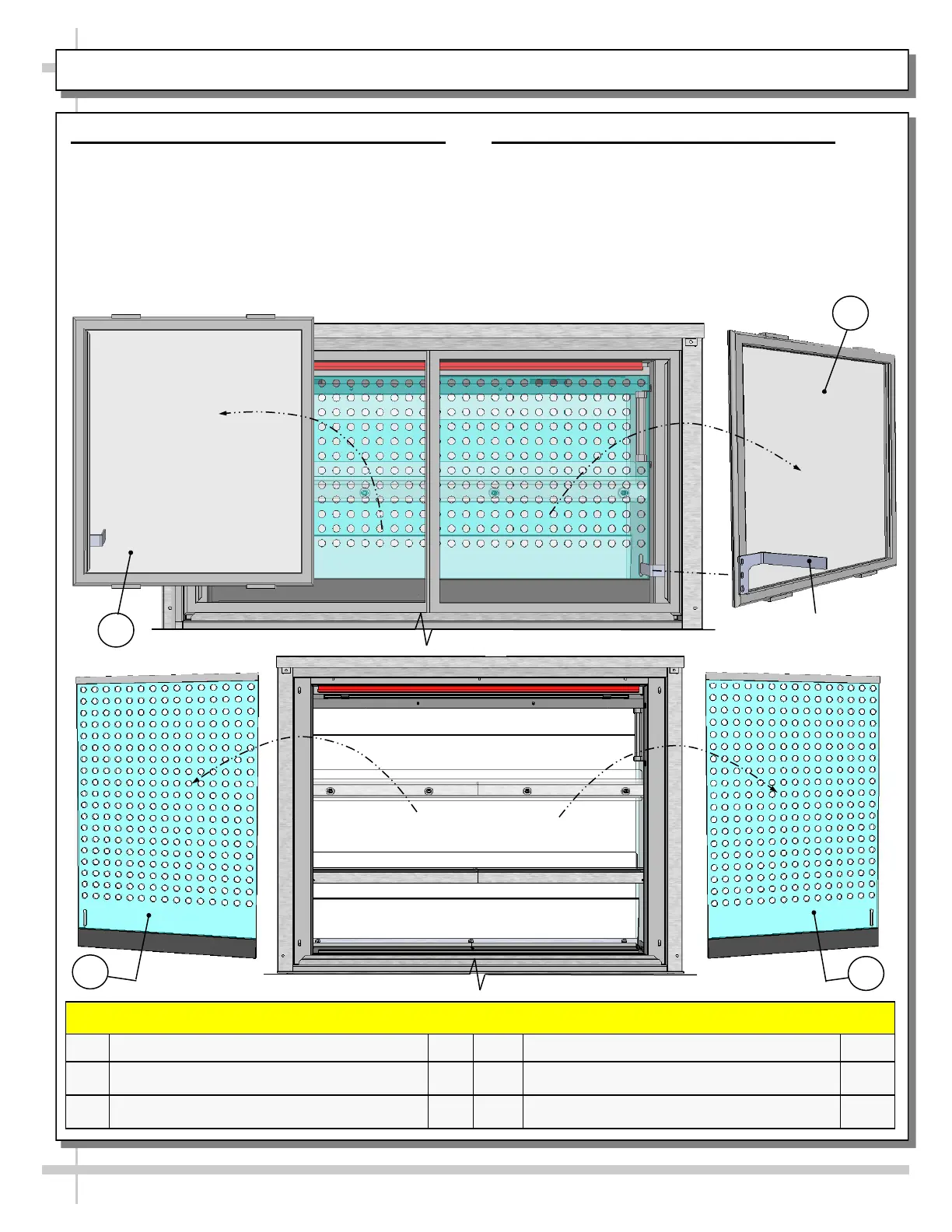

8. Rear Sliding Pike Doors (With Brackets)
• Rear sliding pike doors also control perforated
plenum via inner bracket (as illustrated below).
• To remove rear sliding doors, move them toward
center of case.
• Individually lift each door up toward the top of the
case; pivot the bottom of the door out.
• Return doors to case in reverse order they were
removed.
Inner Bracket To Control
Inner Perforated Plenum
FIELD SERVICE PARTS LIST: REAR SLIDING PIKE DOORS / PERFORATED PLENUM SLIDING DOORS
P/N COMPONENT NAME AMT P/N COMPONENT NAME AMT
28
PIKE DOOR, OUTER WITH INNER BRACKET,
REAR-LEFT
1
30
PERFORATED SLIDING DOOR, INNER 2
29
PIKE DOOR, OUTER WITH INNER BRACKET,
REAR-RIGHT
1
9. Rear Sliding Inner Perforated Doors
• Rear sliding inner perforated doors are shown
below.
• To remove, slide toward center of case.
• Individually lift each door up toward the top of the
case; pivot the bottom of the door out.
• Return perforated doors to case in reverse order
they were removed.
28
30
29
30
