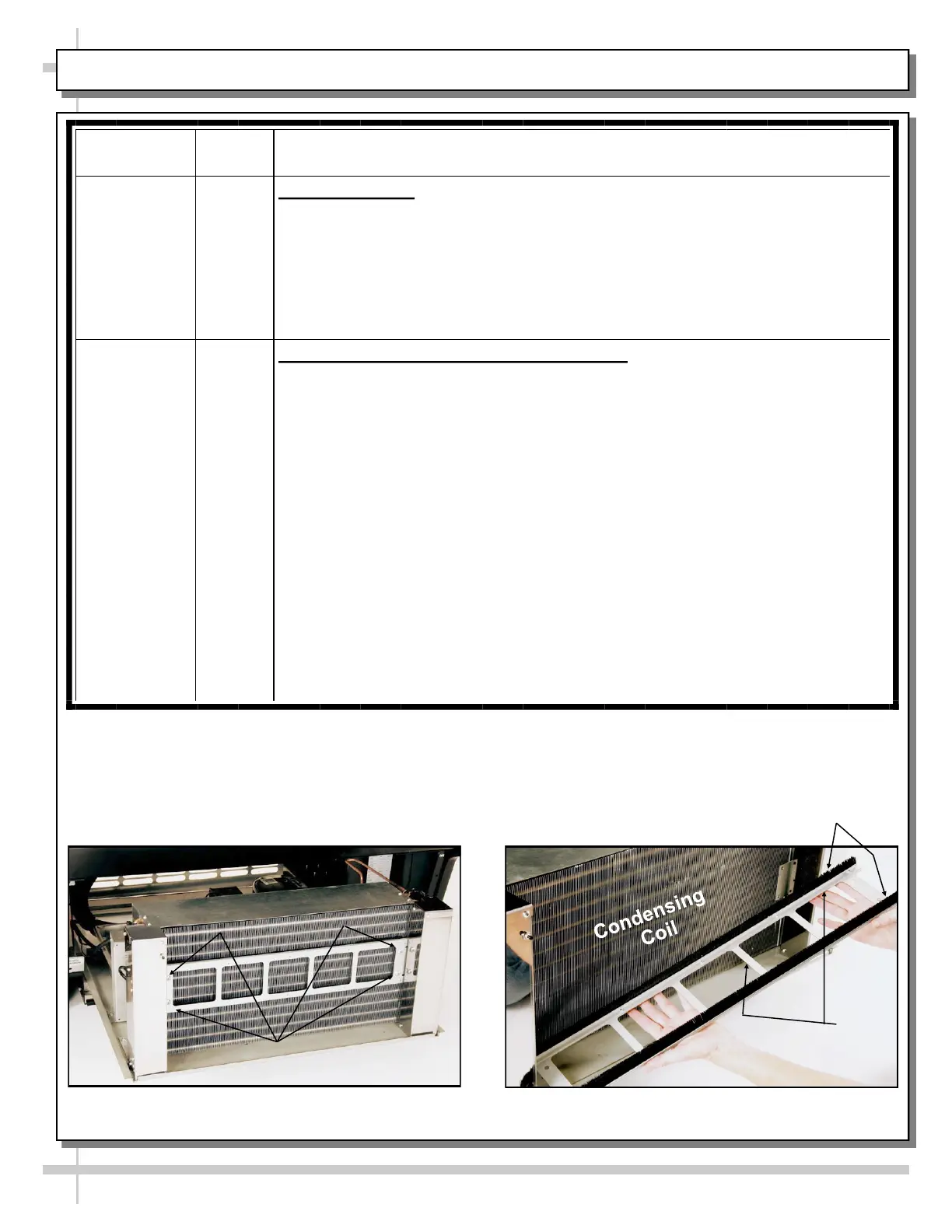

PREVENTIVE MAINTENANCE (TO BE PERFORMED BY TRAINED SERVICE PROVIDER) - Page 1 of 2

Preventive

Maintenance

Freq. Instructions

Case

Exterior

Monthly Condensing Coil:

 To remove rear grille, lift slots up and off hooks (no screw removal required.

 Use air pressure or industrial strength vacuum; clean dust and dirt that may

collect on the Condenser Coil. See illustration below.

 Caution! Coil fins are sharp. Handle with care!

 Replace rear grille to case (no screws required).

 See illustration below.

Qtly. Clean Sweep™ Condensing Coil (Optional): Disconnect power from case

before cleaning Clean Sweep™ Condenser Coil!

 Remove front grille (no screw removal required).

 Slide/roll out condensing unit assembly (at case front).

 Remove the four (4) screws holding the Clean Sweep™ rails intact.

 Remove the Clean Sweep™ rail.

 Wash rails’ brushes in hot water and mild soap solution.

 If brushes are worn, they must be replaced. Call Technical Service

Department to replace. Toll-Free number is listed at end of manual.

 Clean Condensing Coil: Use air pressure or industrial strength vacuum;

clean the dust and dirt that may collect on the Condenser Coil.

 Caution! Coil fins are sharp. Handle with care!

 Reattach Clean Sweep™ rail to condensing unit (4 screws).

 Slide/Roll Condensing Unit Assembly back under case.

 Replace Rear Grille to case (4 screws).

 See illustration below.

(4) Screws

--- Above photos are taken after front has been removed from case ---

Brushes

Rail
