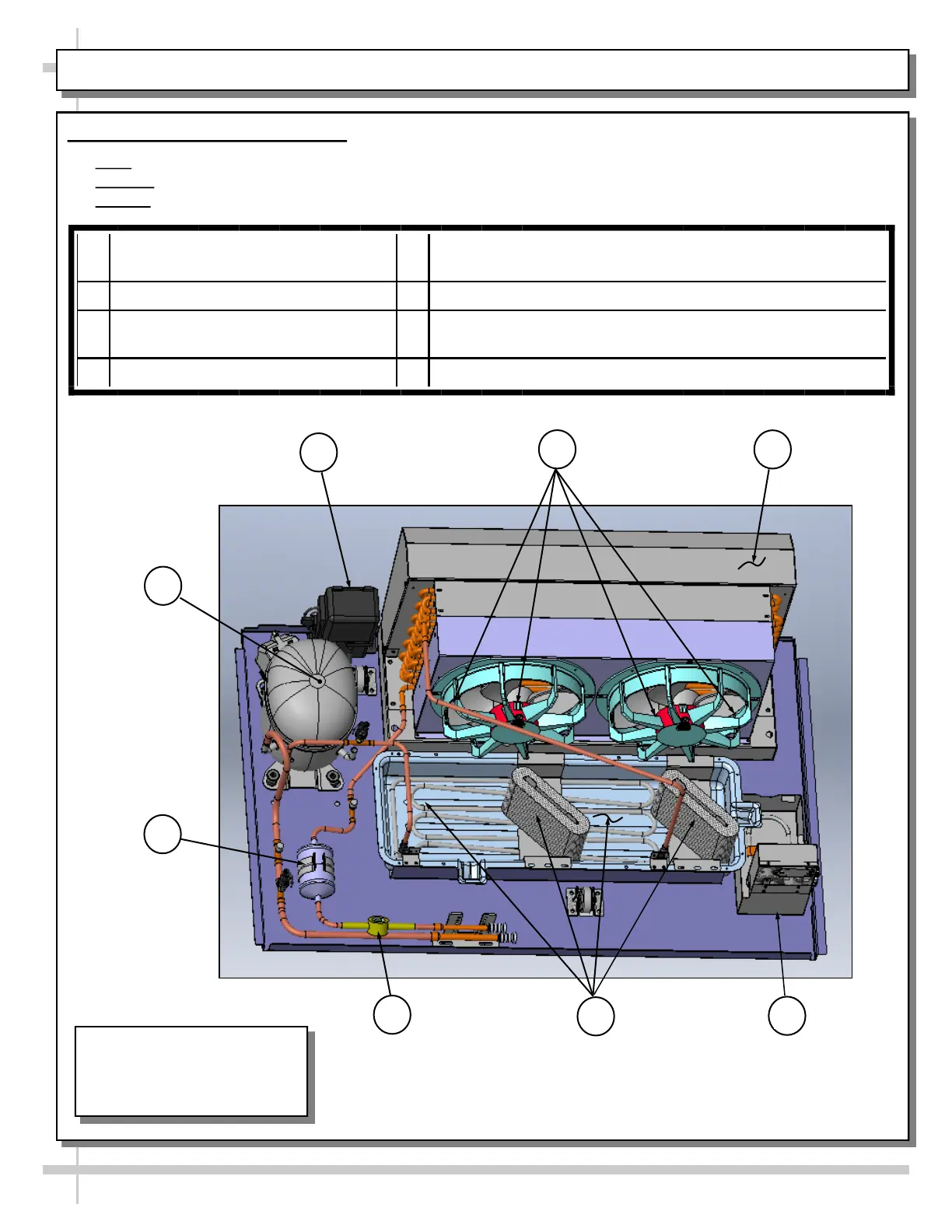

CONDENSER PACKAGE LAYOUT: MODELS HECO57R ONLY
Typical Configurations, Continued
Note: Unit shown below is for Model HECO57R only. Your model’s condenser package layout may vary.
Caution: Only certified refrigeration/electrical engineers or contractors are to access condenser unit.
Access: Remove front grille by lifting up and off (no screw removal is required). Slide out.
4
3
8
1
5
7
1
Embraco® Compressor Start
Components
5
Hot Gas Condensate Pan, Serpentine Rods and Wicking
Material
2 Refrigeration Pump 6 Electrical Coil Overflow Condensate Pan
3 Filter / Drier 7
Condenser Coil Fan Shroud (Optional: May Include Clean
Sweep™ Automatic Condenser Coil Cleaner)
4 Sight Glass 8 Fan Motors & Fan Shroud
EnergyWise Refrigeration
Package for Model HECO57R
Is Shown. See Accompanying
Sheets for Other Designs.
2
6
