EVAPORATOR AREA: DECK PAN REMOVAL / REFRIGERANT COMPONENTS FOR FSIB8R ONLY

Caution! Hazardous moving parts.

• Authorized service personnel ONLY should

access this area.

• Do not operate unit with covers removed.

• Fan blades may be exposed when deck panel

is removed.

• Disconnect power before removing deck

panel.

1. Deck Pan Removal

• Illustration below shows merchandiser after deck

pans have been removed.

• Store in safe place out of foot traffic while

removed from case.

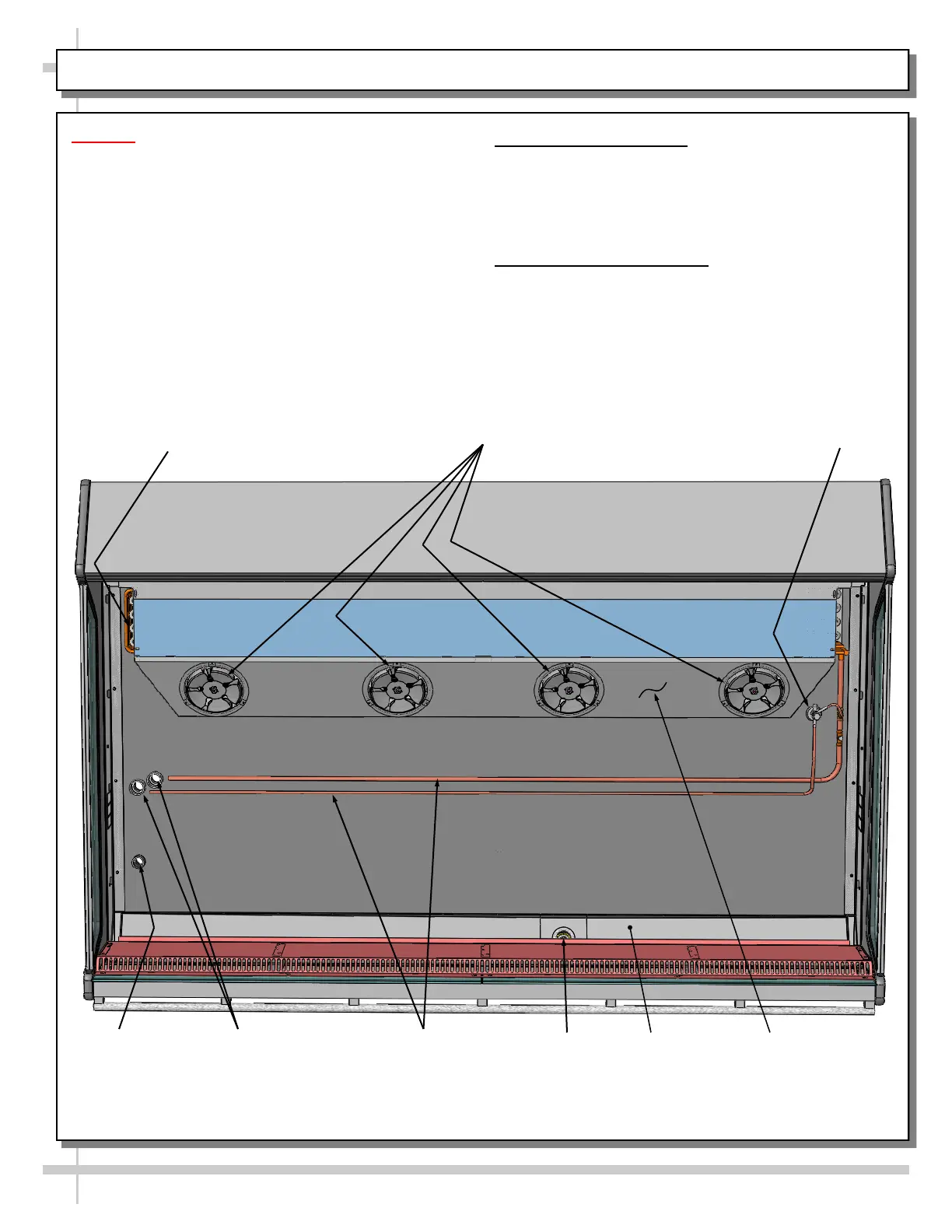

2. Components / Routes

• Illustration below shows components such as

refrigeration lines, TXV, drain, drain trough,

motors and fans, etc.

• Illustration below shows general layout.

Refrigeration Lines

(Routed To Remote

Refrigeration Supply)

Refrigeration Line

Pass-Throughs

Drain

TXV

Drain

Trough

Evaporator Fan

Shroud (With

Evaporator Coils

at Underside)

Evaporator

Motors/Fans

Wiring Route

Coil
