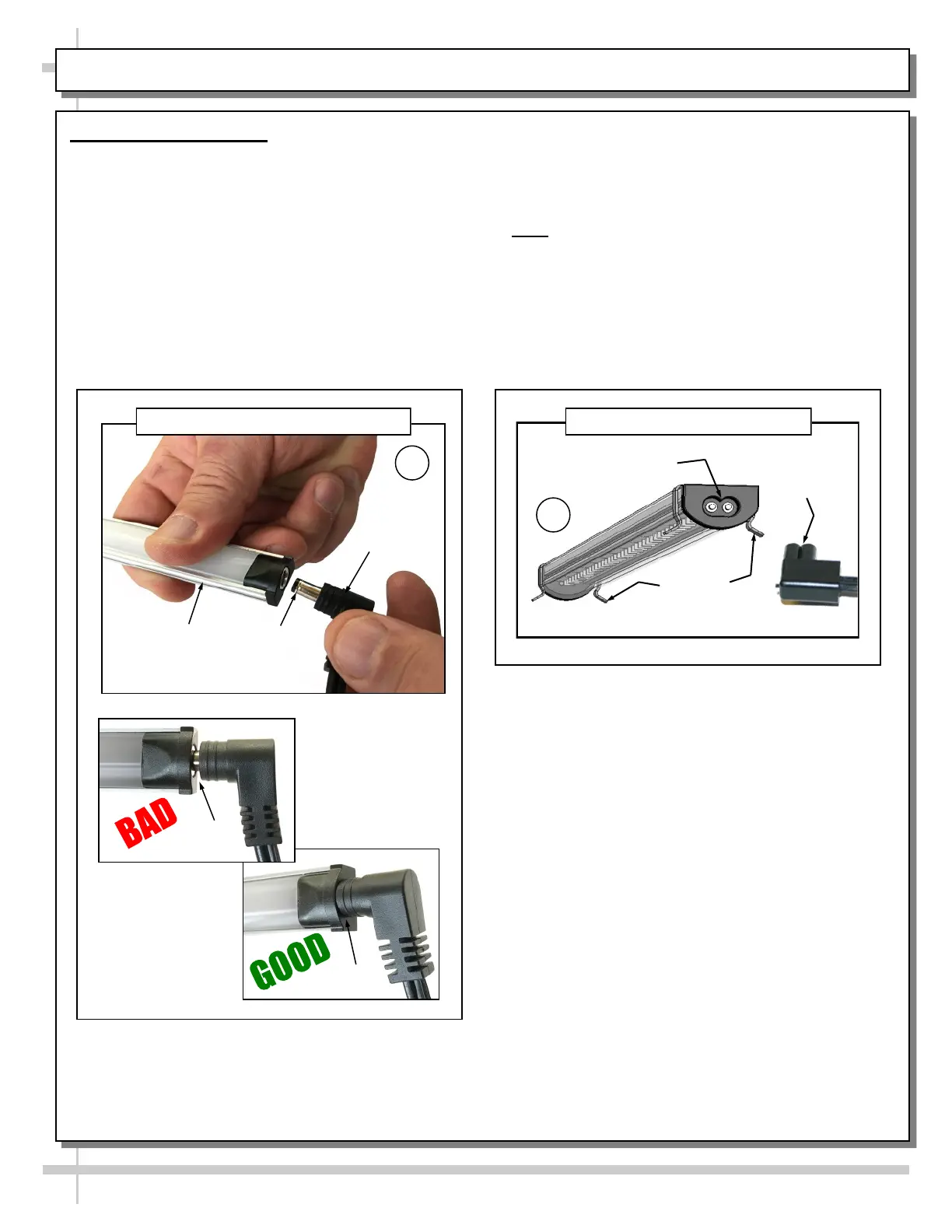

TROUBLESHOOTING (TO BE PERFORMED BY STORE PERSONNEL), CONT’D - PAGE 2 OF 2

LED Style Light Fixtures

Removal of faulty LED light:

• LED lights rarely require change-out.

• To remove faulty LED light, simply grasp light

near retaining spring and carefully pull away

from its spring. Disconnect plug from LED’s

socket.

• Contact Structural Concepts’ Technical Service

Department for replacement parts (see

Technical Service section of this manual for

information).

LED’s Oval Form

Plug’s

Oval Form

--- LED Plug & Light Fixture ---

Retaining

Springs

Plug

LED’s Barrel

Shaped

Insert

LED

Light

“B-Shaped” LED Plug & Light Fixture

“Barrel-Shaped” LED Plug & Light Fixture

Replacement of LED light:

• To replace LED light fixture, simply insert new

LED light at proper position (socket must be near

plug). Carefully snap into metal springs so LEDs

are held firmly in place.

• Note: LED light and plug must be connected in a

specific manner or they will not work.

A. Certain plug designs (“barrel type”) merely require

that plug be pushed all the way in.

B. Other plugs require “oval edge” of plug to

connect to oval edge of LED light.

• See illustrations below.

No Gap

Gap
