REFRIGERATION - FRONT CONDENSATE PACKAGE ACCESS (NO SCREW REMOVAL REQUIRED)
Refrigeration Fundamentals, Continued
2. Front Condensate Package Access -
No Screw Removal Required
• Assembly or disassembly and servicing of
condensate package is to be accomplished
by a licensed refrigeration contractor.

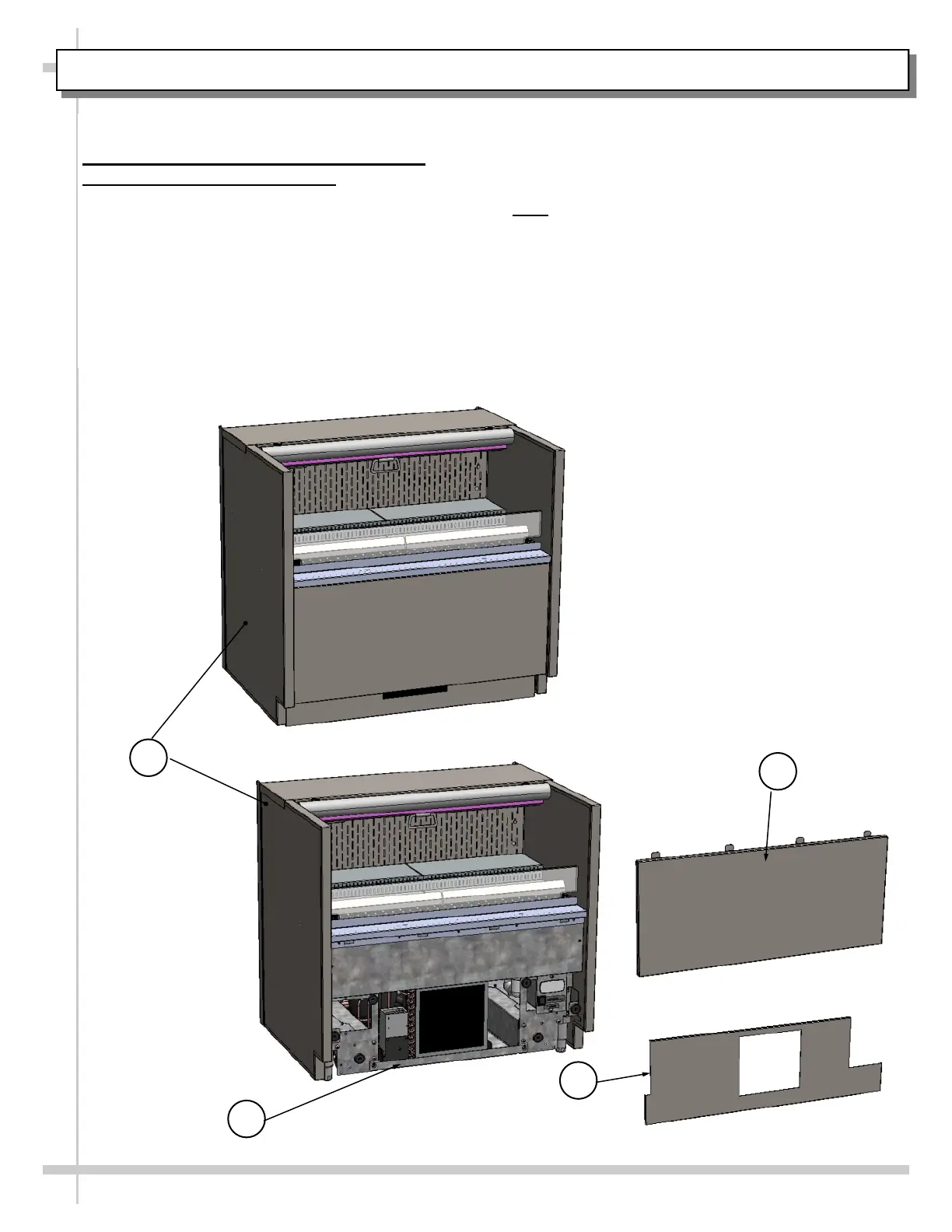

1. View of fully attached front panel and toe-kick.
2. Remove front panel by grabbing the bottom of
the panel and pull forward to release magnets.
Slide down to disengage the security tabs.
3. Remove the toe-kick from the magnets to access
the compressor package.
4. Carefully slide condenser package pan out
from under case to access various components.
>> Return all components to case in reverse or-
der they were removed.
Note: CN33R shown for reference only, you model
may differ in appearance.
