while rolling

down ramp.

--- Rotated View of Model BD3632 ---

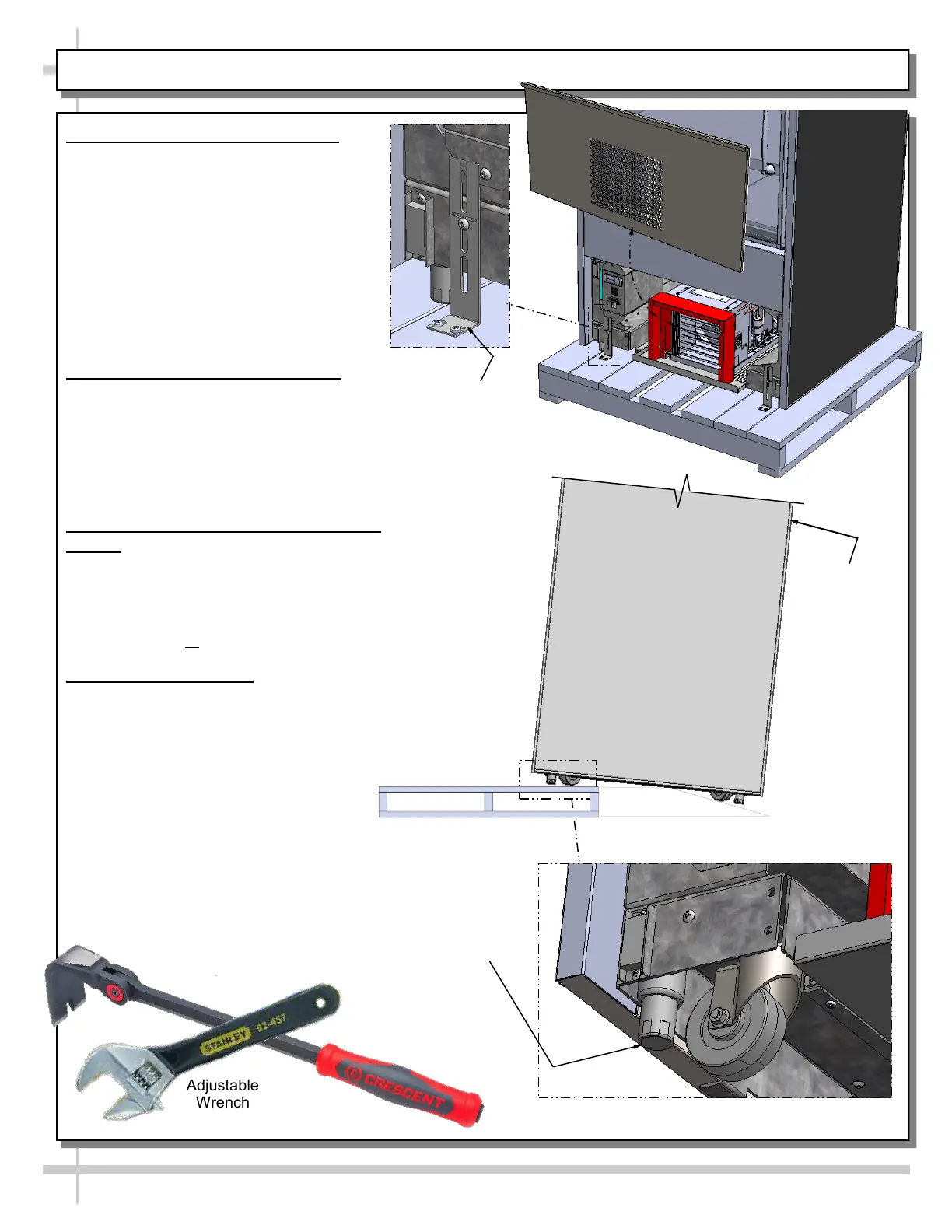

INSTALLATION: CASE REMOVAL FROM SKID / POSITIONING / LEVELER ADJUSTMENT

Shipping

Bracket

Front

Panel

Leveler

(Typical)

Adjustable

Wrench

Indexing Flat

Pry Bar

1. Disconnect Case From Skid

• Remove front and rear panels.

• Also, remove shipping brackets that

secure casters to skid

• Important! Case is shipped with levelers

in the DOWN position (for stability). To

prevent damage to the case, all levelers

must be raised ALL THE WAY UP before

moving unit off skid and into position.

• After levelers are raised, place ramp up

against skid (to allow case to smoothly

roll off from skid).

2. Roll Case Off Skid via Ramp

• Maintain support of case at all times or

center of gravity may cause case to fall.

• Roll unit to rear of skid.

• Check that ramp is secure and possibly even

attached to skid with screws.

• Carefully roll down ramp and off skid.

3. Position & Align Alongside Other

Cases

• Before adjusting levelers, make certain that the

case is in proper position and, if required,

aligned with adjoining case(s).

• This may require repositioning of the case you

are installing or the already positioned cases.

4. Adjusting Levelers

• Important! After case is in proper position,

levelers must then be LOWERED to floor.

• Adjust levelers so the case is level and plumb.

Depending upon case weight it may be

necessary to use an indexing flat pry

bar (or similar pry bar) to do so.

• Use adjustable wrench to adjust leveler.

• Do not use indexing flat pry bar on

end panel as it may chip.

• Use indexing flat pry bar ONLY on base frame to

avoid damaging case.

• See illustrations at right.

• After case if level and plumb, you may replace

front and rear panels.
