LOAD LEVEL GUIDE / TEMPERATURE GUIDE (MODEL BD3632 SHOWN/APPLICABLE TO BD4732)
LOAD LEVEL & TEMPERATURE GUIDE
>> FOLLOW THESE PRODUCT PLACEMENT GUIDELINES TO
MAINTAIN DESIRED PRODUCT TEMPERATURES.
>> NOTES CORRESPOND WITH ILLUSTRATIONS SHOWN.
>> CAUTION! DO SUBJECT SHELVES TO EXCESSIVE LOADS.
1. AT TOP SHELF, KEEP PRODUCT BELOW THERMOMETER
(THAT IS ATTACHED TO REAR PERFORATED PLENUM).
2. ALLOW AT LEAST 1” SPACE BETWEEN PRODUCT AND ITS
SHELF ABOVE.
3. AT CASE REAR, ALLOW AT LEAST 1” SPACE BETWEEN
PRODUCT AND REAR PERFORATED PLENUM.
4. DO NOT BLOCK 1 1/4” AIR RETURN OPENING WITH PRODUCT.
>> IF YOU ARE UNABLE TO MAINTAIN DESIRED PRODUCT
TEMPERATURES, SEE TROUBLESHOOTING SECTION IN MANUAL.
38 °F TO 41 °F
PRODUCT AT
CASE FRONT
28 °F To 35 °F
PRODUCT AT
CASE REAR
THERMOMETER

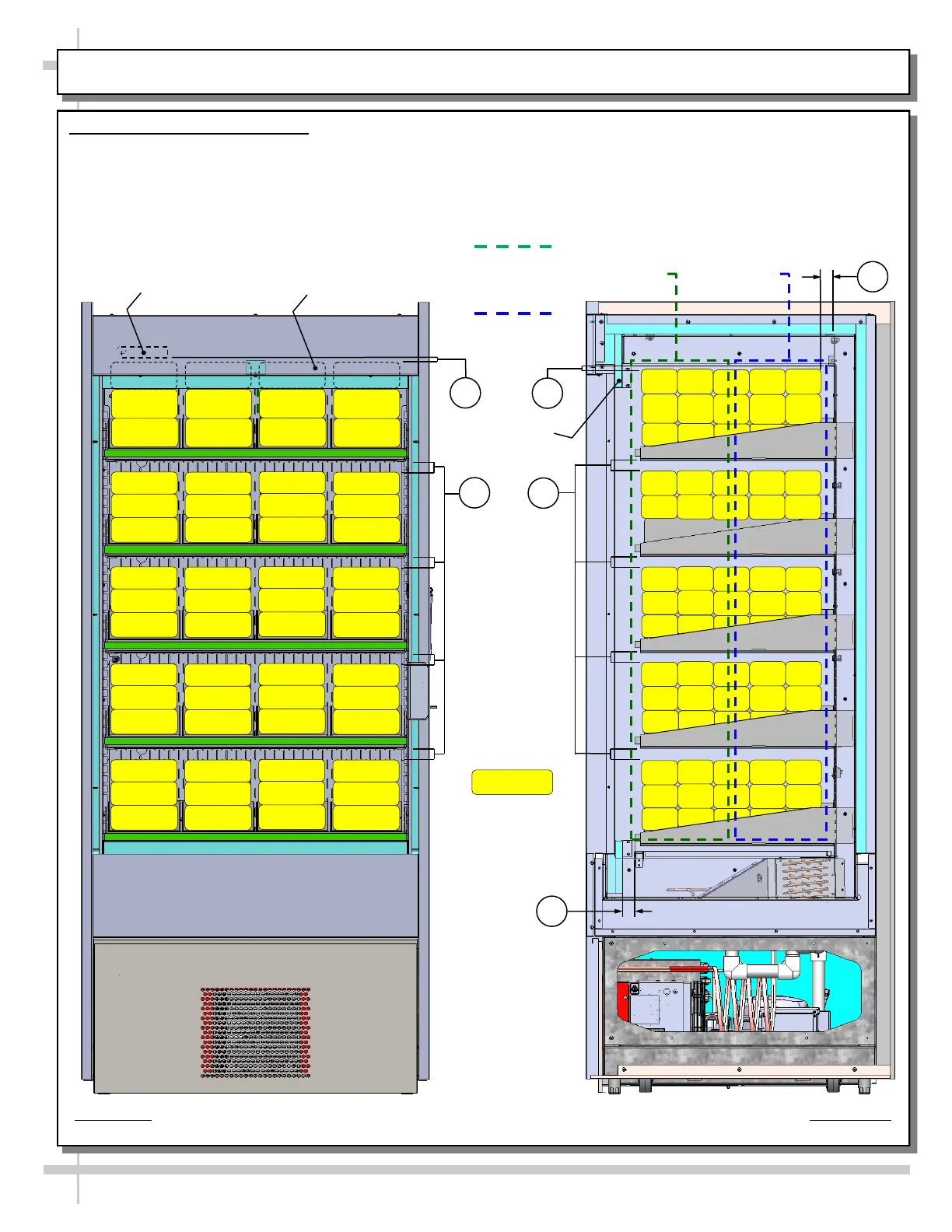

MODEL BD3632 SHOWN ABOVE (APPLIES TO BD4732). CASE IS PARTIALLY DISASSEMBLED,
CROSS-SECTIONED AND PACKAGED PRODUCT LADEN FOR ILLUSTRATIVE PURPOSES ONLY.
PRODUCT BEHIND HEADER
SHOWN WITH HIDDEN LINES (TYP.)
HEADER
PACKAGED
PRODUCT
ILLUSTRATION
PRODUCT
TEMPERATURE
RANGE SHOWN
AT RIGHT.
2
1
2
1
3
4
IMPORTANT!
25 kg per
meter²
maximum
weight
allowed per
shelf!
