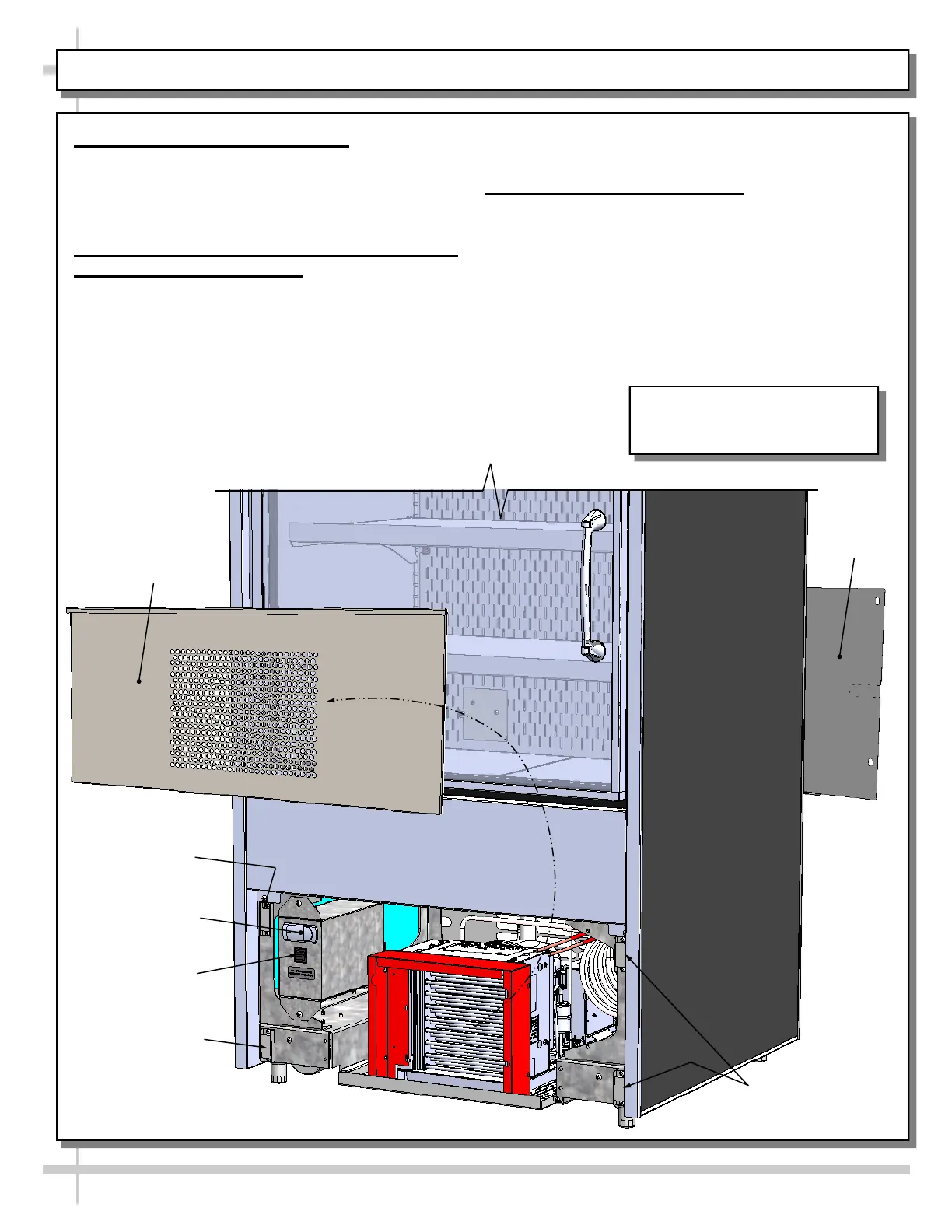

FRONT/REAR PANEL REMOVAL / CONNECTIONS CHECK / TURNING ON POWER TO CASE

1. Removable Front/Rear Panel

• Front and rear panel can be removed/replaced

by simply grasping top ‘lip’ and pulling

outward, freeing it from magnets.

• See illustration below.

2. Check Condenser Package Connections

Before Powering Up Case!

• Caution! Connections can come loose

during shipment; this can allow water to

overflow onto floor, causing damage!

• When case in is proper location, remove front

and rear panels to check for loose

connections, including overflow condensate

pan and its power cord plug (if part of the

condensate package).

• See TROUBLESHOOTING section in operating

manual for various troubleshooting issues.

3. Turning On Power To Case

• Plug in power cord.

• Turn on main power switch (at lower left).

• Return front and rear panels to case.

• Check that programmable controller is energized.

• Open door: check that LED light in upper plenum

is energized and that evaporator fans are rotating.

Magnet

Front Panel

Main Power

Switch

Magnet

Magnets

Programmable

Controller

Rear Panel

Model BD3632 Is Shown. It May

Not Reflect Every Feature or

Option of Your Particular Case.
