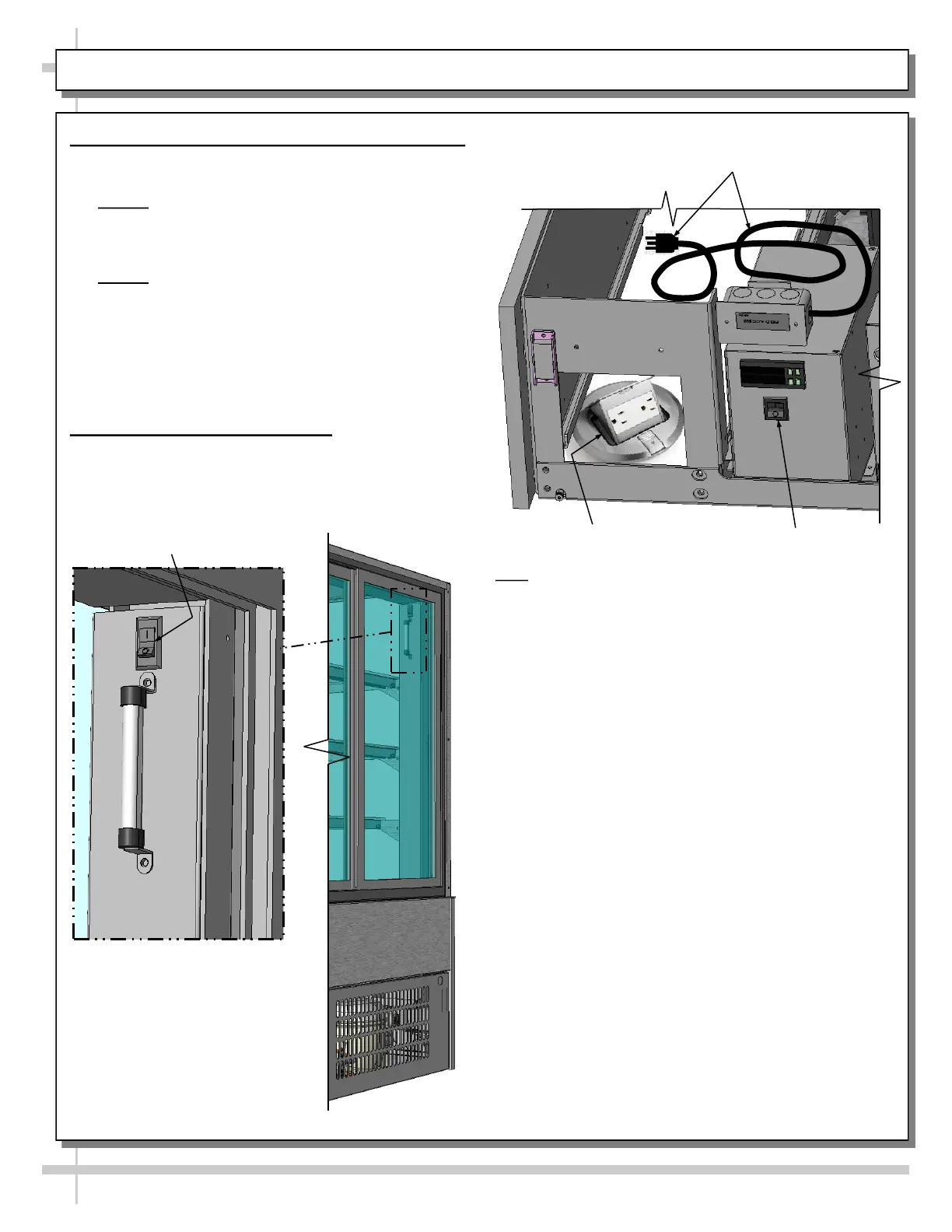

INSTALLATION, CONT’D: PLUG IN UNIT / TURN ON MAIN POWER SWITCH AND LED LIGHT SWITCH

9. Plug Case In / Turn On Main Power Switch

 Power cord with plug is factory-supplied.

 Plug case into customer-supplied electrical outlet.

 Note 1: Partially-disassembled view at right is

shown with casters removed for illustrative

purposes only. View/location of floor receptacle is

for illustrative purposes only.

 Note 2: Due to space constraints, it may be

necessary to pull out condenser package to

maneuver power cord plug around components

and into receptacle.

 Turn main power switch on.

 Check that case is energized. Lift deck pans to

confirm that evaporator fans are rotating).

10. Turn On LED Light Switch

 LED light switch is accessible at case rear

upright (after opening rear sliding door).

 See illustration below.

Main Power

Switch

Customer Supplied Receptacle

(Sample Floor Unit Illustrated).

Note: Casters Removed For

Illustrative Purposes Only.

Factory-Supplied Power

Cord With Plug

Light Switch
