PREVENTIVE MAINTENANCE (TO BE PERFORMED BY TRAINED SERVICE PROVIDER) - PAGE 2 OF 2

FREQUENCY INSTRUCTIONS

Quarterly Optional Clean Sweep™ Condensing Coil Cleaner: Disconnect power from case

before servicing the Clean Sweep™ Condenser Coil Cleaner!

 Remove air intake grille (by lifting up and off); no screw removal is required.

 Slide/roll out condensing package from underside of case assembly.

 Remove the four (4) screws holding the Clean Sweep™ rail intact.

 Remove the Clean Sweep™ rail.

 Wash rails’ brushes in hot water and mild soap solution.

 If brushes are worn, they must be replaced. Call Technical Service Department to

replace. Toll-Free number is listed at end of manual.

 Clean condensing coil: Use air pressure or industrial strength vacuum; clean the dust

and dirt that may collect on the condenser coil.

 Caution! Coil fins are sharp. Handle with care!

 Reattach Clean Sweep™ rail to condensing unit (4 screws).

 Slide/roll condensing package back under case.

 Replace air intake grille to case (4 screws).

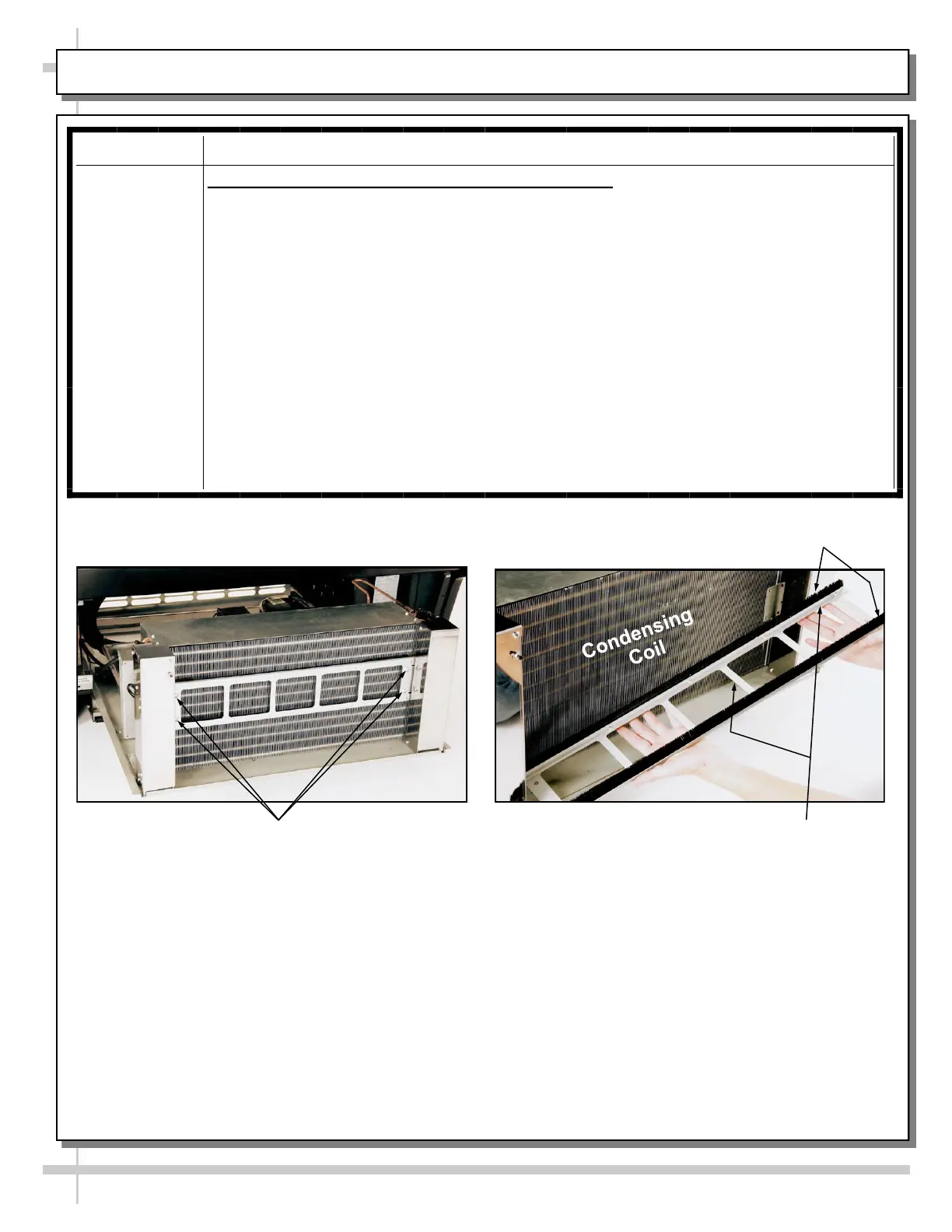

 See photos below.

(4) Screws

--- Above photos are taken after air intake grille has been removed from case ---

Brushes

Rail
