CASE DESIGN, CONT’D: LED LIGHT SWITCH LOCATION / LED LIGHTS / THERMOMETER

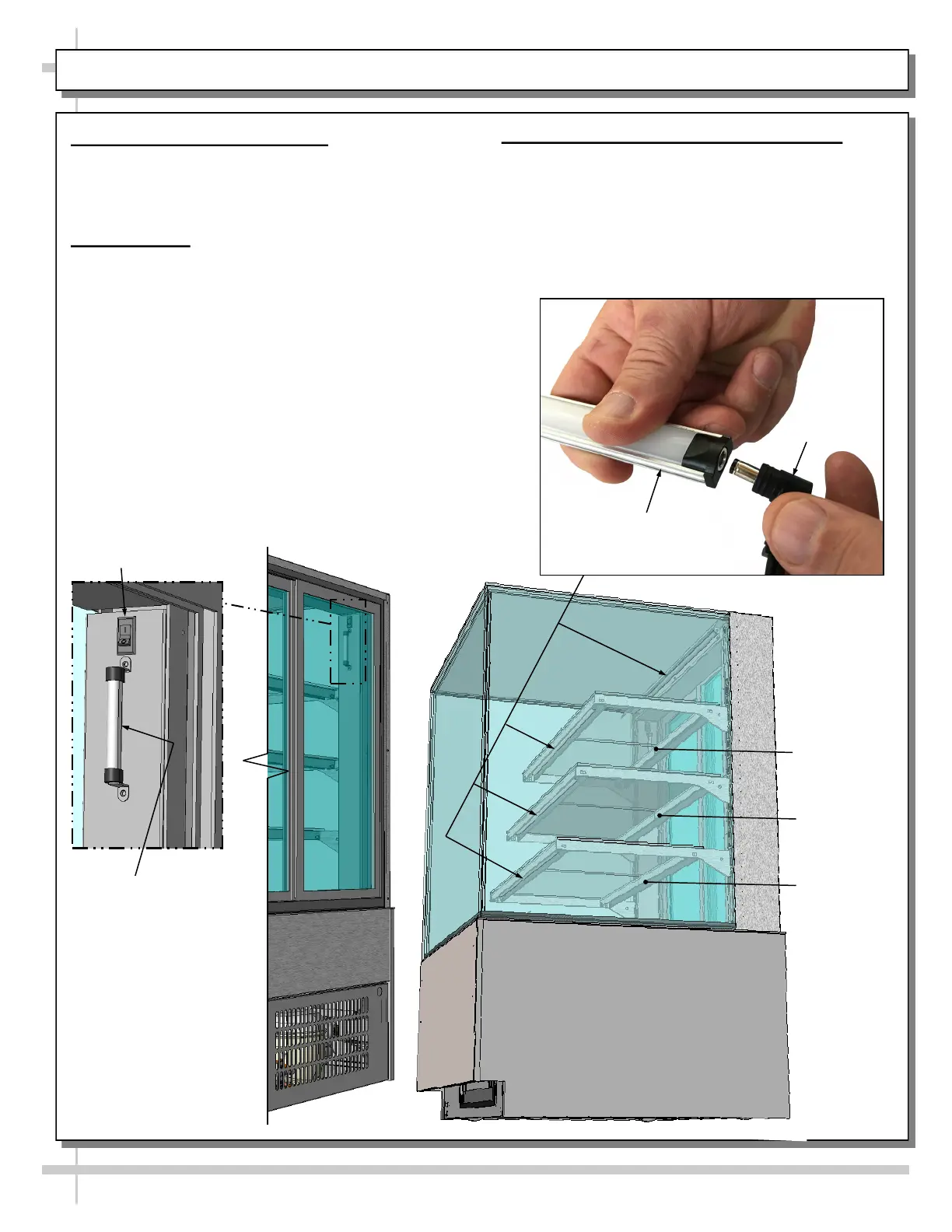

5. LED Light Switch Location

 Light switch is in column cover (accessible by

sliding open door at case rear).

 See illustrations below-right.

6. LED Lights

 LED lights are located at both header and

shelving of case (as shown below).

 Check that ALL of the light plugs are properly

connected to the LED light.

 Plug must be inserted ALL THE WAY into the

LED light orifice (with no gap) to work properly.

 See TROUBLESHOOTING section in manual

if LED lights malfunction.

Middle Shelf

Lower Shelf

Light Switch

Thermometer

7. Thermometer Function & Placement

 Thermometer provides temperature of

refrigerated section of case.

 Thermometers reflect warmest air

temperature in merchandiser. They do not

provide actual food temperature.

 Use probe thermometers to determine actual

product temperatures.

Top Shelf

LED Light

Plug
