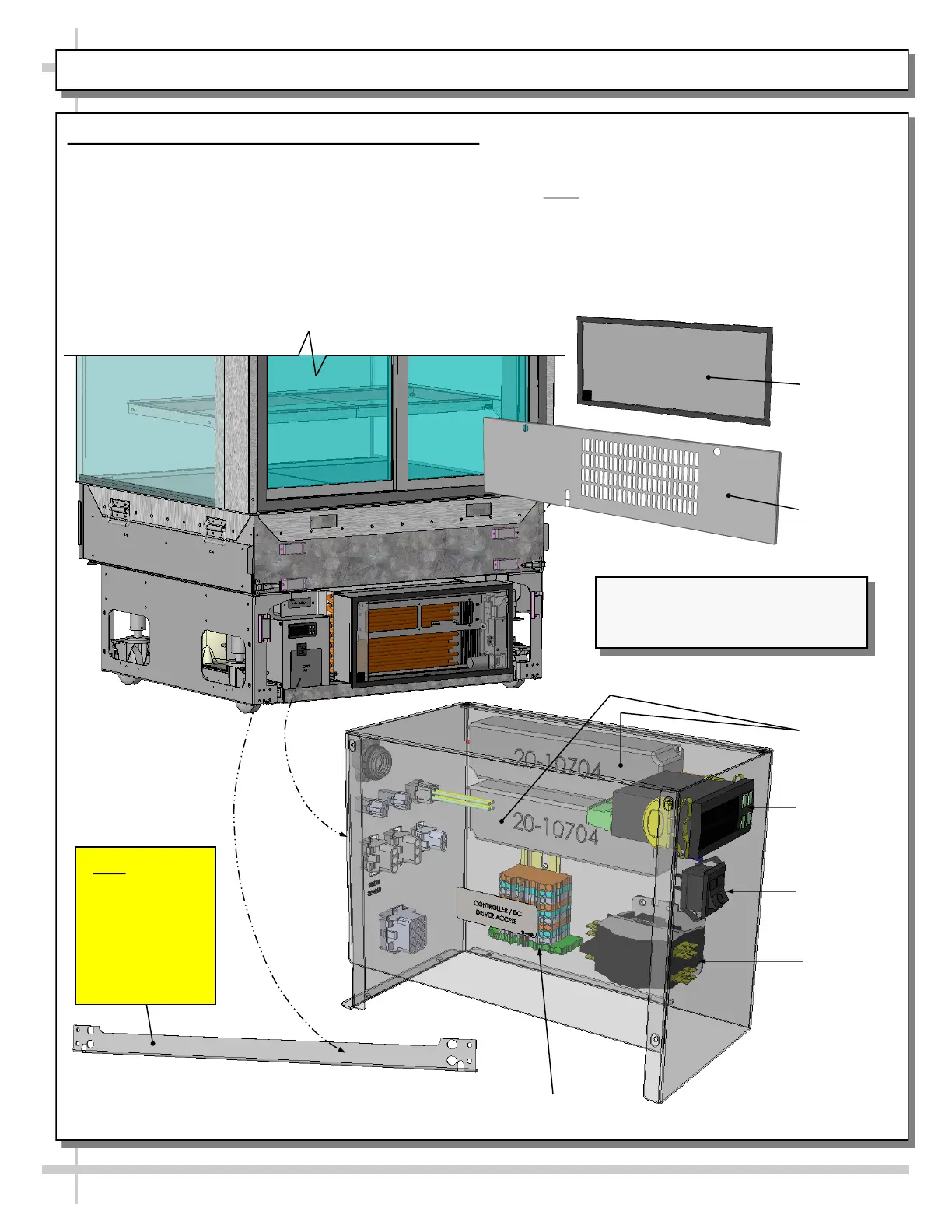

CASE DESIGN, CONT’D: CONTROLLER / DC DRIVERS / MAIN POWER SWITCH / COIL FILTER

3. Controller / DC Driver Access / Components

 Remove front panel by lifting up and off; no screw

removal is required.

 Magnetic condenser coil filter is directly accessible.

See CLEANING SCHEDULE (TO BE PERFORMED

BY STORE PERSONNEL) for cleaning

instructions.

 Remove shipping brace by loosening two (2)

shoulder screws.

 Remove 4 screws from the controller/DC

driver box cover to access electrical

components.

 Note: Only certified electricians are to access

electrical components in case.

 After accessing controller and/or DC drivers,

return components to case in reverse order

they were removed.

Main Power

Switch

Thermostat

Terminal Block

DC Drivers

Contactor

Panel Base

Front Kick

Magnetic

Condenser

Coil Filter

Free Standing Unit (Shown) May Not

Exactly Reflect Every Feature or

Option of Your Particular Case.

Note: Only The

Shipping Brace

That Is On Air

Intake Side Of

Condenser

Package (Shown

Above) Is To Be

Removed!
