CASE ADJOINMENT INSTRUCTIONS - PAGE 2 of 4

3. Industrial Grade Urethane Application

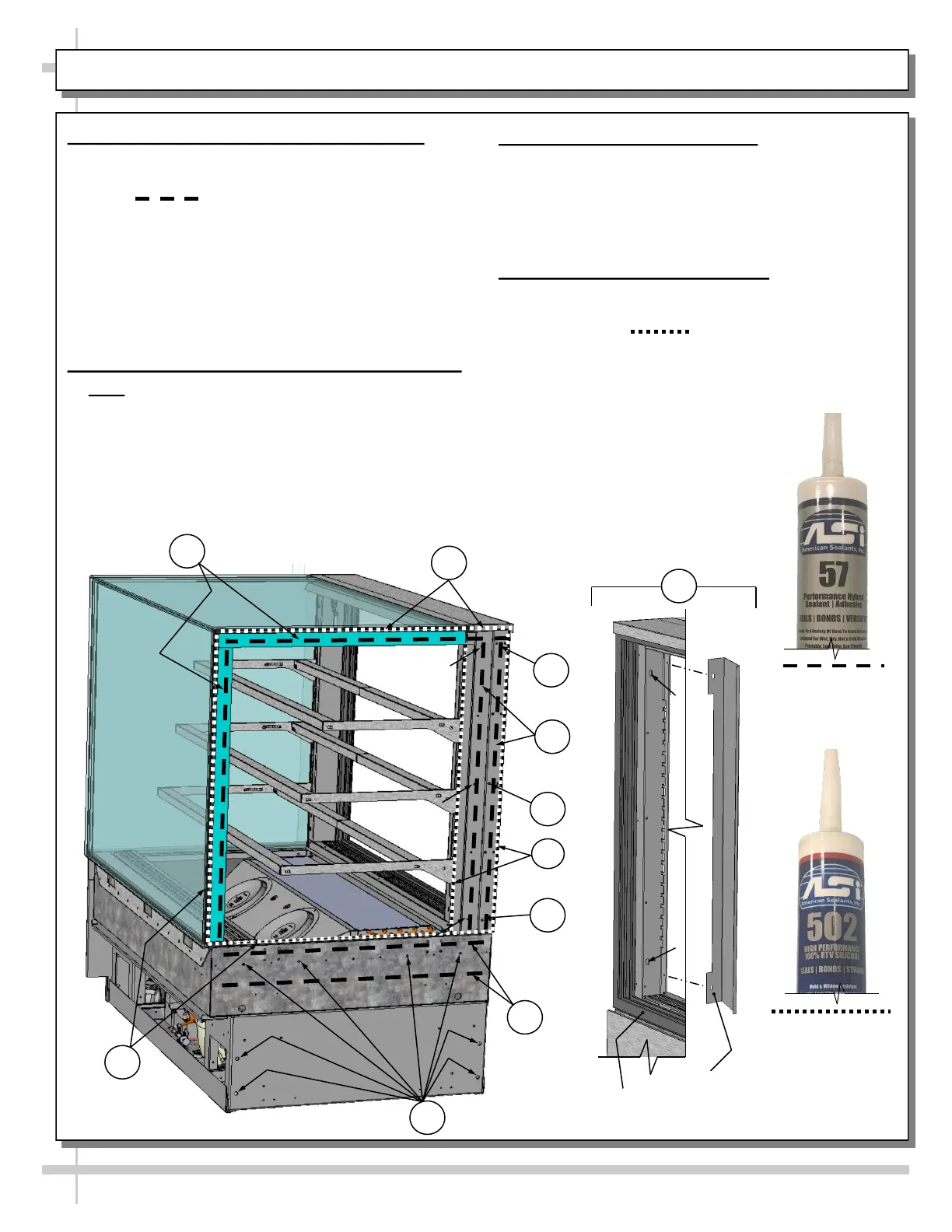

 Lay a generous, CONTINUOUS bead of

SCC-provided urethane adhesive (as identified

with line pattern shown below).

 Lay a generous bead of industrial grade urethane

adhesive at center of uprights (in non-visible areas).

 This urethane prevents refrigerated air from

escaping between cases (causing condensation

and reducing refrigeration efficiency) as well as

preventing ants or other insects from entering case.

 See illustration below.

4. Case Adjoinment w/SCC-Provided Screws

 Note: Cases in this adjoinment have a wide range

of surfaces (metal, foam board, blueboard, etc.).

 A variety of SCC-provided wood screws, bolts,

washers and nuts are provided in adjoinment kit.

 Due to wide range of hole locations, you must

access adjoinment points through rear door, rear

grille, decking, front panel and rear grille areas.

 Firmly tighten all screws!

Silver, Black or Clear

Silicone Sealant

Conforming To

NSF/ANSI 51

Specifications

(For Sanitation

Bead Applications)

5. Inner Raceway Adjoinment

 Inner raceway cover must be removed

(by removing 2 screws).

 Use 1/4-20 bolts, nuts and washers to attach

inner raceway upright to adjoining case.

 Then, reattach inner raceway cover.

6. Silicone Sealant Application

 After case is adjoined, apply a generous,

CONTINUOUS bead of silicone sealant (as

identified with line pattern shown below)

at both inner and outer adjoinment seams.

 When properly applied, this sealant will prevent

water from seeping between cases (into the case

or to the floor) as well as prevent

crumbs or other residue from

entering between case seams.

>> Adjoinment instructions continue

on next page.

Industrial Grade

Urethane Adhesive

(For Refrigeration

Bead Applications)
