INSTALLATION, CONT’D: ATTACHING SIDE PANELS, REAR PANEL AND REAR GRILLE

14. Attaching Side Panels

 Attach side panels to case using slot/hook

method.

 Use latches at case rear to firmly attach side

panels to case.

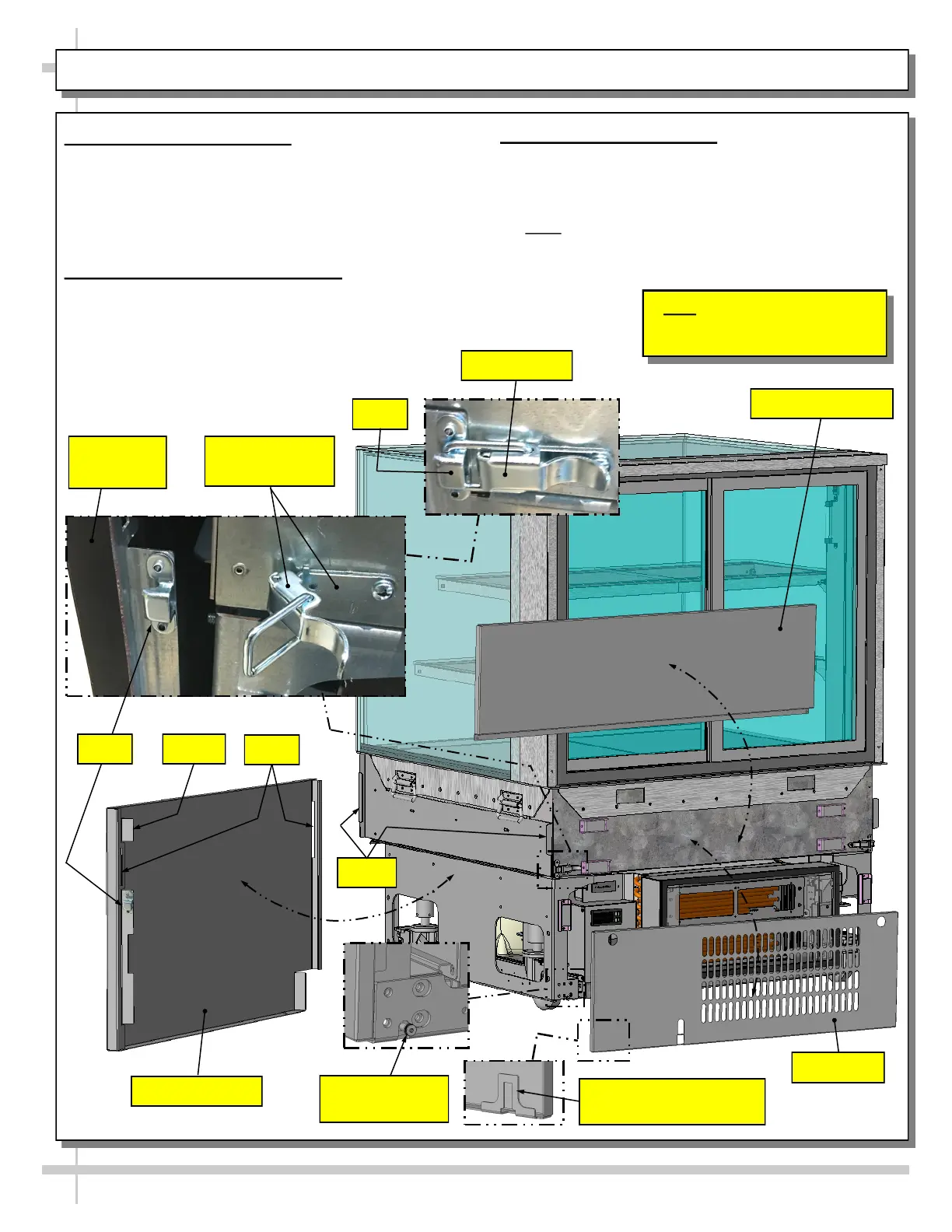

 See illustrations below.

15. Attaching Rear Upper Panel

 Place rear upper panel onto care rear.

 Four (4) magnets will hold it firmly in place.

 See illustration below

16. Attaching Rear Grille

 Use finger holes to place rear grille’s inner hooks

onto case rear’s lower shoulder screws.

 Snap onto case’s two (2) rear vertical magnets.

>> Note: Components may be removed in reverse

order they were shown being attached on this sheet.

Hook

Unlocked Latch

(Typ.)

Rear Grille

Side Panel (Typ.)

Rear Upper Panel

Slots

Side Panel

(Typ.)

Insert

Hooks

Locked Latch

Hook

Rear Grille Inner Hook

Shown Reversed (Typ.)

Shoulder Screw

(Typ.)

Note: Illustration shown may

not reflect every feature or

option of your particular case.
