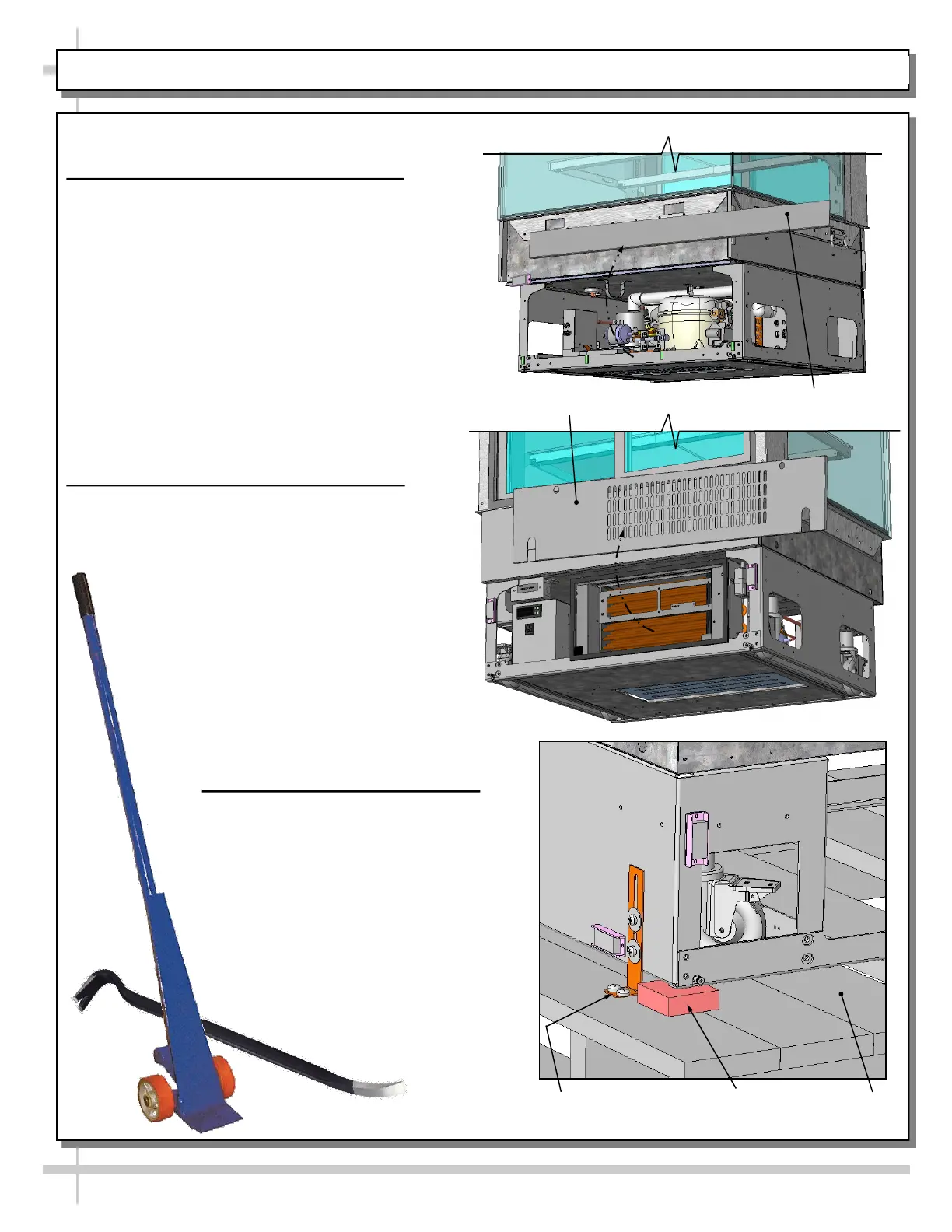

INSTALLATION: TOE-KICK & AIR INTAKE GRILLE REMOVAL / DISCONNECTING CASE FROM PALLET

Air Intake Grille

Front Toe-Kick

Pallet Rubber Shipping Block Shipping Bracket

1. Remove Front Toe-Kick From Case

 To prevent damage to case, remove front

toe-kick from case before removing from pallet.

 Toe-kick is held in place by magnets only.

No screw removal is required.

 Place front toe-kick in secure location while

removing case from pallet.

2. Remove Air Intake Grille From Case

 To prevent damage to case, if air intake grille

is on the case, lift it UP and OFF.

 Air intake grille is held in place by magnets.

No screw removal is required.

 Place air intake grille in secure location

while removing case from pallet.

3. Disconnect Case From Pallet

 Remove screws from shipping

brackets. Remove and discard

shipping brackets from pallet.

 Place J-bar/pry under base frame.

Raise case up from pallet to take

weight off casters.

 With case raised, lower casters all the

way down against pallet (see next

step for detailed instructions on

lowering or raising casters).

 Remove rubber shipping blocks.
