HINGED DOORS / LED DRIVER BOX ACCESS
1. Hinged Doors
• Hinged doors are illustrated below.
• Simply grasp handles and open doors to access
product.
2. LED Driver Access Box
• Caution! Only certified electricians should access
LED driver box!
• Access LED driver by opening hinged door.
• Remove LED driver box cover (via removal of
two screws).
• Remove cover tabs by lifting up and out of the
slots (that are in deck pan).

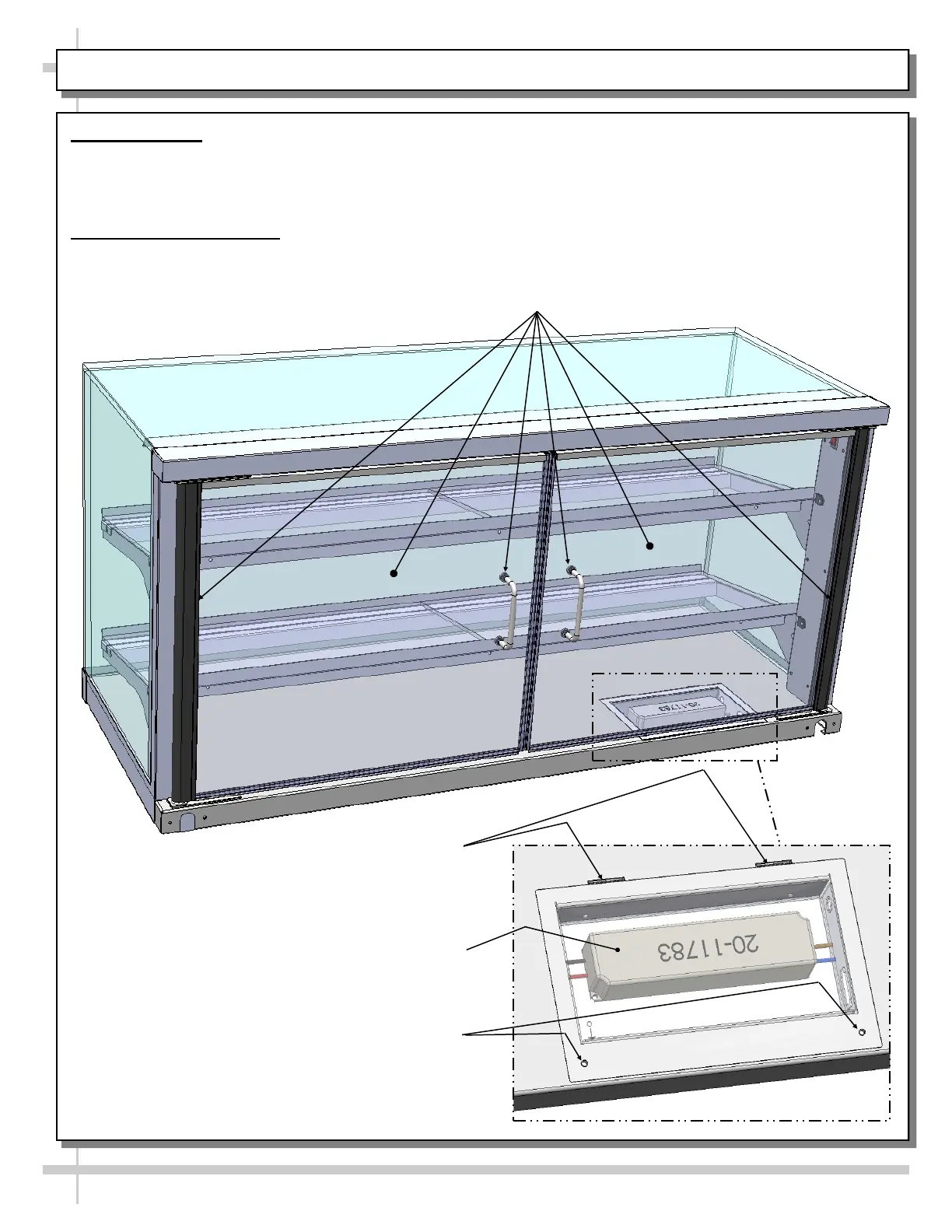

Led Driver Tabs (That
Slide In Deck Pan Slots)
Led Driver
LED Driver Box Cover
Retaining Screws
Hinged Doors, Hinges and Handles (Typ.)
