LED Style Light Fixtures

Removal of Faulty LED Lights:

• LED lights rarely require change-out.

• Contact Structural Concepts’ Technical Service

Department for replacement LED lights.

• Turn off LED light switch.

• To remove faulty LED light, follow these steps:

A. Disconnect plug from LED light.

B. Using both hands, grasp LED light assembly

(with its magnetic mounting clips). Pull

downward and off its shelf (or header).

C. Remove magnetic mounting clips from LED

light by pressing against flange part of clip

with thumb.

>> Note: Mounting clips MAY be riveted to shelf or

header. In such instances, simply remove LED light

from mounting clips by pressing against flange part

of clips with thumb.

LED STYLE LIGHT FIXTURES

Replacement of LED lights:

• Attach magnetic mounting clips onto LED light.

• Adjust magnetic mounting clips so they are equally

spaced on LED light.

• Reattach LED light assembly to its shelf/header.

• Position properly in shelf/header.

>> Note: If mounting clips are riveted to shelf (or

header), attach by placing LED in base of clip and

then snapping into clip at FLANGE SIDE.

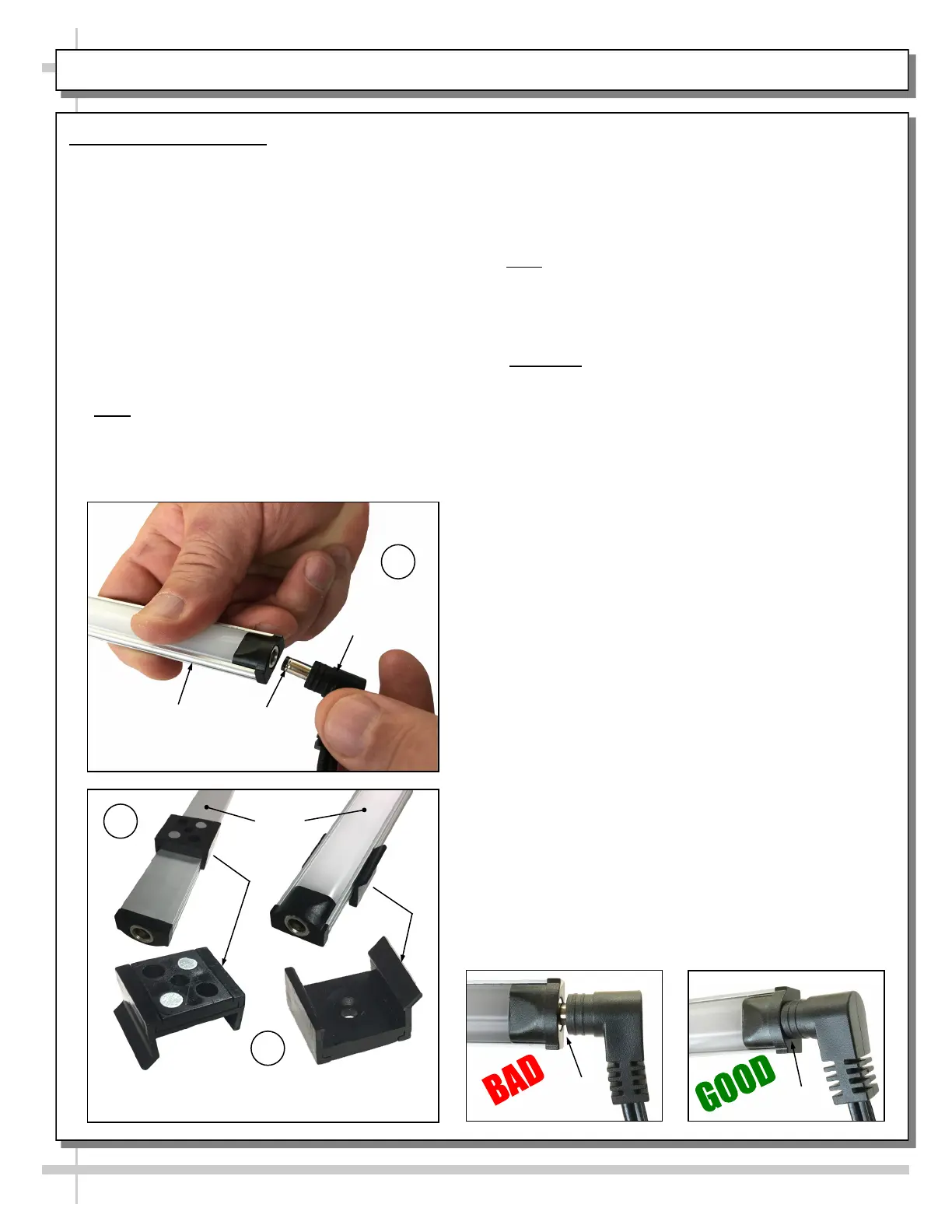

• Press plug’s barrel-shaped insert all the way into

LED light.

• Important: If plug is not inserted ALL THE WAY IN

the LED light’s orifice, the light may not energize.

See “BAD” vs. “GOOD” insertion illustrations

below-right.

• Turn LED light switch back on.

No Gap

Gap

Magnetic

Mounting Clip View #2

LED

Lights

Plug

Barrel

Shaped

Insert

LED

Light

Magnetic

Mounting Clip View #2
