7

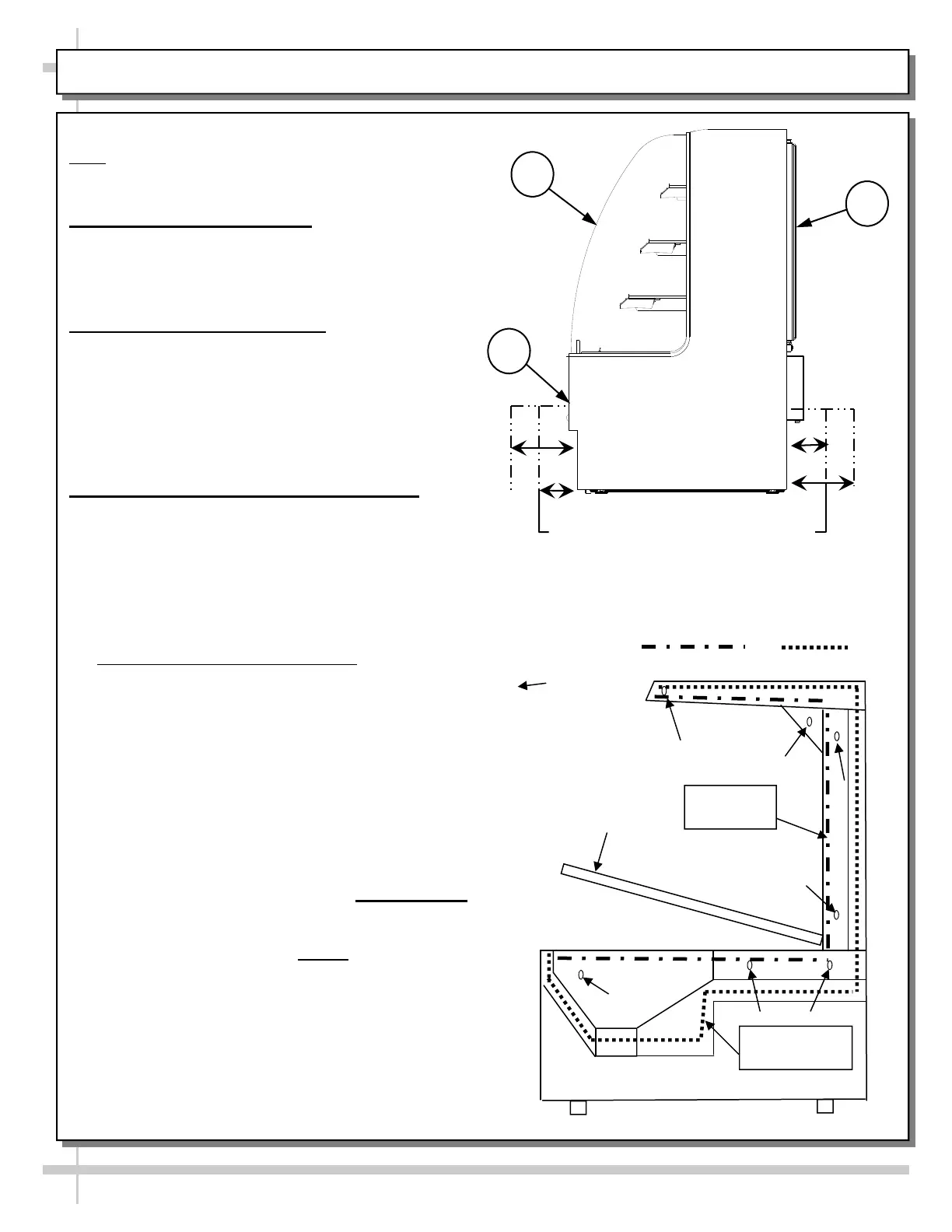

INSTALLATION - CAULKING AND BOLTING UNITS TOGETHER
Installation
Note
: Units shown may not depict an exact
representation of your particular unit being installed.
1. Position and Level Units
Position Units. Align multiple units carefully in
areas A, B, and C.
See illustration at right.
2. Ventilation and Clearance
Self-Contained refrigerated cases must
maintain airflow clearance of 6” (minimum) to
12” (recommended) at front and rear.
Restriction of air can void warranty.
Illustration at top-right may not reflect every
feature or option of your particular case.
3. Caulking and Bolting Units Together
Follow these steps to assure a secure, level lineup.
A. Begin all lineups leveling from highest point of
floor.
B. After the ’first’ case is level, apply industrial
grade butyl caulk on non-visible areas (at case
end). Use industrial grade silicone sealant on
visible areas (at case end).
C. Form Two (2) Caulk/Sealant Lines
: (Sanitation
and Refrigeration). See illustration at
below-right for outline of caulk/sealant lines.
D. Line up ‘second’ case bolt-hole to bolt-hole to
‘first’ case.
E. Using SCC-supplied bolts (found in installation
packet), insert bolts in bolt hole locations (shown
at right). You may need to remove decking to
access lower bolt holes.
F. Caution! Front of cases MUST be flush with
each other! Also, after leveling, all cases to be
at same height.
G. Using SCC-supplied nuts & bolts, lightly tighten
each of the 5 to 8 bolts in a cross-wise pattern.
Work your way around the pattern, tightening
more firmly at each pass. Do not
firmly tighten
one bolt and then start on the next!
H. After the cases are bolted together, level the
‘second’ case. Repeat this process for each
case to be adjoined.
I. After all lined-up cases are level, seal all seams
with industrial grade silicone sealant.
Approximate hole
locations pointed
at with arrows
( ) below
Sanitation Bead
Refrigeration Bead
Deck
Sanitation
Bead
Refrigeration
Bead
A
B
C
Check air grilles for obstructions.
Maintain airflow clearance of 6” (min.)
to 12” (recommended) at front & rear.
