SECURITY GRID INFORMATION - PAGE #1 of 2
NOTE: ILLUSTRATIONS MAY NOT
EXACTLY REFLECT EVERY
PARTICULAR CASE’S FEATURES
1. Initial Positioning and Installation of Security Grid
1. Due to weight and size, Security Grid installment requires two (2) people.
2. After hoisting the Security Grid directly over Front Air Deflector, drop the
(2) Security Grid Positioning Tabs into the Baffle Airflow Slots (see
enlarged view below).
3. After securely positioned in the Baffle Airflow Slots, carefully and slowly
lean the Security Grid back against the two Security Brackets.
4. The next page in this manual will show how to secure the top of the
Security Grid to the Security Brackets.

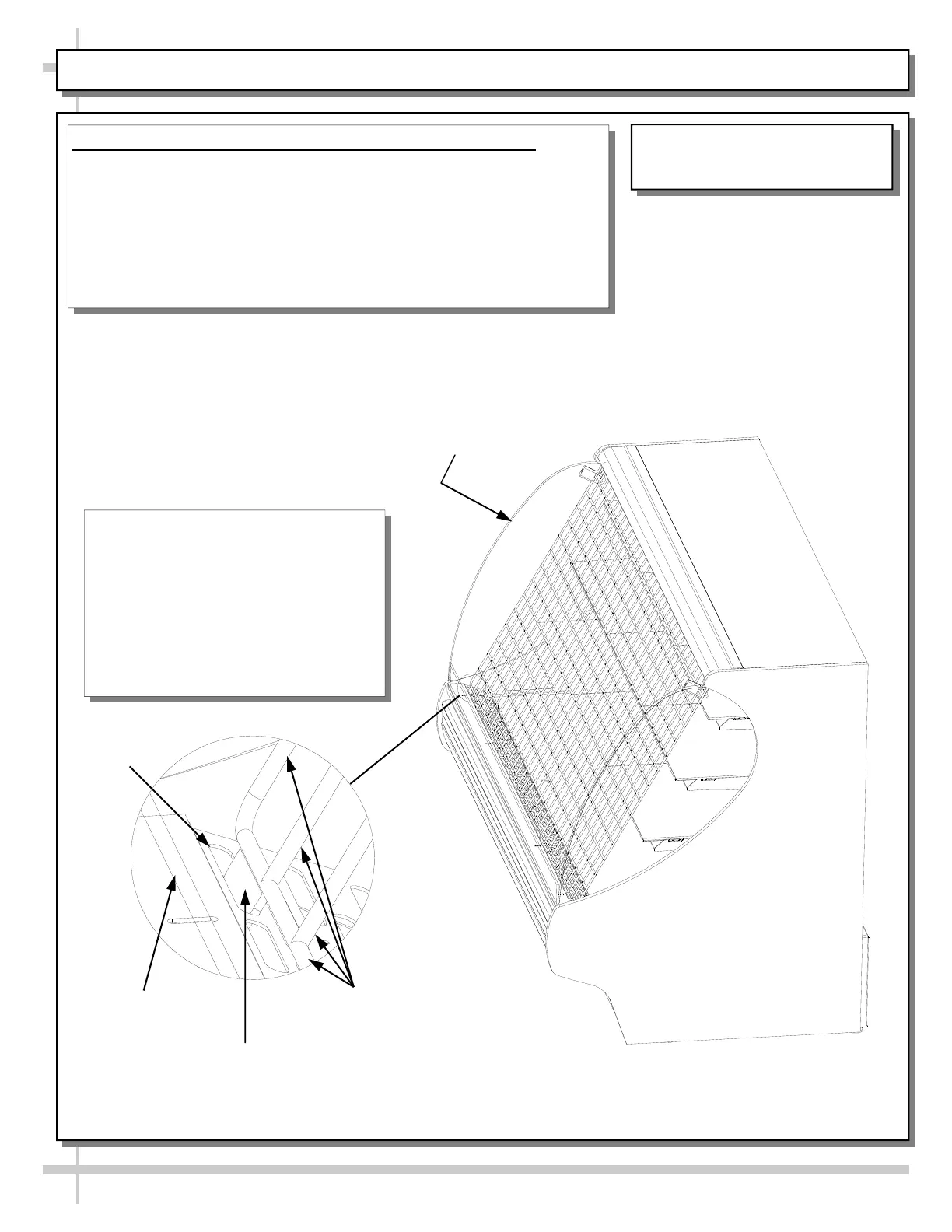

Enlarged View (Below)
Enlarged View (shown below) shows
Security Grid Positioning Tab slid into
Baffle Airflow Slot.
There is one Security Grid Positioning
Tab on each Security Grid end.
Tabs must be securely positioned in
both Airflow Slots prior to locking with
Padlocks.
Baffle Air-
flow Slot
Security Grid
Security Grid
Positioning Tab
Front
Air Deflector
End Glass
22
