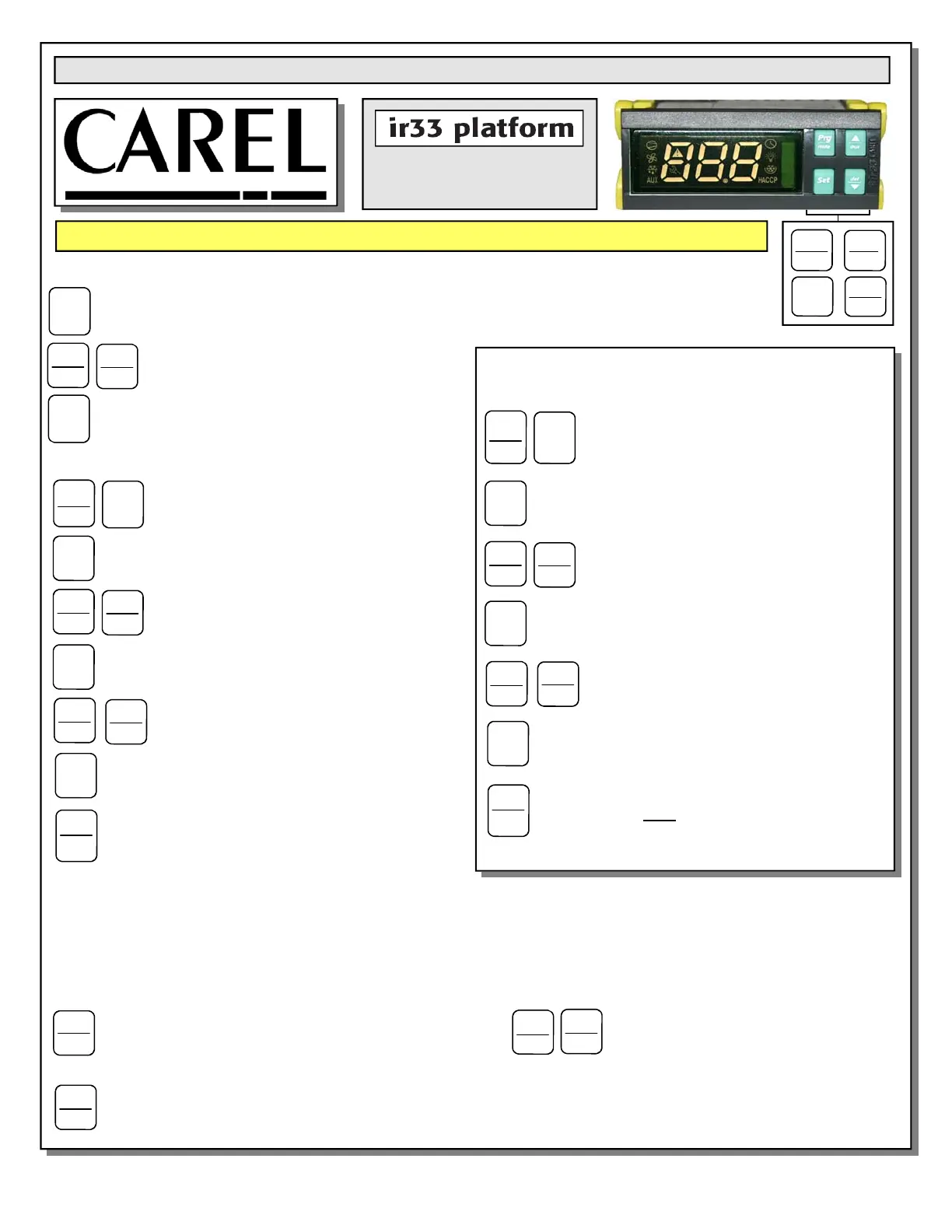

Integrated Electronic

Microprocessor Controller

Read And Save These Instructions - Page 1 of 3

Programming The Instrument

To Modify The Setpoint

Press and hold the “SET” key for at least 1 second.

2. Use arrow keys ▲ ▼ on temperature

controller to increase (or decrease) the

setpoint.

3. Quickly press and release the “SET” key again.

To Modify Defrost, Differential or Other Parameters

1. Press & hold “Prg” & “SET” keys together

for five (5) seconds; display will flash “0”,

representing password prompt.

2. Confirm by pressing “SET” key.

3. Press ▲ or ▼ to reach the

category to be modified.

4. Press “SET” to modify this selected parameter.

5. Increase or decrease the value using

the ▲ or ▼ button respectively.

6. Press the “SET” key to temporarily save the new

value and return to the display of the parameter.

7. Press & hold the “Prg” key for at least 5 seconds

to save changes. This action will also mute the

audible alarm (buzzer) & deactivate the alarm relay.

Warning! Save Your Parameter Settings!

1. To store the new parameter values, PRESS and HOLD the “Prg” key for at least 5 seconds.

2. All modifications made to parameters will be lost if you do NOT press a button within 60 seconds. Should

this “timeout” occur, normal operational settings (prior to modifications being made) will resume.

3. If the instrument is switched off before pressing the “Prg” key, all modifications to parameters will be lost.

Set

▲

aux

Prg

mute

def

▼

Prg

mute

Set

def

▼

Set

▲

aux

▲

aux

def

▼

Set

Prg

mute

Structural Concepts Corp., 888 E. Porter Rd · Muskegon, MI 49441

Ph: 231.798.8888 / Fax: 231-798-0393 / www.structuralconcepts.com

I:\Oper Manuals - PUB\Templates\Carel Controller\Carel Controller IR33.pub

This data derived from Carel Material: ir33 +030220441 - rel. 2.0 - 01.05.2006

How To Change Reading From

Fahrenheit (°F) To Celsius (°C)

1. Press and hold “Prg” and “SET” keys

together for at least 5 seconds; display will

show “0”, representing password prompt.

2. Confirm by pressing “SET” key.

3. Press ▲ or ▼ until reaching the

parameter “/ 5”.

4. Press “SET” to modify this selected parameter.

5. Press ▲ or ▼ to change value to desired

setting: “0” for Celsius (°C) or “1” for

Fahrenheit (°F).

6. Press “SET” key to temporarily save the new

value and return to the display of the parameter.

7. Press & hold “Prg” key for at least 5 seconds to

save changes.

Note! All values will automatically

convert to new scale. No conversion is required.

Prg

mute

Set

def

▼

▲

aux

Set

▲

aux

def

▼

Set

Prg

mute

Set

def

▼

▲

aux

To Activate / Deactivate Auxiliary Output

Press and hold the “aux” key for 1 second.

▲

aux

To Activate Manual Defrost

Press and hold the “def” key for at least 5 seconds.

def

▼

To Reset Any Alarms With Manual

Reset

Press and hold the “Prg” and “aux”

key for at least 1 second.

▲

aux

Prg

mute
