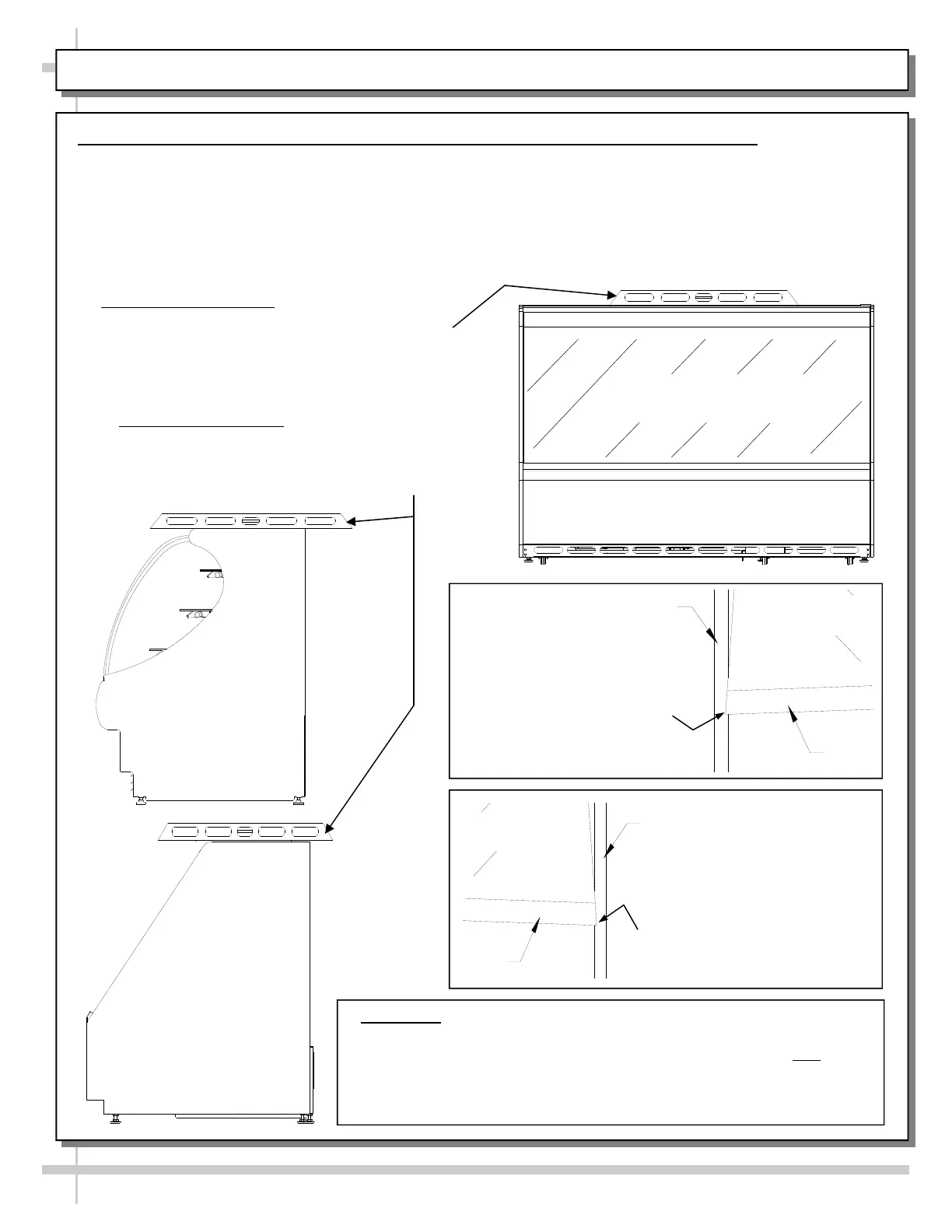

INSTALLATION, CONTINUED: FRONT GLASS ALIGNMENT & ADJUSTMENT

—- Front Glass —-

Case with Curved

Front Glass

Case with Flat

Front Glass

LIFT

END

PANEL

CURVED

FRONT

GLASS

3. If FRONT-LEFT CORNER

is too close to end panel (or

hitting it), adjust levelers at

the BACK LEFT CORNER

of case DOWNWARD.

2. Front-to-Back Leveling: Place a level on top of

case, perpendicular to front glass. Raise or lower

either side of case by rotating levelers to center the

level bubble. Double-check the side-to-side level.

1. Side-to-Side Leveling: Place a level on top of

display case (parallel to the front glass). Raise or

lower either side of the case by rotating levelers to

center the level bubble.

CURVED

FRONT

GLASS

END

PANEL

LIFT

4. If FRONT-RIGHT CORNER

is too close to end panel (or

hitting it), adjust levelers at the

BACK RIGHT CORNER of

case DOWNWARD.

5. Verification: After inserting shims (or adjusting levelers), open and shut

the front glass to confirm proper fit.

 Verify (again) that front glass is properly aligned at left-hand and right-

hand side of the case.

 If not, repeat the shimming procedure (or leveler adjustment) until the

front glass is properly aligned along both sides of the case.

Front Glass Alignment & Adjustment via Levelers (For Curved and Flat Front Glass)

 Proper alignment of the front glass is important to create and maintain a seal inside the case.

 Improper alignment can cause air leaks compromising the environment inside the case and create

condensation.

 Follow the five steps listed below to assure proper front glass alignment.
