INSTALLATION, CONTINUED: ELECTRICAL CONNECTIONS

5. Electrical Connections

 Ballast Box: Remove 4 screws from the thermostat/ballast cover. Remove screws holding ballast

cover to base.

 Knockouts are located on side and rear of box for making electrical connections.

 Note: Standard 120V or 220V (depending upon case chosen), single phase connections are

required for self contained refrigeration units and must be performed by a certified electrician.

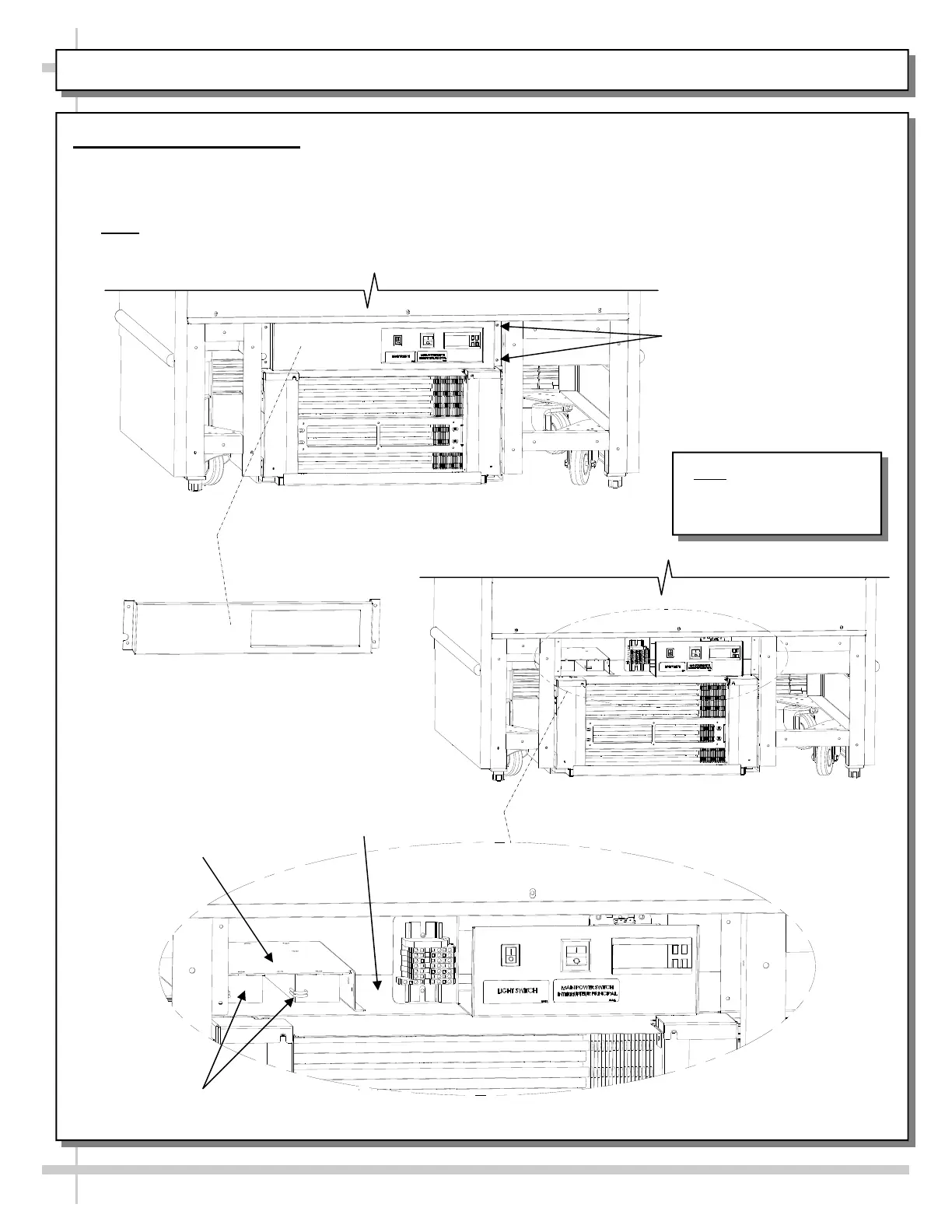

Remove two (2) screws at

each end of cover to remove

thermostat/ballast cover.

Thermostat/Ballast Cover

View of case with

thermostat/ballast cover intact

View of case with

thermostat/ballast cover removed

Enlarged view of thermostat/ballast area

Ballast Cover

Ballasts

Base

Note: Illustrations shown

with rear grille removed for

illustrative purposes only.
