ADJOINMENT GUIDE, CONTINUED: REAR ADJOINMENT ACCESS (VIA COVER PLATE REMOVAL)

Adjoinment Guide, Continued

3. Rear Adjoinment Cover Plate

• Removal of rear adjoinment cover plate

allows access to inner end panels (at both

ends of case).

• Attach through end panel to adjacent case

end panel with wood screws.

• Note: Drill bits for pilot holes and wood

screws are included in adjoinment kit.

• Return rear adjoinment cover plate to case in

reverse order it was removed.

Apply Wood Screw

Through Inner End

Panel After Rear

Adjoinment Cover Plate

Has Been Removed

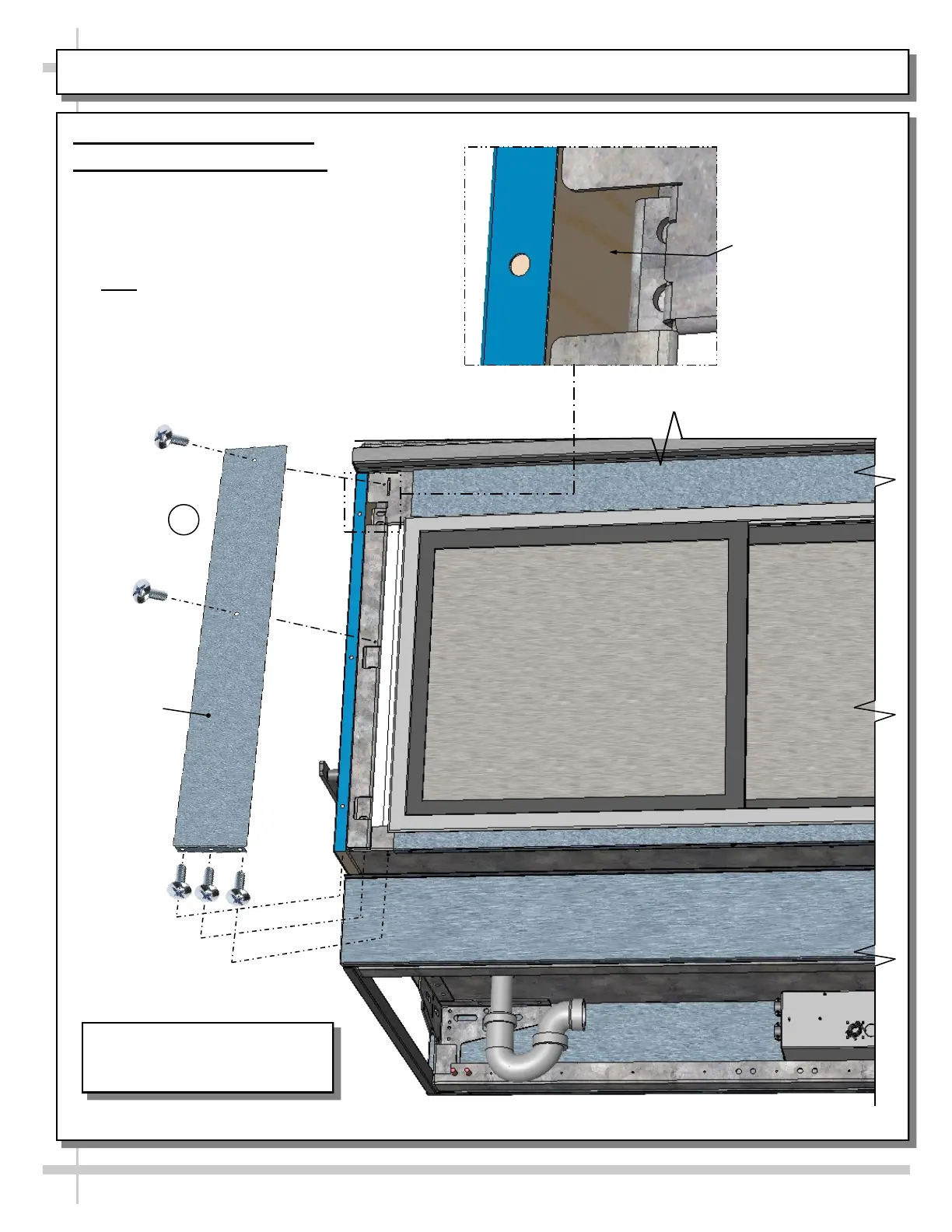

Illustration Shown May Not

Reflect Every Feature Or Option

of Your Particular Case.

Rear

Adjoinment

Cover Plate
