START-UP & OPERATION - REFRIGERATED UPPER SECTION

Note: Exact location of fans, refrigeration lines,

coil, shroud, valves and thermometer may vary

depending upon your case.

Merchandiser Start-Up and Operation

1. Powering Up Refrigerated Section

• Refrigeration upper section energize when

field-wired.

• Listen for fans to verify that unit is energized.

2. Axial Fans

• After removal of pans, axial fans are accessible.

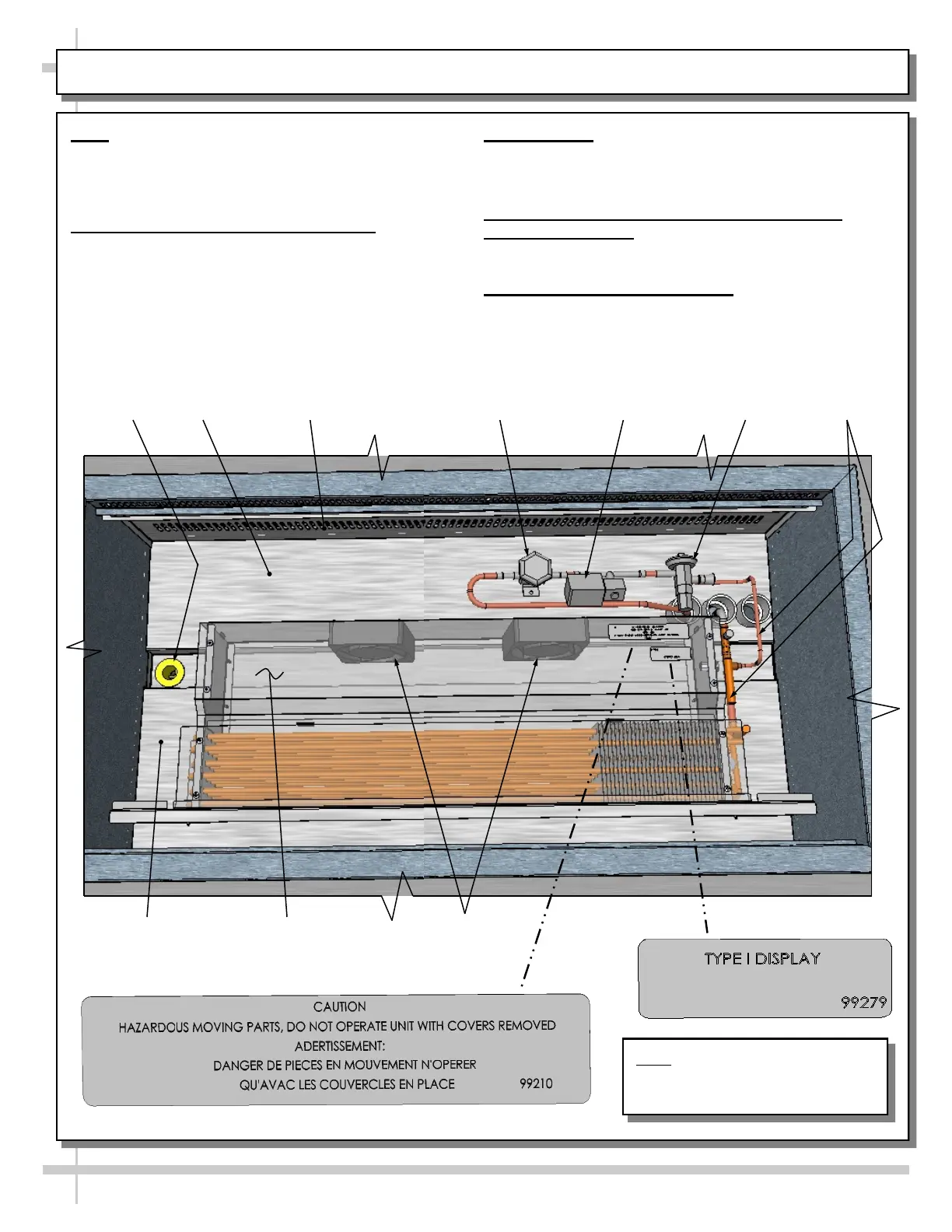

• See transparent illustration below.

3. Refrigeration Lines, Solenoid Valve, TXV,

Shutoff Valve, Etc.

• See illustration below for locations.

4. Cleaning Refrigeration Area

• Refrigeration area must be cleaned regularly.

• See cleaning schedule in this manual for specifics.

Refrigeration

Lines

Shutoff Valve

Axial Fans

(Typ.)

Drain

Evaporator Fan Shroud

(Shown Transparent)

Solenoid Valve

Inner Perforated

Panel (Typ.)

Tub

Note: Illustration Shown May Not

Reflect Every Feature Or Option

of Your Particular Case.
