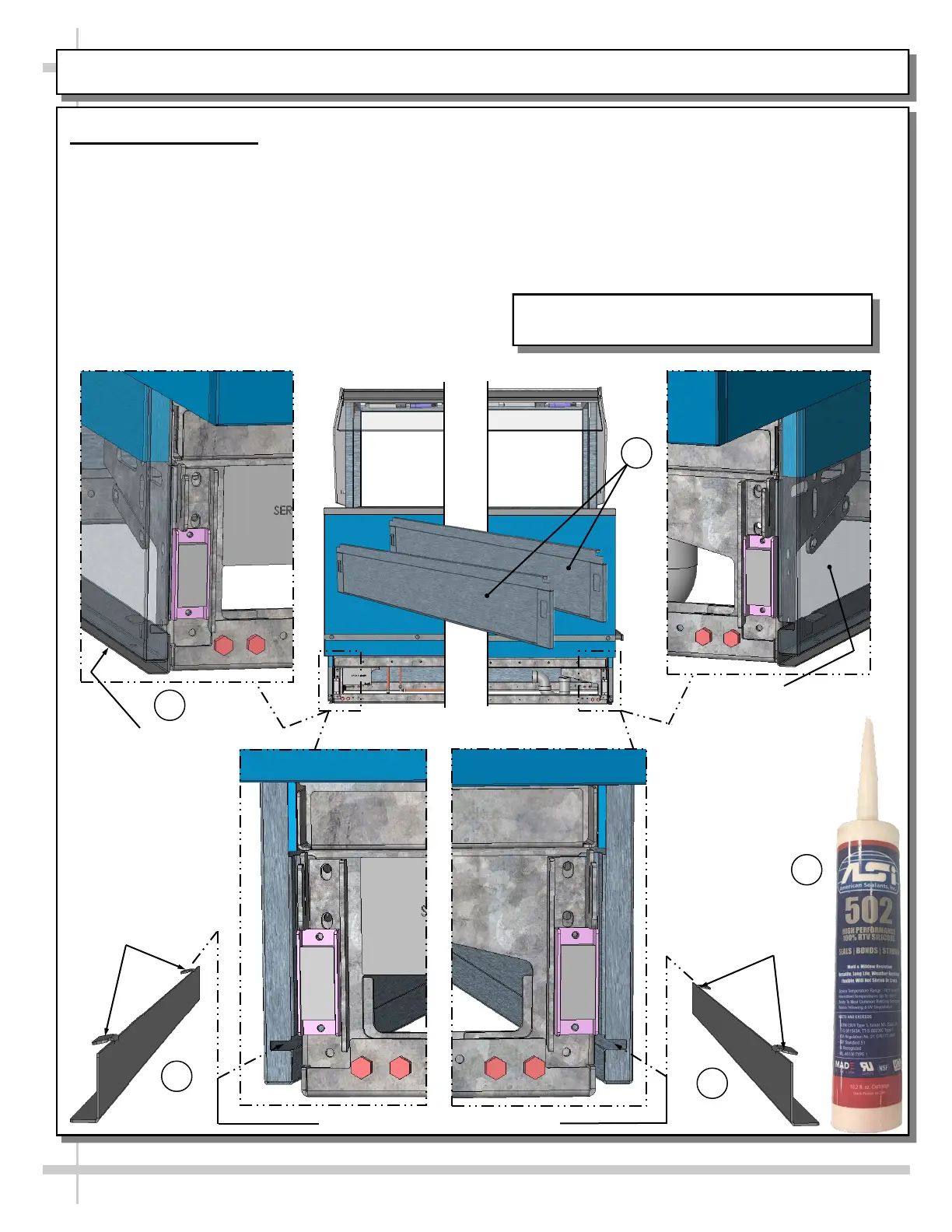

SPLASH GUARD BRACKETS: INSERTION AT CASE FRONT / ADJUSTABILITY / SEALING TO FLOOR

Case Front Views

Splash Guard Bracket

Shown Inserted Into

Base End Panel And

Flush To Floor

Splash Guard Brackets

• The separately shipped splash guard brackets are

designed to prevent entry or leakage of liquid or

moisture to underside of case.

• Case must be properly positioned and frame

support rails shimmed before bracket placement.

• Follow these instructions for proper splash guard

placement.

1. Remove front toe-kick (slot/hook/magnet method).

2. Insert the separately shipped splash guard

brackets into the base end panel slots.

3. Slide splash guard brackets into base end panels

until tabs drop into panel slots. Splash guard

brackets will now self-adjust flush to floor.

4. Raise splash guards upward and apply a bead of

industrial grade silicone sealant to underside.

Press splash guards bracket firmly to floor.

>> Replace front toe-kick.

Base End Panel

(Shown Transparent)

With Splash Guard

Bracket Shown

Inserted Inserted And

Flush To Floor

Tabs

Model FB8SS-6R Is Shown. It May Not Reflect

Every Feature Or Option of Your Particular Case.

Slots For Splash Guard Bracket Tabs
