UV-BONDED GLASS ENCLOSURE DESIGN OPTIONS

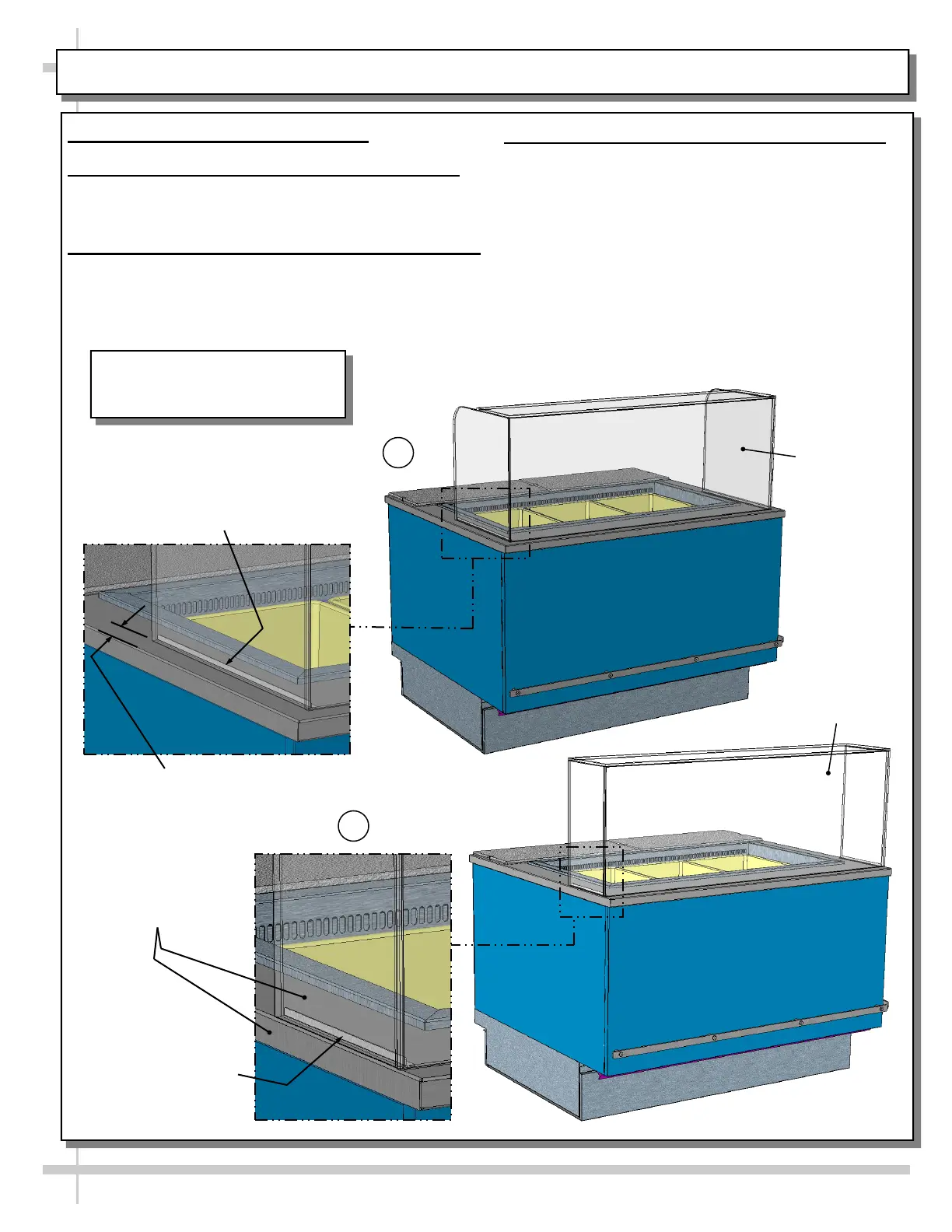

UV-Bonded Glass Enclosure Options

1. Standard UV-Bonded Glass Enclosure Design

• Standard glass enclosures have a 1 1/2” space

between glass and work surface edge.

2. Continuous UV-Bonded Glass Enclosure Design

• Extended UV-bonded glass enclosures are flush to

work surface edge.

• This feature may be either at BOTH ends of case.

3. UV-Bonded Glass Installation Sheets/Guides

See documents included with shipment:

A. P/N 20-60789 UV-Bonded Glass Crate Removal

Sheet

B. P/N 20-76828 UV-Bonded Glass Alignment/

Placement Sheet

C. P/N 20-71700 UV-Bonded Glass Installation

Guide

D. P/N 20-76539 UV-Bonded Glass Installation

Guide (Spanish Version)

1 1/2” Space Between

Glass And Work Surface

Edge (At Both Ends)

Standard

UV-Bonded

Glass

Enclosure

Design

Continuous

UV-Bonded

Glass Enclosure

Design

Support Bracket (Glued

To Inner UV-Bonded

Glass At Factory)

--------------------

Attach To Work Surface

With Tape (From Factory)

Glass Is Flush To Work

Surface Edge

(At One or Both Ends)

Support Bracket (Glued To Inner

UV-Bonded Glass At Factory)

--------------------

Attach To Work Surface With

Tape (From Factory)

Rear View of Model FB4S-3R Is

Shown. It May Not Reflect Every

Feature Or Option of Your Case.
