BASE FRAMES / REMOVABLE FRONT AND REAR TOE-KICKS

1. Base Frames

• Illustration below shows random case with base

frames at underside.

• Base frames must be shimmed.

• Shims will be provided with all cases.

• Note: After case is in position, it must be

sealed to floor to prevent entry or leakage of

liquid or moisture.

2. Removable Front and Rear Toe-Kicks

• Front and rear toe-kicks consist of slots that may

be lifted up and off case hooks (no screw removal)

and separated from magnets.

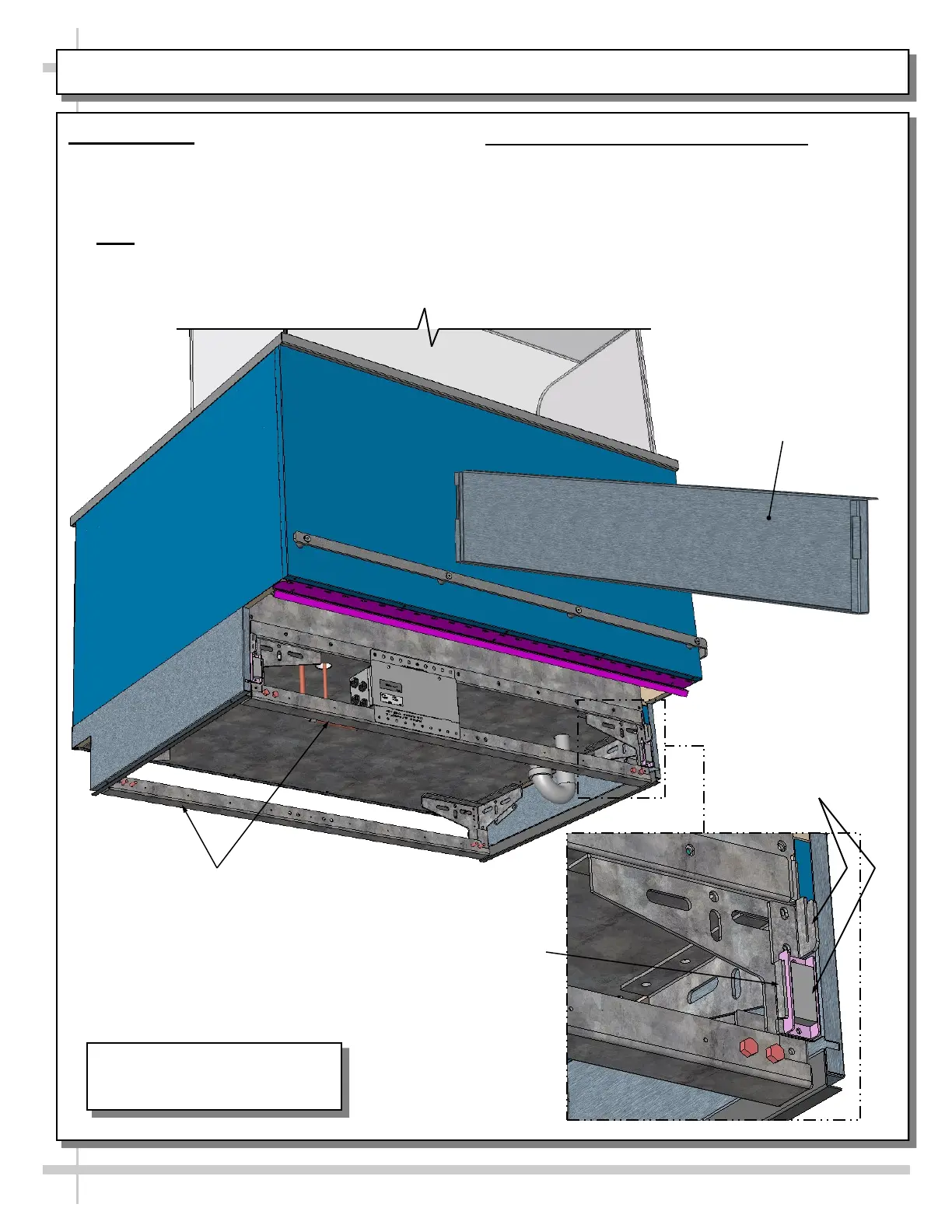

• Illustration below shows front toe-kicks being

removed.

• Return to case after accessing for cleaning or

service.

Front Toe-Kick Hook

and Magnet (No Screw

Removal Required)

Base Frames

Removable Front Toe-Kick

Shown Removed From Case

(And Reversed For Illustrative

Purposes Only)

J-Bar / Fork-Lift

Tab (Typ.)

Rear View of Model FB4S-3R Is

Shown. It May Not Reflect Every

Feature Or Option of Your Case.
