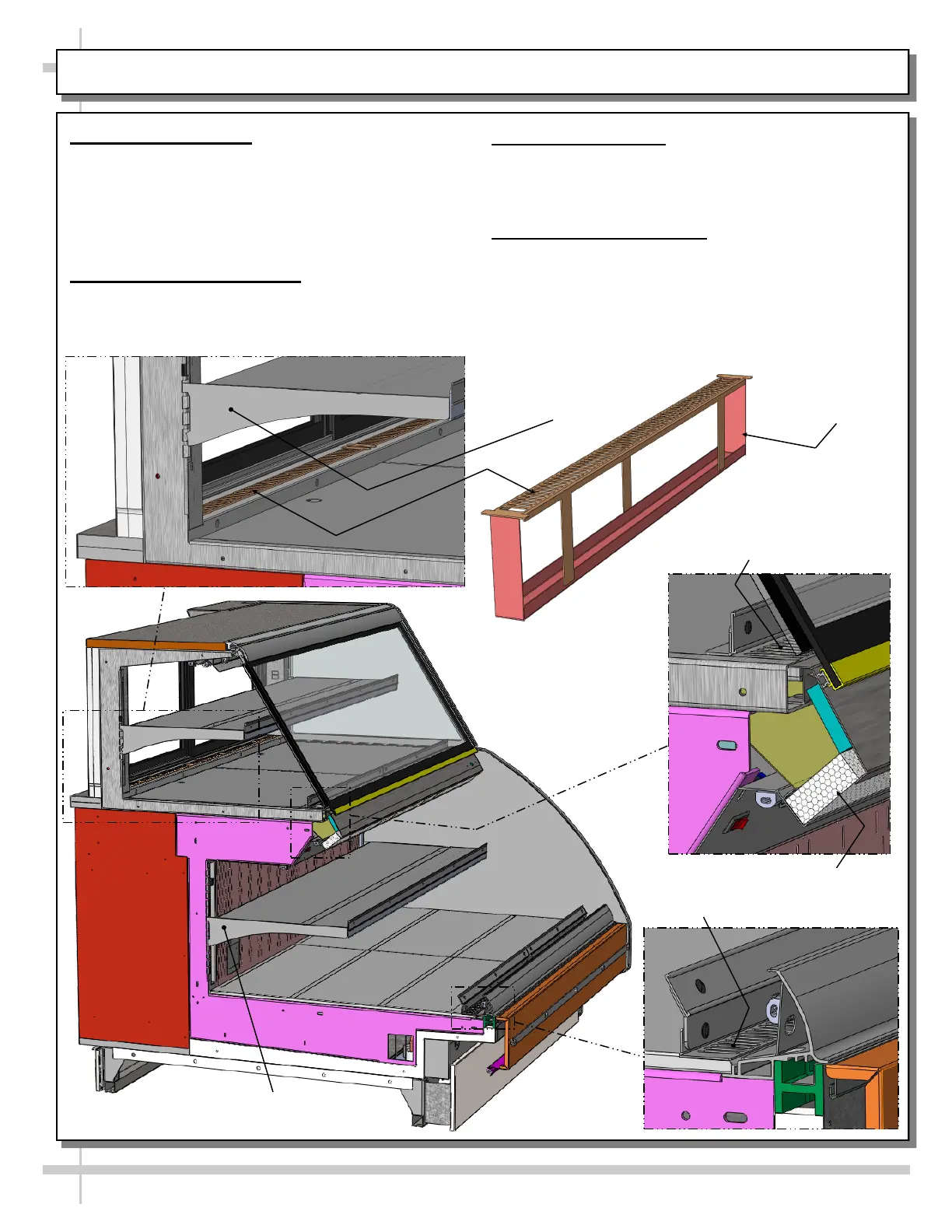

MODEL GP540RRLB.5571B - SHELVING / CRUMB TRAY / DECKING AIR RETURN / HONEYCOMB

1. Adjustable Shelving

• Upper shelving can be tipped downward either 5°

or 10° for display purposes.

• Lower shelving may either be tipped downward

OR raised or lowered (by simply removing and

placing in notches above or below.

2. Air Discharge/Crumb Tray

• Air discharge crumb tray can be lifted up and out

to empty crumbs and residue.

3. Decking/Air Return

• Decking/Air return must remain free from product.

• Do not place product on this area as it will prevent

proper airflow and prevent proper cooling of case.

4. Honeycomb Air Diffuser

• Honeycomb air diffuser can be removed for

cleaning and/or replacement.

• See MAINTENANCE FUNDAMENTALS -

HONEYCOMB AIR DIFFUSERS (SERVICE

TECHNICIANS ONLY) section in this manual.

Air Discharge /

Crumb Tray

Decking / Air

Return

Honeycomb

Air Diffuser

Air Return

Upper Section

Adjustable Shelving

Lower Section

Adjustable Shelving
