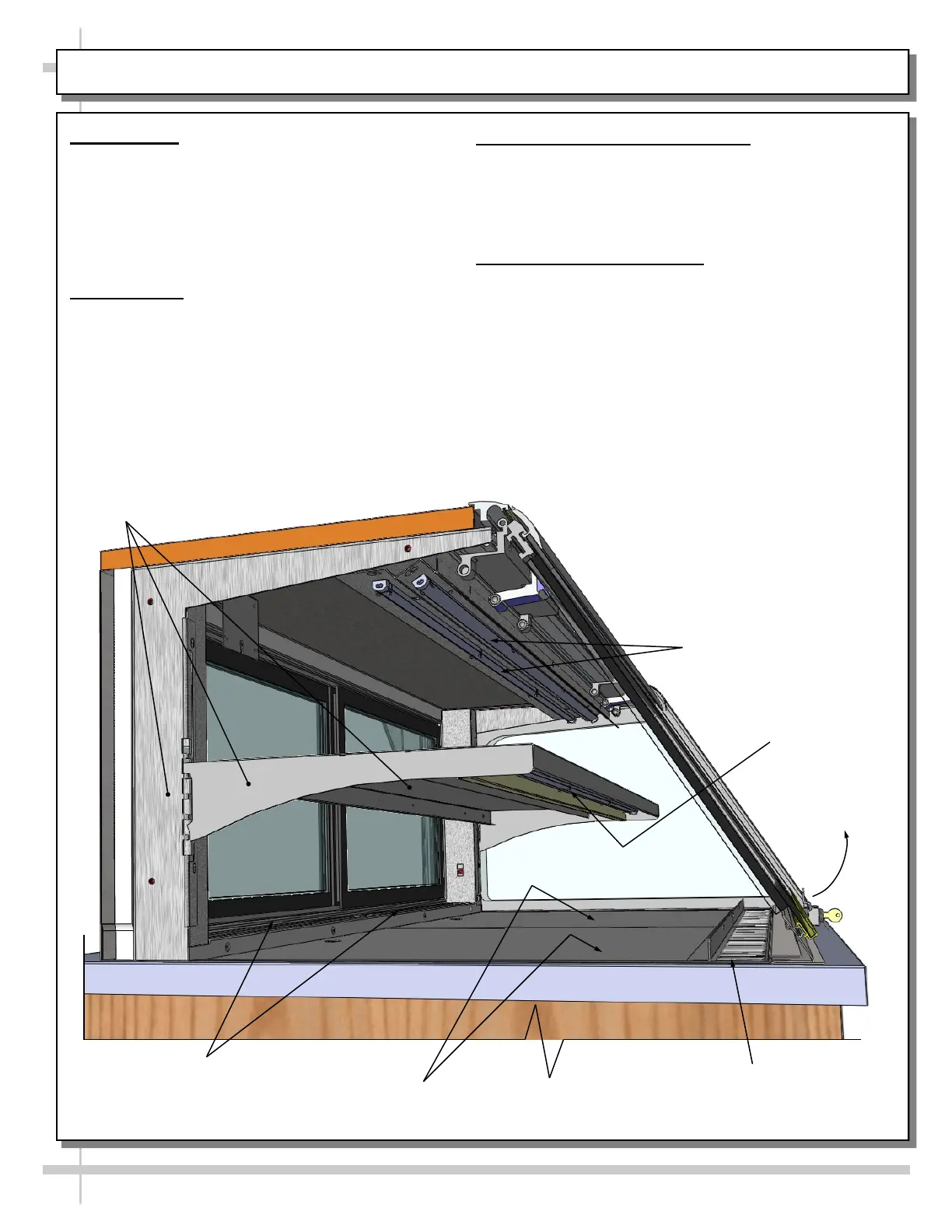

MODEL CDR5745A (SERVICE CASE ONLY) - OVERVIEW OF LED LIGHTS / AIRFLOW / SHELVING

1. LED Lights

• Model CDR5745A has LED lights only).

• Lights may be removed for replacement.

• See LED LIGHT REMOVAL/REPLACEMENT,

PLUG/CORD POSITIONING, PROPER PLUG

INSERTION section in manual for specifics on

care and maintenance.

2. Front Glass

• Front glass may be raised for cleaning or

servicing.

3. Shelf and Bracket is Adjustable

• As illustrated below, shelf can be adjusted (up or

down).

• Slots in upright allow brackets to be raised or

lowered.

4. Air Discharge / Air Return

• As shown below, air discharge is at case rear.

• Air return is at front of case.

Upper Section

LED Lights

Lower Section

LED Lights

Air Return

Evaporator Coil, TXV, Fans, Etc.

(Under Decking)

Shelf, Bracket &

Slotted Upright

Front Glass

May Be Raised

Air Discharge
