REAR SLIDING DOORS / REAR LEDGE

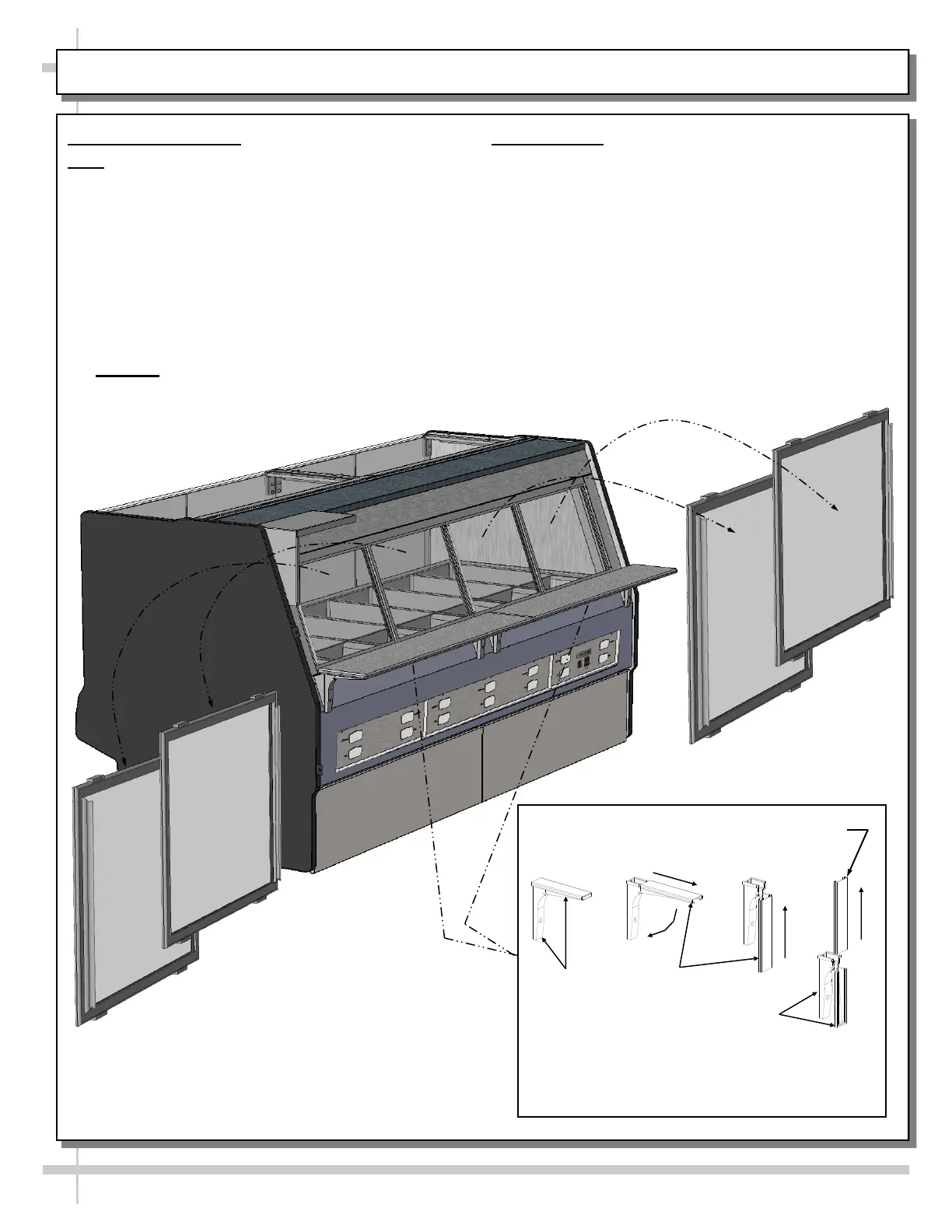

1. Rear Sliding Doors

Note: Rear sliding doors are not interchangeable.

There is an inner and outer door. The outer door must

be removed first and replaced last.

• The outer door, is the right hand door (from the

service side/rear of case). It can be identified by a

stop located at the lower right hand corner to the

inside of the case.

• Move the doors toward the center of the case.

• Individually lift each door up toward the top of the

case and pivot the bottom of the door out.

• Reverse to reinstall.

• Caution: Gently set doors down to avoid

marring, scraping, scratching or breakage.

Hinged

Support

Bracket

Shelf

Track

Hinged

Support

Bracket

-1- -2- -3- -4-

Shelf Track

—— Rear Ledge Removal Steps ——

Note: For clarity, only Shelf Track is shown being

removed. Rear Ledge is attached to Shelf Track.

2. Rear Ledge

Rear Ledge is connected to shelf track. Illustrations

at right reflect step-by-step removal method (as

enumerated below).

1. Hinged Support Bracket is shown in

its standard upright position.

2 & 3. While upright, Rear Ledge must be

slid away from case and then rotated downward to

vertical position.

3 & 4. From the shelf’s lowered position, lift from

bottom edge upward to disengage shelf track

(and attached Rear Ledge) from bracket.
