REFRIGERATION LINES / STUB-UPS / DRAINS (REMOTE UNITS ONLY)

1. Refrigration Line Stub-Up Connections

• Refrigerant stub-up access is at underside of

case.

• Stub-up connections are accessed by removing

front or rear panel (no screws required).

• Run case-to-case connections through cutouts in

base.

• Sweat the high and low pressure connections.

• Fill access hole with suitable filler to insure

watertight integrity of tub.

• Note: Illustration below may not reflect every

feature or option of your particular case.

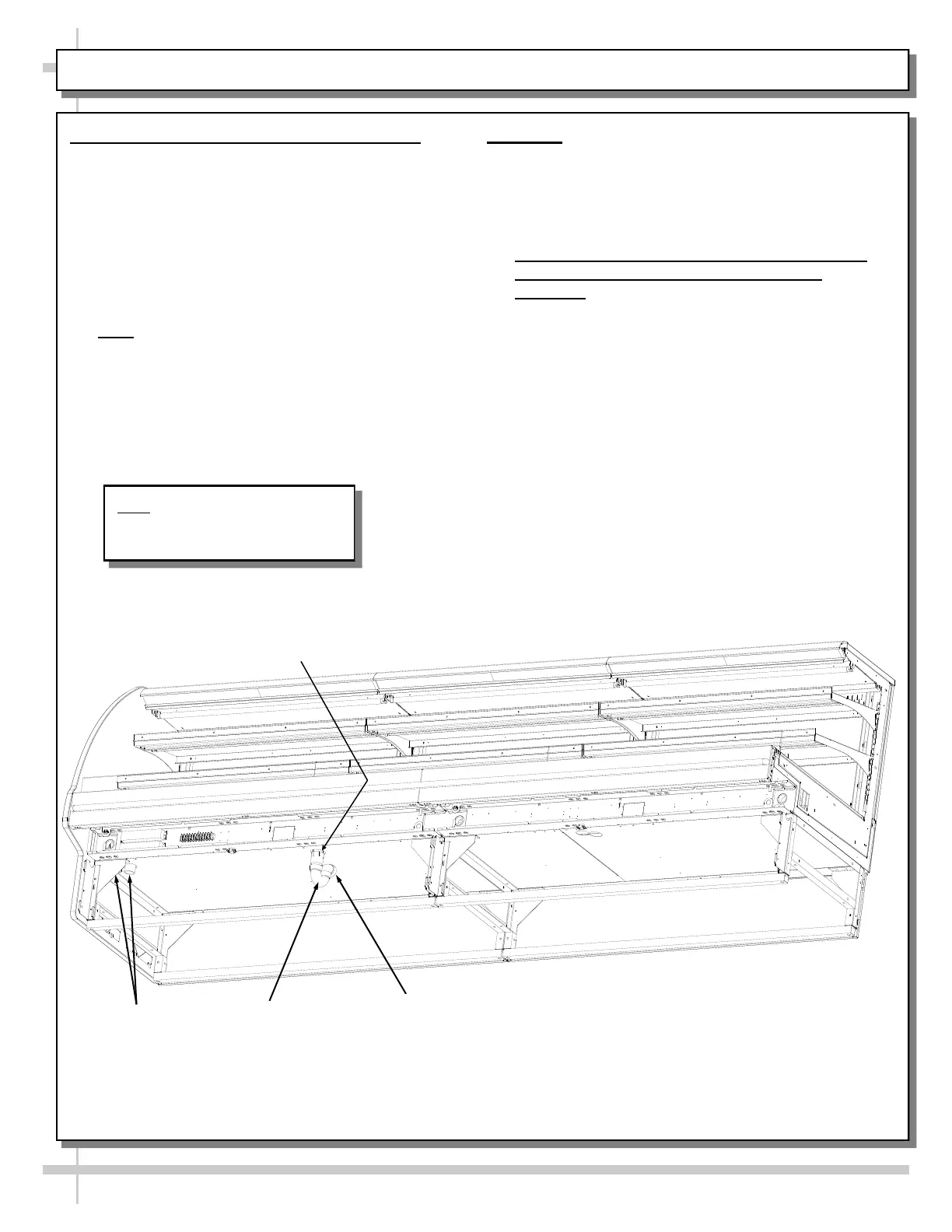

Refrigeration

Line Stub-Ups

Access

Field Connection

for Drain

Model GMSS1252R is Shown Above.

Your Case May Differ.

P-Trap

2. Drains

• Depending upon model, cases have drains at left

and right hand sides.

• Model shown below (GMSS1252R) has a single

drain (as shown below).

• Drain field connection is as shown below. See

MAINTENANCE FUNDAMENTALS - DRAIN /

SHUT-OFF VALVE / BALANCE VALVE

ACCESS section in this manual for illustration of

Balance Valve, Shut-Off Valve, Drain,

Refrigeration Line Stub-Ups Access, etc.

• Depending upon drain access needs, either front

or rear panel may be removed to gain access to

drain stub-up.

• 1.5” male PVC stub-up connection is under case.

• Connect tub drain to floor drain. Maintain

1/4”-fall per foot to provide proper drainage.

Drain

Note: Illustration shown may not

exactly reflect every feature or

option of your particular case.
