MAINTENANCE FUNDAMENTALS, CONT’D: EVAP. FANS, REFRIG. LINES, TXV & DRAIN ACCESS

Refrigeration

Lines Route

Drain

Evaporator Fans

(Typical)

Refrigeration Line

Valve

Balance

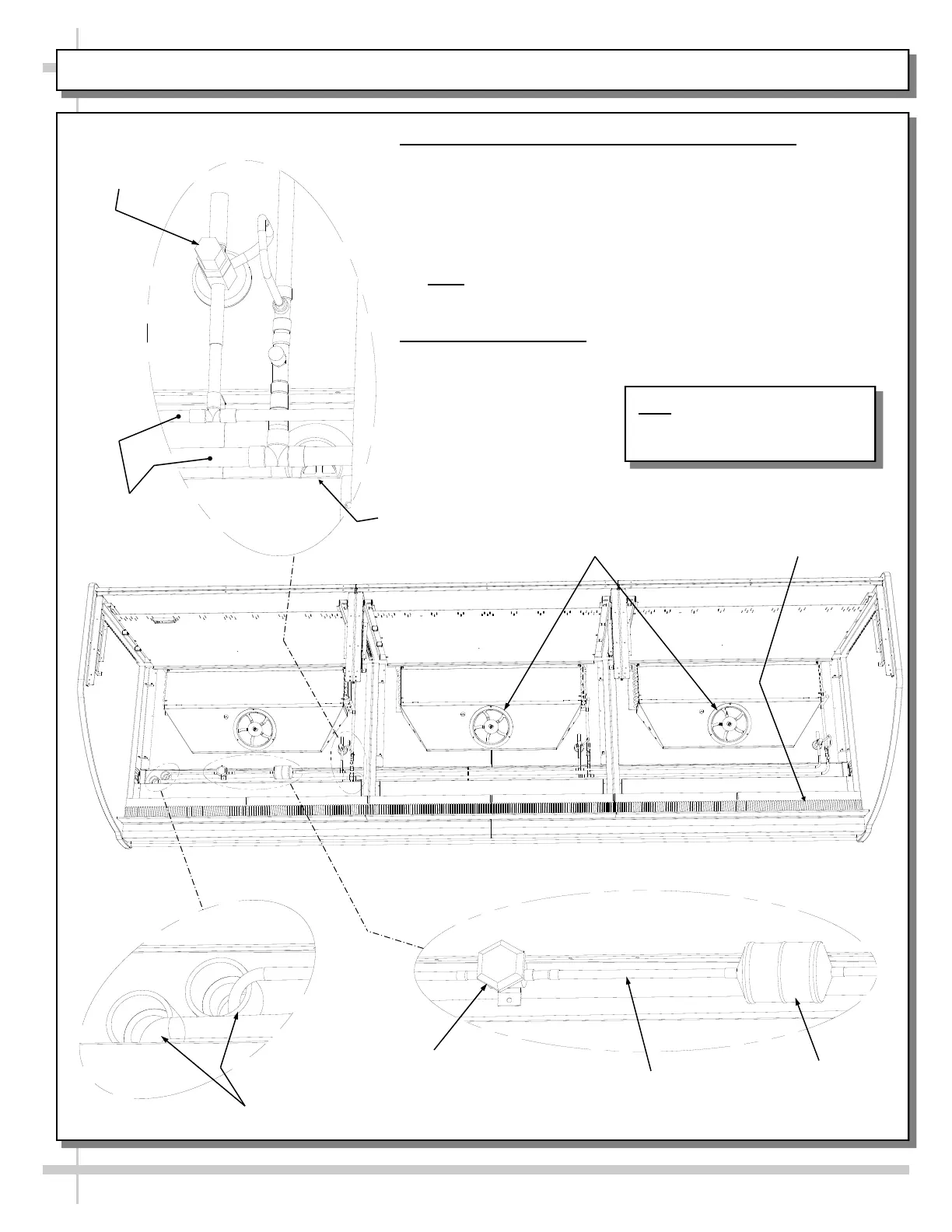

2. Evaporator Fan, Shroud, TXV, Drain, Access

• Caution! Turn main power switch off and/or disconnect from

outside power source.

• Remove decking and sub-deck

• Perform maintenance, service or cleaning as required.

• Return decking and sub-deck to unit in reverse order in which

they were removed.

• Note: Model GMSS1252R is illustrated below. Your case may

not exactly reflect every feature option as unit shown.

3. Front Air Discharge

• Do not set product or utensils on air discharge.

• Proper airflow and

temperature will be

compromised if airflow

is blocked.

• See illustration below.

TXV

(Typical)

Refrigeration

Lines

Filter

Dryer

Do Not Block Front

Air Discharge!

Note: Illustration shown may not

exactly reflect every feature or

option of your particular case.
