CONDENSER PACKAGE (SELF-CONTAINED UNITS ONLY): MODEL GMSS852R

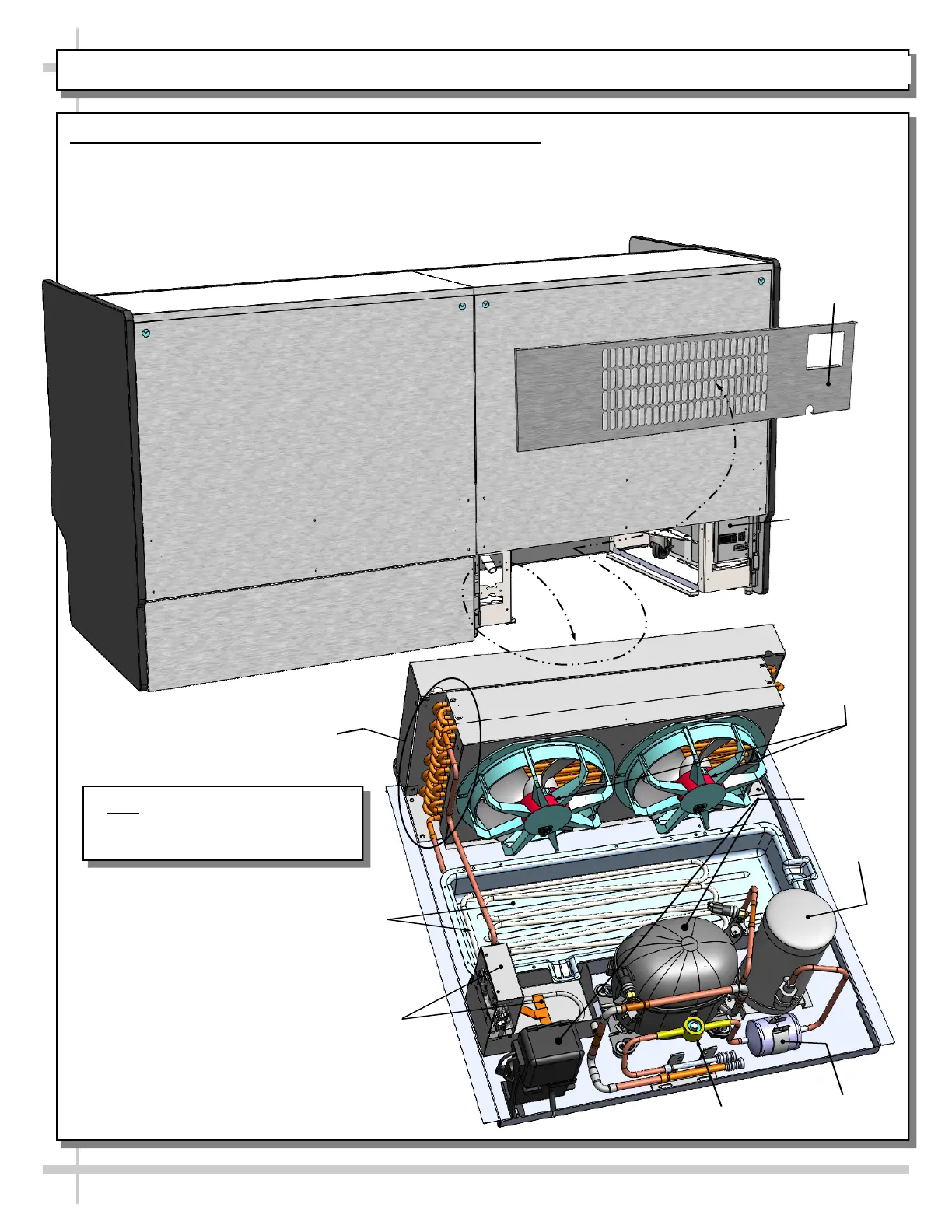

Condenser Package (Self-Contained Model GMSS852R)

• Illustration below shows rear grille removed; also condenser package is removed & rotated for viewing.

• Condenser package is accessible ONLY at case rear. At initial access, remove shipment screws.

• Caution! Only authorized refrigeration contractors should access condenser package!

Condenser

Fans

Condenser Coil

Compressor

& Controller

Sight Glass

Overflow Pan With

Electric Heater Rod

Filter Dryer

Receiver

Condensate Pan With

Hot Gas Serpentine Coil

Controller /

Electrical Box

Rear Grille

Note: Model GMSS852R (shown)

may not exactly reflect every feature

or option of your particular case.
