MAINTENANCE FUNDAMENTALS, CONT’D: SHELF ASSEMBLY & UNDER CASE CLEANING

4. Shelf Assembly Removal

• Remove and set aside metal shelves.

• For lighted shelving, unplug the light cord and

detach from the rear shelf support.

• Slide light assembly back to unlock, then rotate

up to separate from brackets.

• Slide rear support back to unlock and rotate up to

separate from brackets.

• Remove brackets. Note: It may be necessary

to remove the bracket retainer. Pliers will be

required to accomplish this task; pull bracket

retainers out of upright toward front of case.

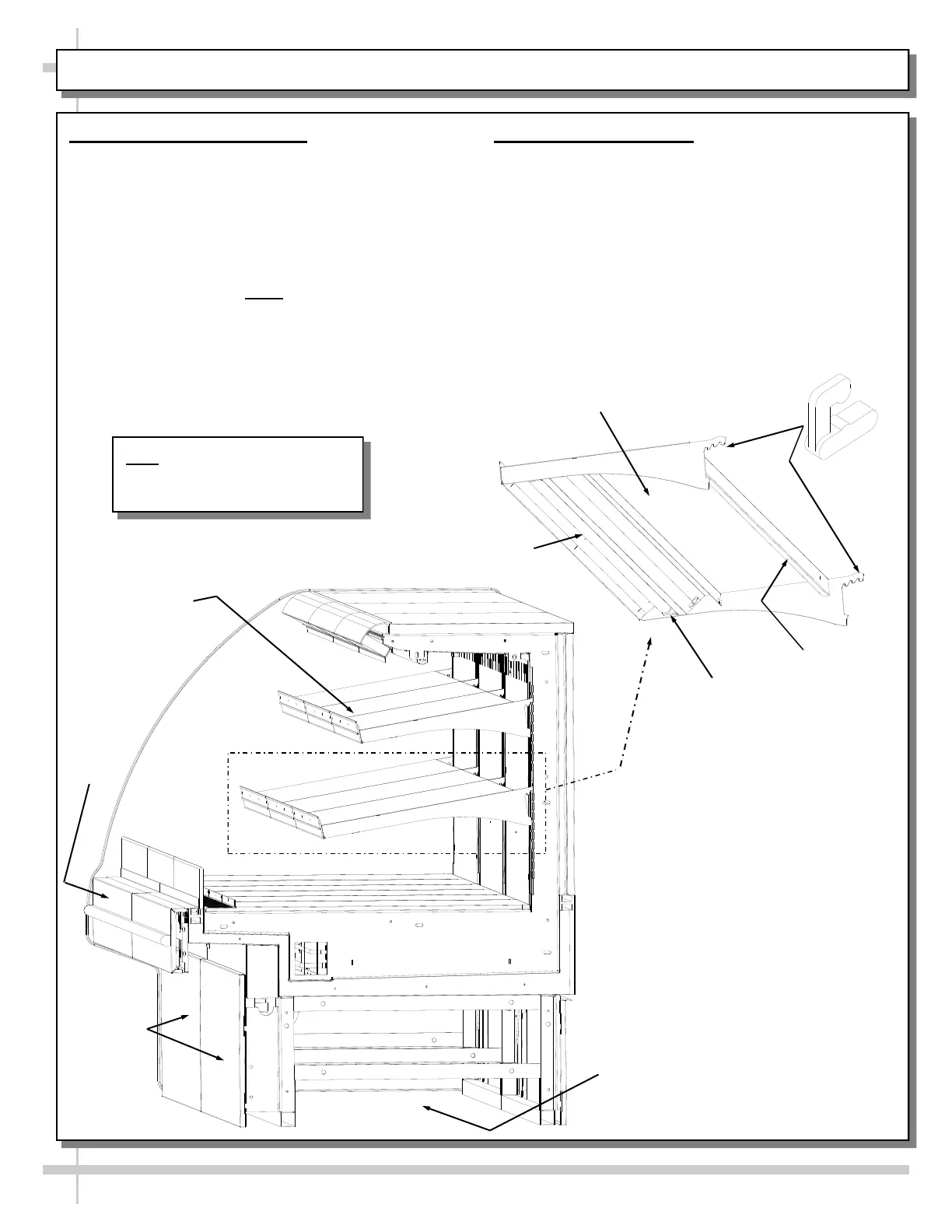

Shelf

Bracket Retainer

(one for each shelf)

Rear Rack

Support

Bulb

Front

Toe-Kick

Shelf (Typ.)

Light

Assembly

Front

Panel

(Typ.)

Under-Case

Cleaning

5. Under Case Cleaning

• Sufficient under case cleaning is accessible by

hand or 1-1/2 inch diameter cleaning tool such as

a vacuum hose.

• Extensive cleaning can be done by removing the

front panel and / or the rear toe-kick.

See MAINTENANCE FUNDAMENTALS section

in manual (under Light Ballast Access/Removal)

for in depth instructions on removing front panel.

Note: Illustration shown may not

exactly reflect every feature or

option of your particular case.
