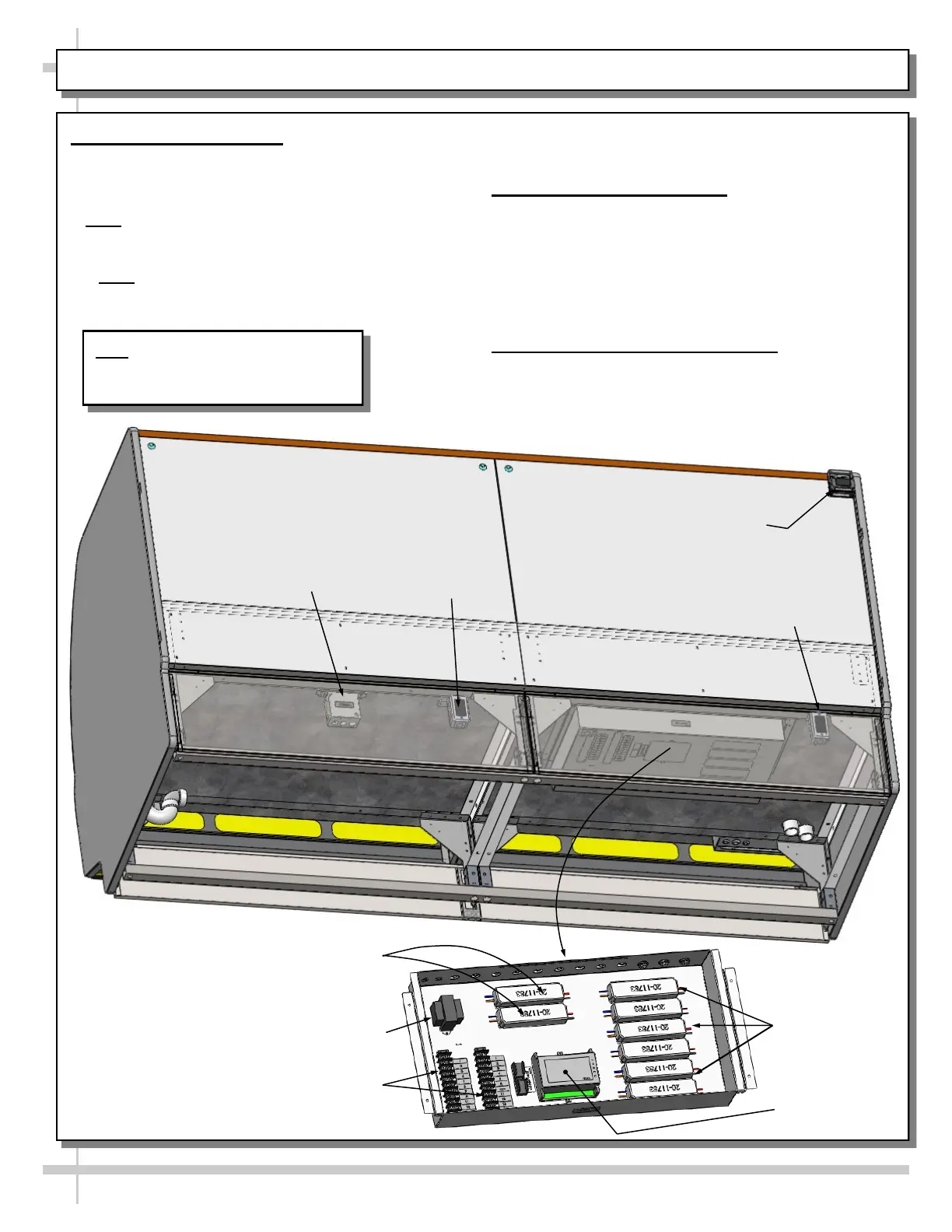

FIELD ACCESS BOX / ELECTRICAL COMPONENTS / PROGRAM. CONTROLLER, ETC. - GMSSEH852R

1. Electrical Connections

Field Access Boxes, Electrical Outlets, LED

Drivers, Circuit Board, Transformer, Terminal

Strips, Programmable Controller, Etc.

> Note: Rear panel is shown transparent.

• Access to field access box is at case rear with

rear panel removed (no screw removal required).

• Note: Wiring process must be performed by

certified electrician only.

• When case is properly field-wired, it will energize

(no main power switch required).

2. Programmable Controller

• Programmable controller is in the pull-out

electrical box (accessible at case rear).

• Programmable controller’s display is also at

case rear (as shown below).

• See your particular programmable controller

operating instructions for more information.

3. Model Illustration Compatibility

• Model shown is GMSSEH852R.

• Your model may slightly differ.

4 x 4 Field

Access Box

2 x 4 Outlet

Thermostat

Display

Transformer

LED Drivers

(Typical)

T-Blocks

Programmable

Controller

LED Drivers (Typical)

Note: Model GMSSEH852R (shown)

may not exactly reflect every feature

or option of your particular case.
