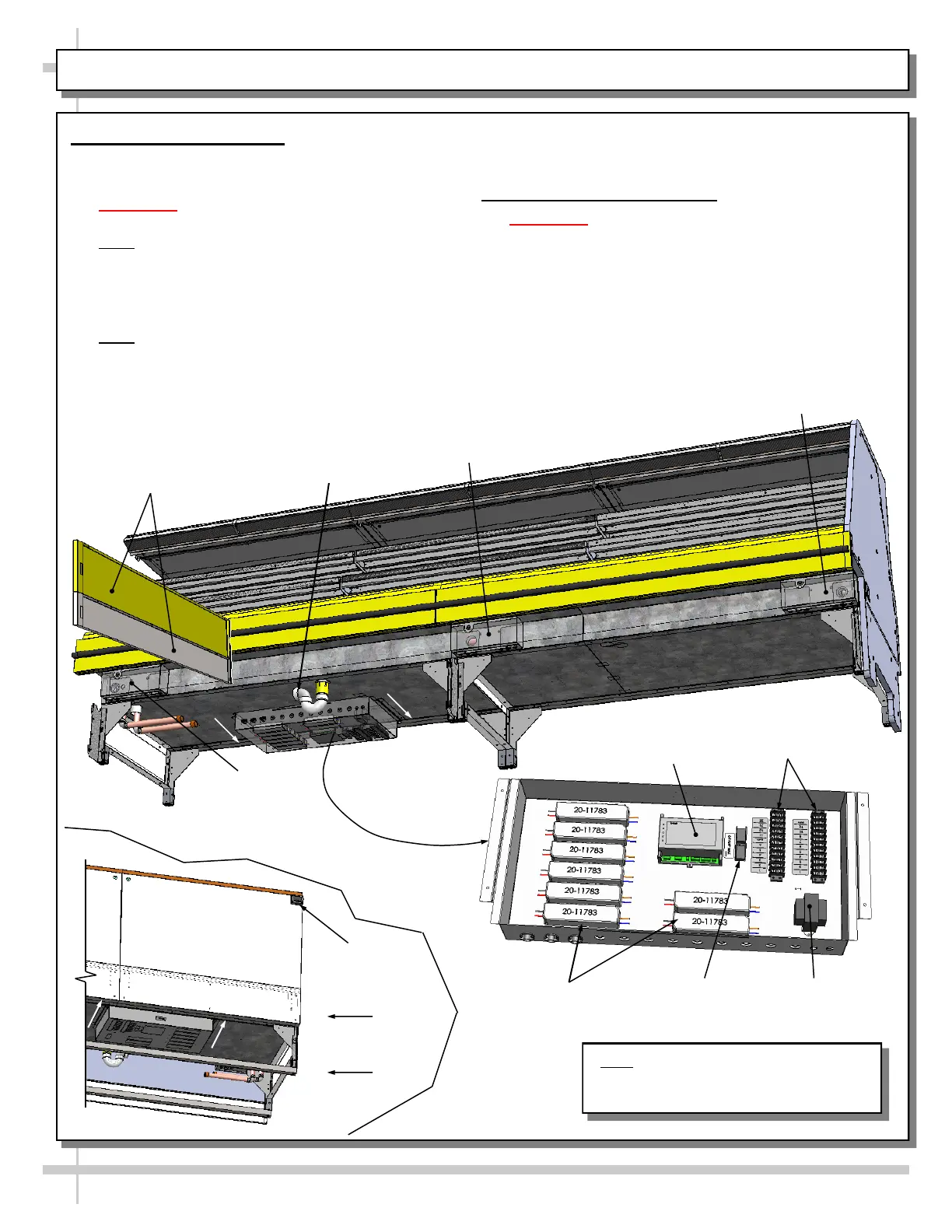

FIELD ACCESS BOX / ELECTRICAL COMPONENTS / PROGRAM. CONTROLLER, ETC. - GMSSEH1252R

1. Electrical Components

Field Access Box, LED Drivers, Circuit Board,

Transformer, Fuse Block, Terminal Strips, Etc.

• Important: Wiring process must be

performed by certified electrician only!

• Note: Front panel is shown lifted up and off (no

screw removal required).

• Access to field access box is at case rear with

rear panel removed after screw removal (as

shown in lower-left breakaway illustration).

• Note: Wiring process must be performed by

certified electrician only.

Front Panel With Slots

For Hooks (Typical)

Raceway

(Left)

• When case is properly field-wired, it will energize

(no main power switch control required).

2. Programmable Controller

• Important: Wiring process must be

performed by certified electrician only!

• Programmable thermostat is in the pull-out

electrical box (accessible at case rear).

• Programmable thermostat display is also at case

rear (as shown below).

• See your particular programmable controller

operating instructions for more information.

Raceway

(Center)

Raceway (Right)

Field Connection

for Drain

Transformer

LED Drivers

(Typical)

T-Blocks

Temperature

Controller

Fuse

Block

Thermostat

Display

Case

Rear

Case Front Shown Below

Note: Model GMSSEH1252R (shown)

may not exactly reflect every feature or

option of your particular case.
