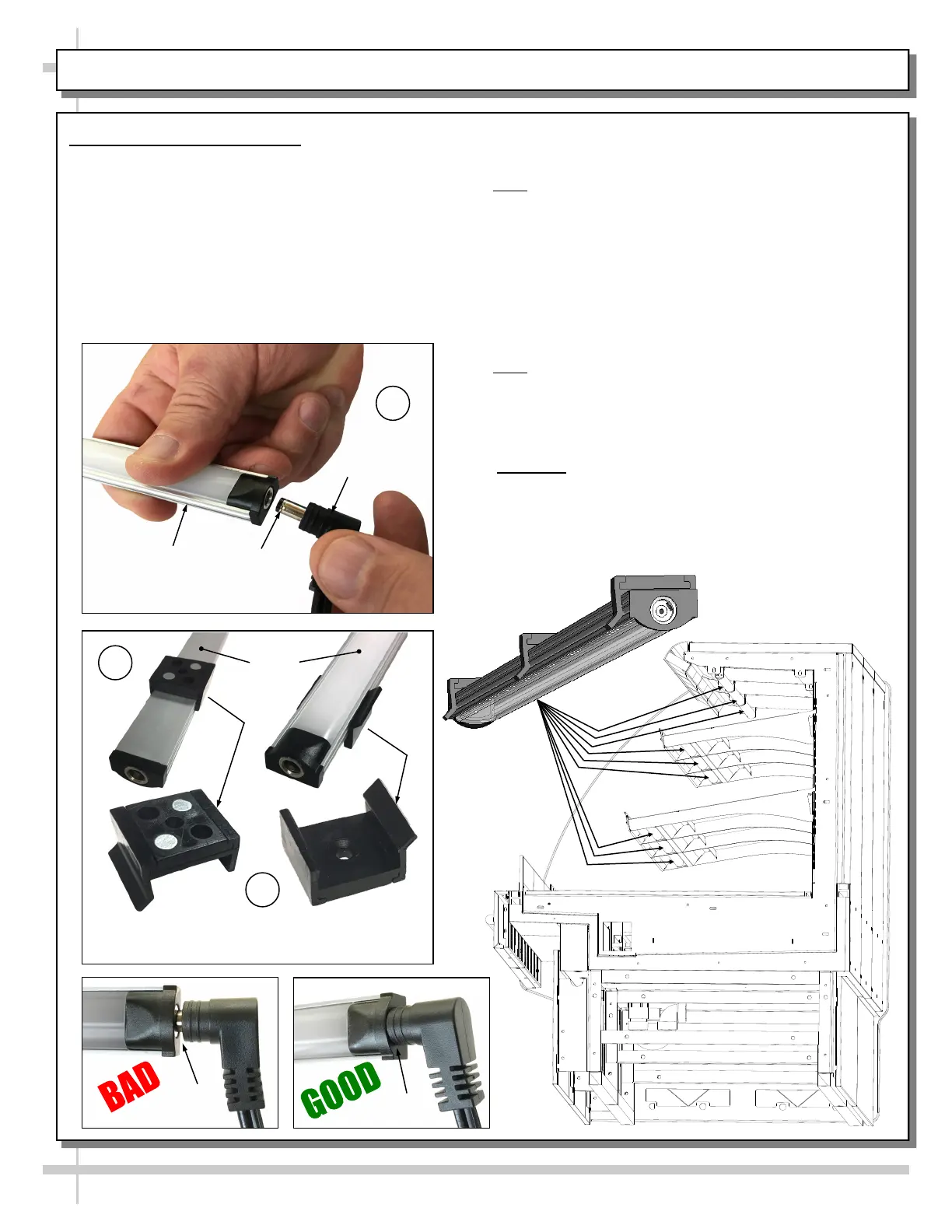

MAINTENANCE FUNDAMENTALS: LED LIGHT FIXTURES

1. LED Style Light Fixtures

Removal of Faulty LED Lights:

• LED lights rarely require change-out.

• Contact Structural Concepts’ Technical Service

Department for replacement LED lights.

• Turn off LED light switch.

• To remove faulty LED light, follow these steps:

A. Disconnect plug from LED light.

B. Using both hands, grasp LED light assembly

(with its magnetic mounting clips). Pull

downward and off its shelf (or header).

C. Remove magnetic mounting clips from LED light by

pressing against flange part of clip with thumb.

>> Note: Mounting clips MAY be riveted to shelf or header.

In such instances, simply remove LED light from mounting

clips by pressing against flange part of clips with thumb.

Replacement of LED lights:

• Attach magnetic mounting clips onto LED light.

• Adjust magnetic mounting clips so they are equally

spaced on LED light.

• Reattach LED light assembly to its shelf/header.

• Position properly in shelf/header.

>> Note: If mounting clips are riveted to shelf (or header),

attach by placing LED in base of clip and then snapping

into clip at FLANGE SIDE.

• Press plug’s barrel-shaped insert all the way into LED

light.

• Important: If plug is not inserted ALL THE WAY IN the

LED light’s orifice, the light may not energize. See

“BAD” vs. “GOOD” insertion illustrations below.

• Turn LED light switch back on.

Magnetic

Mounting Clip View #2

LED

Lights

Plug

Barrel

Shaped

Insert

LED

Light

Magnetic

Mounting Clip View #2

No Gap

Gap
